4K30 4x4 HDMI seamless matrix switcher with Video wall EDID

inquiry

4X4 4K HDMI Seamless Matrix Switcher Introduction

4X4 4K HDMI Seamless Matrix Switcher is a new fixed HDMI matrix switcher series with the seamless switch, Video Wall function, EDID management, audio breakouts and the resolution can up to 4K30Hz with scaling funtion and all ports are HDCP compliant. 4X4 4K HDMI Seamless Matrix Switcher with the friendly user control methods: IR remote control, 2-Press push buttons with background blue light, WEB GUI/TCPIP/RS232/IR remote control, 4X4 4K HDMI Seamless Matrix Switcher supports the WEB smart EDID management, 4X4 4K HDMI Seamless Matrix Switcher can work with the Blu-Ray Players, Set-Top boxes, Home Theater, and game consoles etc HDMI input sources to route to the HDMI displays, 4X4 4K HDMI Seamless Matrix Switcher has been widely used in different audio visual applications.

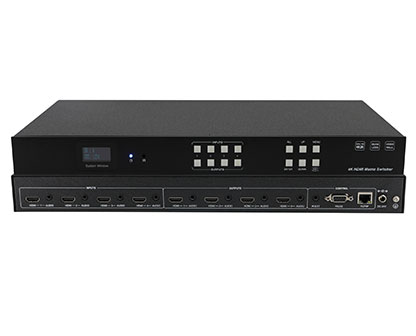

4X4 4K HDMI Seamless Matrix Switcher pictures

  • seamless-and-video-wall-4K30-HDMI-matirx-switcher
  • 4K30-HDMI44-matrix-switcher-with-seamless
  • HDMI-matrix-switcher-with-4K30-seamless-and-video-wall
  • seamless-and-video-wall-4K30-HDMI-matirx-switcher



  • 4X4 4K HDMI Seamless Matrix Switcher Features

    · The resolution can up to 4K@30Hz inputs and outputs with scaling

    · Supports seamless switching, no black/blue screen during the sources switch

    · Supports the video wall function and bezel corrections

    · Supports the 3.5mm audio embedded and de-embedded

    · Supports smart EDID management

    · Supports RS-232 and TCP/IP Control(WEB GUI), IR remote control

    ·Supports up to 20 scenes



    4X4 4K HDMI Matrix Switcher Technical Parameters

    Tyoe FIX-SVM-400-4K30
    Description 4X4 4K30 HDMI matrix switcher
    Video
    Input Resolution UHD(3840x2160)/30Hz and under
    Output Resolution 4K@30\1080P\720P\1366*768@60
    Protocol     HDMI 1.6 , HDCP 1.4
    Color depth and space
    8/10/12 bit, YCbCr,RGB
    EDID Built-in and output ports learning/copy
    Input
    4xHDMI
    Output
    4xHDMI
    Audio
    Audio format
    PCM 2.1Ch, Dolby Digital, Dolby True-HD, DTS-HD(Only supports 2.1)
    Audio sampling
    32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
    Audio baud rate
    Up to 16~24-bit
    Control
    RS232
    DB9 female connector
    IR
    IR receiver
    LAN
    RJ45 for the TCP/IP control
    Other
    Power Supply Power adapter 24V/3A
    Consumption 20W
    Dimension 440*215*44mm
    Weight 3kg
    Power Supply DC:24V /3A
    Consumption
    20W
    Working Humidity
    20%-90%
    Working Temperature 0℃-50℃
    Storage Temperature ﹣20℃-60℃

    4X4 4K HDMI Seamless Matrix Switcher Packing list

    No.

    Name

    Qty

    Unit

    1

    SVM-MANAGER-400-4K30

    1

    Pcs.

    2

    DC 12V2A power adapter

    1

    Pcs

    3

    IR Remote(without battery)

    1

    Pcs


    4X4 4K HDMI Seamless Matrix Switcher Connection Diagram


    Connection-Diagram-for-4K30-HDMI-matrix-switcher
