4K60 HDMI 4x4 Matrix Switcher with Audio IR Remote RS232 Control

This is a new series of the fixed 4K60 HDMI2.0 Matrix Switcher, with 4 in and 4 out. Every HDMI input and output supports 1080p full HD plus 3D formats and up to 4K60 with HDCP2.2 compliant on all ports.

inquiry

4K60Hz 4X4 HDMI Matrix Switcher demo video


4K60Hz 4X4 HDMI Matrix Switcher Introduction

This is a new series of the fixed 4K60 HDMI2.0 Matrix Switcher, with 4 in and 4 out. Every HDMI input and output supports 1080p full HD plus 3D formats and up to 4K60 with HDCP2.2 compliant on all ports. It can work with Blu-Ray players, Set-Top boxes, Home Theater PCs, and game consoles which connect to an HDMI display. Supports independent EDID management. Supports RS-232 serial port commands, infrared remote control and front push-button switching. Supports the audio de-embedding with independent switching from all the 4 inputs. This is lite 4K60 matrix switcher can be widely used for home theater, small meeting room, etc.

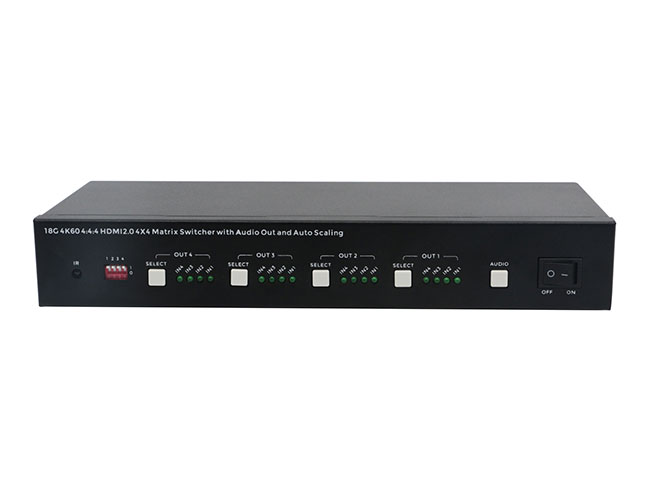

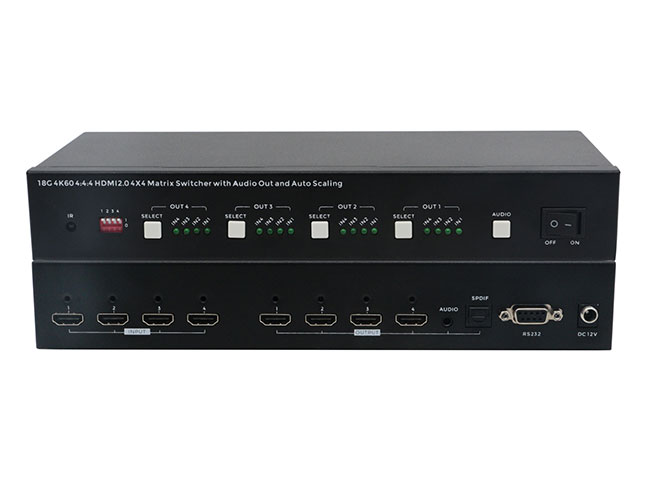

4K60 4x4 HDMI Matrix Switcher pictures

  • 4K60-444-HDMI-4x4-Matrix-Switcher-with-IR-Remote-RS232-control2
  • 4K60-444-HDMI-4x4-Matrix-Switcher-with-IR-Remote-RS232-control22
  • 4K60-444-HDMI-4x4-Matrix-Switcher-with-IR-Remote-RS232-control222
  • 4K60-444-HDMI-4x4-Matrix-Switcher-with-IR-Remote-RS232-control2222



  • 4K60 4x4 HDMI Matrix switcher Features

    · 4 HDMI2.0 inputs and 4 HDMI2.0 outputs

    · Support 1 audio(3.5mm and SPDF) de-ebmedded with independent switching

    · Supports HDMI2.0, HDCP2.2

    · The resolution can up to 4K@60Hz 4:4:4

    · Deep Color support 48/36/30/24-bit

    · Supports IR remote and RS232 commands control

    · Supports smart EDID management by front 4-PIN DIP switch

    · LITE chassis for small space application, rack ears are available

    4K60 4x4 HDMI Matrix switcher Technical Parameters

    Tyoe LITE-FIX-MANAGER-400-4K60
    Control

    Infrared remote control, RS232 serial command and front buttons

    Input

    4*HDMI, 1*RS-232(control)

    Output

    4*HDMI, 1*3.5mm, 1*SPDIF audio out

    Standard Protocol Supports HDMI1.4 and HDCP1.4
    Resolution

    1920X1080,1920X2160,4K30,4K60

    ESD Protection

    Human-body Model:  ± 8kV (Air-gap discharge), ± 4kV (Air-gap discharge)

    Weight 940g/4.41Lbs
    Size

    280 mm (W)*118 mm (D)*44 mm (H) / 11x4.65x1.73 Inch

    Power Supply

    12 V/1.5 A DC (US/EU standards, CE/FCC/UL certified)

    Power consumption 5W
    Working Temperature

    0 ºC~40 ºC/32 ºF~104 ºF

    Storage Temperature

    −20 ºC~60 ºC/−4 ºF~140 ºF

    4K60 4x4 HDMI Matrix switcher Packing list

    No.

    Name

    Qty

    Unit

    1

    LITE-FIX-MANAGER-400-4K60

    1

    Pcs.

    2

    DC 5V2A power adapter

    1

    Pcs

    3

    Remote Control(without battery)

    1

    Pcs

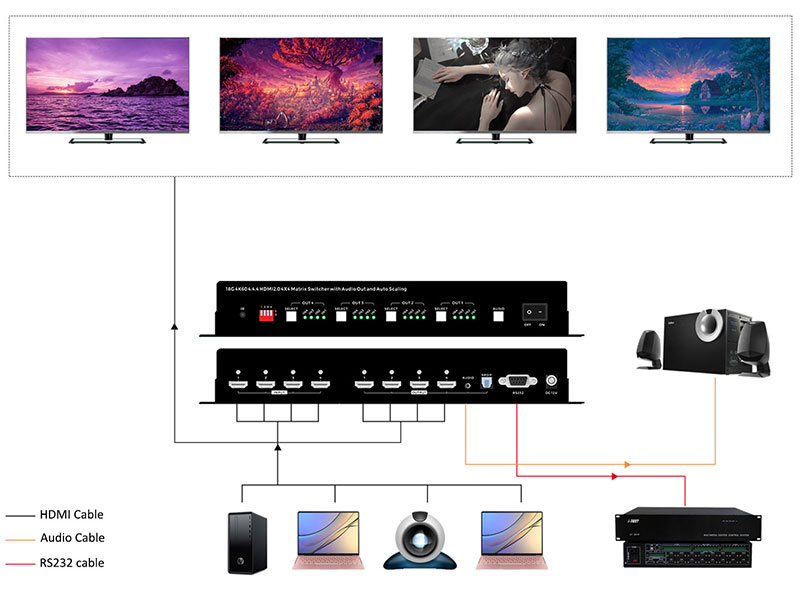

    4K60 4x4 HDMI Matrix switcher Connection diagram


    4K60-444-HDMI-4x4-Matrix-Switcher-with-IR-Remote-RS232-control-connection
