2K KVM AV over IP HD Matrix VideoWall 1080PDecoder and Encoder

This is a 1080P60Hz HD over IP system, have Encode&Decode integrated into one device, any of the unit can be used as the encoder or decoder, supports POE function and also the DC power supply

inquiry

Product details

1080P KVM AV Over IP System demo

1080 KVM AV over IP system Introduction

This is a 2K60 HD over IP system, have Encode&Decode integrated into one device, any of the unit can be used as the encoder or decoder, supports POE function and also the DC power supply, supports IR learning/sending, two-way audio transmission, RS232/485, I/O and other functional interfaces; With the no server needed technology, any failure of any units in the system will not affect the operation of the whole system, it’s widely improving the system stability. This system can be widely used in command centers, conference rooms, smart campuses, smart parks, etc.

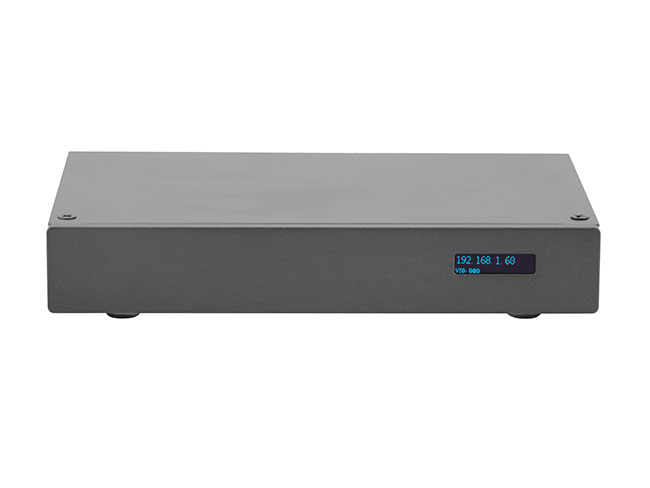

1080 KVM AV over IP system pictures

2K KVM AV over IP HD Matrix VideoWall 1080PDecoder and Encoder

1080 KVM AV over IP system Features

· 2K60Hz- distributed input and output over AV over IP system

· No server or control box needed in the system

· Encoder and decoder are the same device, set by a DIP switch

· Supports resolution down/up scaling

· Supports Video Wall control with up to 8-windows per screen

· Supports KVM workstation with mouse&keyboard control

· Supports input sources preview and output preview

· Supports seamless switch

· Supports control UI customizing

· Supports audio embedded and de-embedded

· Supports RS232, I/O, relay, RS485 control

· Supports background image and scrolling text, etc function

· Supports workstations content push and talking etc

1080 kVM AV over IP systemTechnical Parameters

Encoder&Decoder

Input Video Port	1*HD with one HD loop
Video Output	1*HD
Input Resolution	Up to 1920X1080@60Hz
Output Resolution	Up to 1920X1080@60Hz
Audio Input	1*3-PIN phoenix connector
Audio Output	1*3-PIN phoenix connector
Latency	45ms-90ms
Control ports	RS232
IP ports	1*LANRJ45
PoE	Support standard PoE function
USB	2*USB-A, female
Power consumption	<10W
Product dimension	160mm102mm26mm
Weight	0.7KG

1080 AV KVM over IP Decoder packing list

No.

Name

Qty

Unit

1

IPX-1000

1

Pcs.

2

DC 12V2A power adapter

1

Pcs

3

Phoenix Connectors

4

Pcs

1080 AV KVM over IP Decoder Connection diagram

2K KVM AV over IP HD Matrix VideoWall 1080PDecoder and Encoder
