This 4K60 4:4:4 AV over IP system provide the flexible, powerful, and scalable solution at resolutions up to 3840 x 2160@60Hz 4:4:4. They allow 4K UHD sources to be switched and distributed over standard gigabit Ethernet networks, providing complete end-to-end streaming systems. Audio, video together with IR, and USB signals can be routed separately or as a whole throughout the matrix system. Encoders can be used with decoders to function video wall up to 16 x 16. Both of them have the capacity to handle and output up to 7.1 channel audio, allowing you to enjoy the finest sound. HDCP 2.2 compatible. The distance can up to 330ft (100m) over a single Cat 5e cable or above. Flexible control options are offered -- Windows PC Console, App or WEB GUI control. They are the perfect solution for any low latency and signal routing applications. Common applications include homes, classrooms, conference rooms and broadcasts.
+

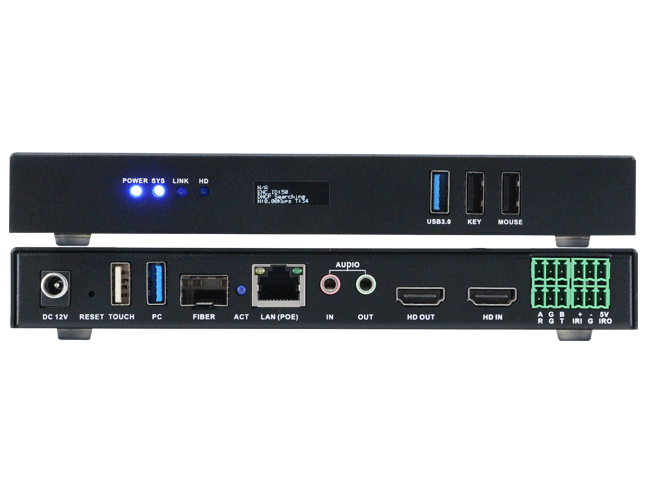

This is a 4K60 HDMI over IP system, have Encode&Decode integrated into one device, any of the unit can be used as the encoder or decoder, supports 2*3.5mm audio in&out, 5*USB ports for Keyboard&Mouse/Host/Touch/USB pen drive, 1*RS232, 1*RS485, 1*Relay and 1*Bi-directional IR central control interfaces; Support Fiber or LAN ports transmission, this distance can up to 150m over CAT6 or 2km over Fiber, supports POE function and DC power supply. The front panel LCD screen can showing the model/ID/IP/Status which is easier for installation settings.
+

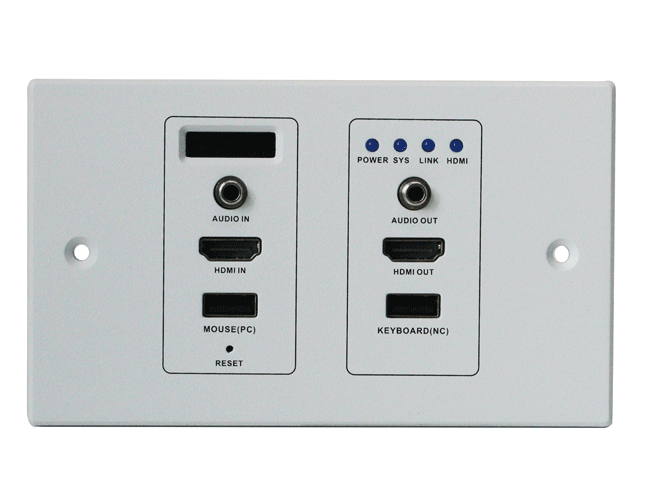

This a Wallplate panel 4K HDMI over IP Matrix, Video Wall and Multiview system, the transmitter and Receiver is same unit, it can be switched/defined by the PC software to work either as encoder or as decoder which can provide more application flexibilities and save the costs. On the front panel with a LCD screen to show name, IP address and version info, it will be super helpful when do the system settings. With both DC and POE power supply to provide the installation easier, when set the unit working as Encoder, it will can support 1 HDMI loop out with 3.5mm audio embedded and de-embedded, support the Keyboard and mouse transmission.
+
This a 1080P HDMI over IP Matrix, Video Wall system, The encoder(IPM-915T) and decoder(IPM-915R) can work together to provide complete end-to-end streaming system or it can work with the network switch to realize a one to many, many to one and many to many systems.
+
This a 1080P HDMI over IP Matrix, Video Wall system, The encoder(IPM-915T) and decoder(IPM-915R) can work together to provide complete end-to-end streaming system or it can work with the network switch to realize a one to many, many to one and many to many systems.
+

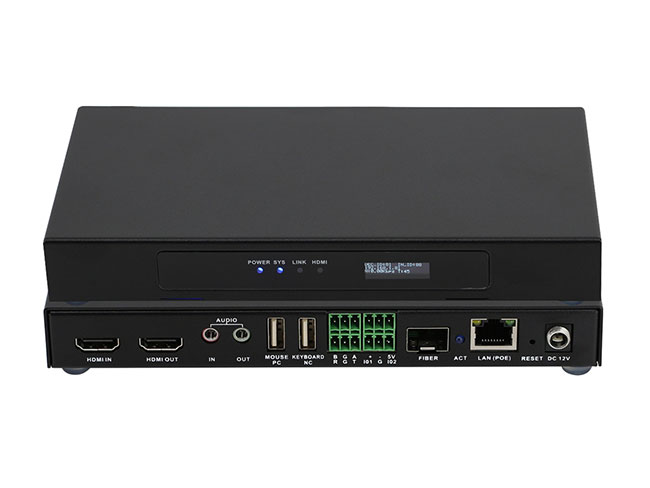

This is a 4K30 HDMI over IP system, have Encode&Decode integrated into one device, any of the unit can be used as the encoder or decoder, supports 2*3.5mm audio in&out, 2*USB ports for Keyboard&Mouse/Host, 1*RS232, 1*RS485, 1*Relay and 1*I/O central control interfaces; Support Fiber or LAN ports transmission, this distance can up to 150m over CAT6 or 2km over Fiber, supports POE function and DC power supply. The front panel LCD screen can showing the model/ID/IP/Status which is easier for installation settings.
+

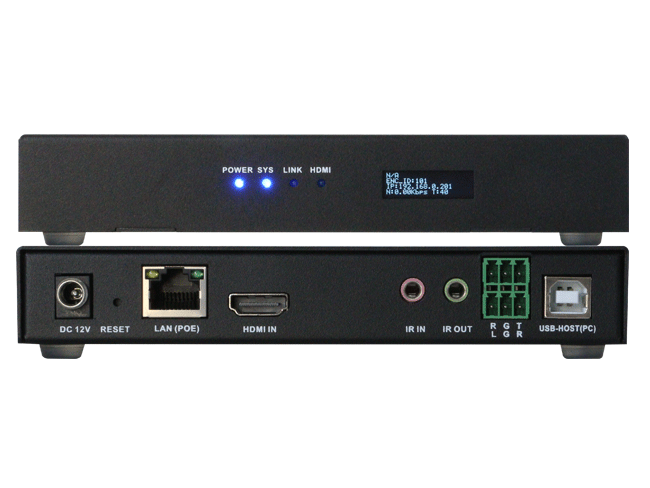

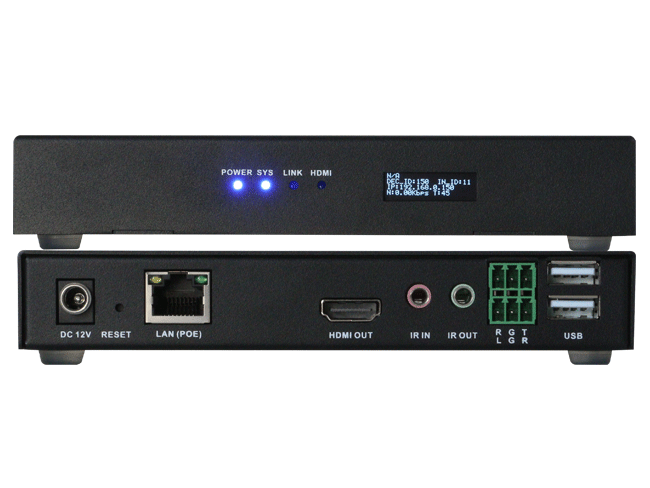

The 4K AV over IP encoder(IPM-925T) and AV over IP decoder(IPM-925R) can work together to provide complete end-to-end streaming system or it can work with the network switch to realize a one to many, many to one and many to many systems.
+
KVM &USB over IP Extender uses Gigabit IP network technology to process and distribute 4K ultra-high-definition video signals, and at the same time send the mouse and keyboard control signals from the receiver to the transmitter to realize the KVM extension function.
+
KVM &USB over IP Extender uses Gigabit IP network technology to process and distribute 4K ultra-high-definition video signals, and at the same time send the mouse and keyboard control signals from the receiver to the transmitter to realize the KVM extension function.
+
