AV over IP System Decoder HDMI KVM over IP matrix Fiber Extende

KVM &USB over IP Extender uses Gigabit IP network technology to process and distribute 4K ultra-high-definition video signals, and at the same time send the mouse and keyboard control signals from the receiver to the transmitter to realize the KVM extension function.

inquiry

AV KVM Over IP Decoder Demo Video


AV KVM over IP Decoder Introduction

KVM &USB over IP Extender uses Gigabit IP network technology to process and distribute 4K ultra-high-definition video signals, and at the same time send the mouse and keyboard control signals from the receiver to the transmitter to realize the KVM extension function.
KVM & USB extension Supports point-to-point/1TX to multipleRX over gigabit PoE switch , and can also support multi-slave control of a host's networking. This product can extend the KVM and USB signal transmission distance to 20 kilometers through the cascaded network extension of multi-level switches.
KVM over IP extender Resolution supports 4K@30Hz 4:4:4, Ultra HDMI is completely lossless, low latency, support full-format HDMI audio, fully meet the audio-visual needs of high-end customers. Gigabit switch is recommended.
This product can also be customized to support the transmission of serial signals, infrared signals, and audio signals to meet the needs of customers with various complex networking and combined functions.

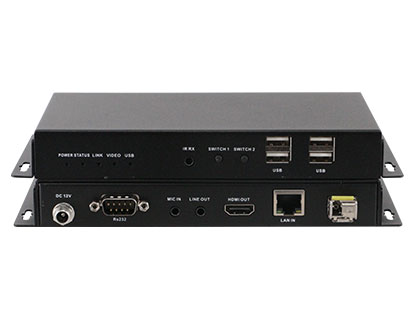

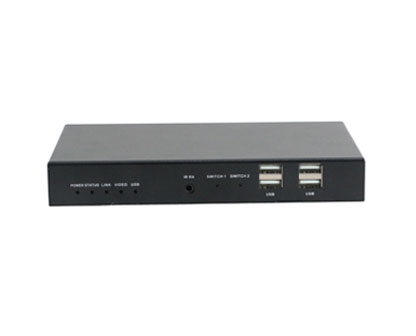

AV KVM over IP Decoder pictures

  • AV-over-IP-System-Decoder-HDMI-KVM-over-IP-matrix--Fiber-ExtendeRX
  • AV over IP System Decoder HDMI KVM over IP matrix Fiber Extende
  • AV-over-IP-System-Decoder-HDMI-KVM-over-IP-matrix--Fiber-ExtendeRX
  • AV-over-IP-System-Decoder-HDMI-KVM-over-IP-matrix--Fiber-ExtendeRX



  • AV KVM over IP Decoder Features

    · KVM over IP/Fiber extender

    · Resolution support maximum 4K@30Hz 4:4:4

    · Support mouse and keyboard signal extension

    · Support full function USB signal extension

    · Support HDMI audio 2CH / 5.1CH / 7.1CH / DTS / Dolby format

    · Support PoE power supply (802.3AF) , easy for construction and strong system robustness

    · KVM and USB extension Supports point-to-point/1TX to 253RX over gigabit PoE switch

    ·Point-to-point transmission up to 150M over CAT5e

     ·Low latency <50ms

    AV KVM over IP Decoder Technical Parameters

    Tyoe IPF-900R
    Input 1×LAN, 1×Fiber
    Output 1×HDMI, 4×USB, 1×3.5mm
    Standard Protocol Supports HDMI 1.4 and compatible HDMICP 1.4
    Resolution Up to 4K@30Hz
    Bandwidth 10Gbps
    Distance Point-to-point: up to 150m through CAT5e/CAT6
    Cascade: distance up to 20 kilometers
    Dimension 152*95*27(mm)(Tx/Rx)/ 5.98*3.74*1.06(inch)
    Weight 400g(Tx/Rx) 0.88lbs
    Power Supply AC:100-240V 50/60Hz 1.5A Max  DC:12V 1500mA
    Power consumption 5W
    Working Temperature 0℃-50℃
    Storage Temperature ﹣20℃-55℃

    AV KVM over IP Decoder packing list

    No.

    Name

    Qty

    Unit

    1

    IPF-900R

    1

    Pcs.

    2

    DC 12V2A power adapter

    1

    Pcs

    3

    IR Remote(without battery)

    1

    Pcs


    AV KVM over IP Decoder Connection diagram
