This 4K60 4:4:4 AV over IP system provide the flexible, powerful, and scalable solution at resolutions up to 3840 x 2160@60Hz 4:4:4. They allow 4K UHD sources to be switched and distributed over standard gigabit Ethernet networks, providing complete end-to-end streaming systems. Audio, video together with IR, and USB signals can be routed separately or as a whole throughout the matrix system. Encoders can be used with decoders to function video wall up to 16 x 16. Both of them have the capacity to handle and output up to 7.1 channel audio, allowing you to enjoy the finest sound. HDCP 2.2 compatible. The distance can up to 330ft (100m) over a single Cat 5e cable or above. Flexible control options are offered -- Windows PC Console, App or WEB GUI control. They are the perfect solution for any low latency and signal routing applications. Common applications include homes, classrooms, conference rooms and broadcasts.
inquiry
This is a 4K30 HDMI over IP system, have Encode&Decode integrated into one device, any of the unit can be used as the encoder or decoder, supports 2*3.5mm audio in&out, 2*USB ports for Keyboard&Mouse/Host, 1*RS232, 1*RS485, 1*Relay and 1*I/O central control interfaces; Support Fiber or LAN ports transmission, this distance can up to 150m over CAT6 or 2km over Fiber, supports POE function and DC power supply. The front panel LCD screen can showing the model/ID/IP/Status which is easier for installation settings.
With the no server needed technology, any failure of any units in the system will not affect the operation of the whole system. it’s widely improving the system stability. This system can be widely used in command centers, conference rooms, smart campuses, smart parks
· 4K60 distributed input and output over AV over IP system
· No server or control box needed in the system
· Encoder and decoder are the same device, set by Windows Software
· Supports resolution down/up scaling
· Supports Video Wall control with up to 9-windows per screen
· Supports KVM workstation with mouse&keyboard control
· Supports input sources preview and output preview
· Supports seamless switch
· Supports control UI customizing
· Supports audio embedded and de-embedded

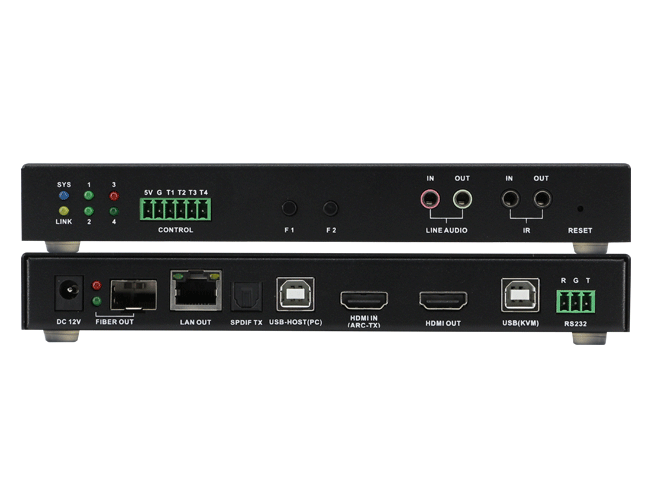

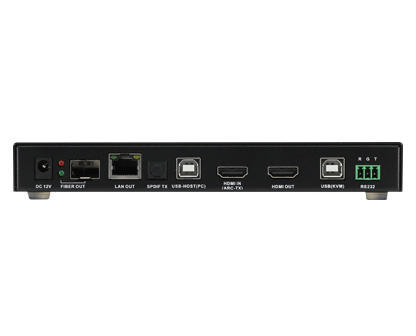

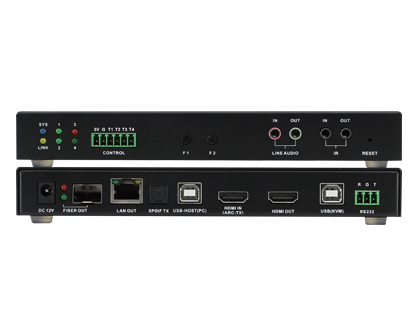

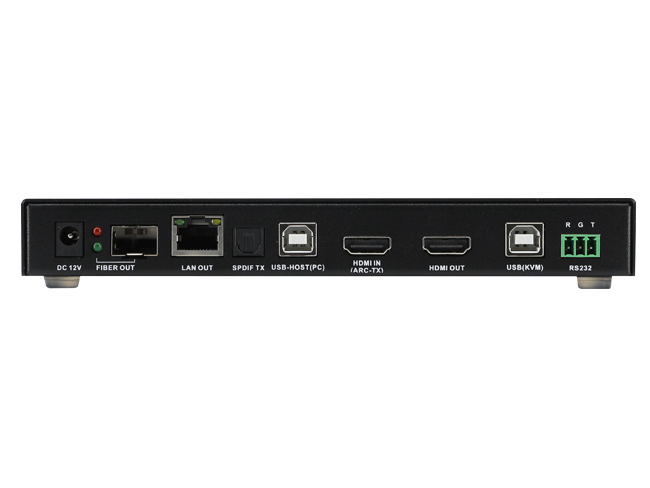

| Back panel | |
| Video Input |
1*HDMI with one HDMI loop |
| Video Output |
1*HDMI |
| Input Resolution |
Up to 3840*2160@60Hz 444 |
| Output Resolution |
Up to 3840*2160@60Hz 444 |
|
Audio Input |
1*3.5mm |
|
Audio Output |
1*3.5mm |
|
Latency |
80ms-120ms |
| Control |
RS232/RELAY/RS-485/IR(fixed 38Khz) |
| IP Ports |
1*LAN, 1*FIBER |
|
POE |
Support standard POE function |
| USB |
5*USB-A(1*USB3.0 pen drive only, 1*USB Keyboard, 1*USB Mouse, 1*TOUCH, 1*PC) |
|
Power |
<10W |
|
Product dimension |
217mm*193mm*25mm |
| Net Weight? | 800g |
Product dimension(mm)
Connection Diagram
