4K30 HDMI KVM over IP System with Video Wall and KVM workstation

This is a 4K30 HDMI over IP system, have Encode&Decode integrated into one device, any of the unit can be used as the encoder or decoder, supports 2*3.5mm audio in&out, 2*USB ports for Keyboard&Mouse/Host, 1*RS232, 1*RS485, 1*Relay and 1*I/O central control interfaces; Support Fiber or LAN ports transmission, this distance can up to 150m over CAT6 or 2km over Fiber, supports POE function and DC power supply. The front panel LCD screen can showing the model/ID/IP/Status which is easier for installation settings.

inquiry

Product details

4K AV KVM Over IP Decoder Demo Video

4K AV KVM over IP Decoder Introduction

With the no server needed technology, any failure of any units in the system will not affect the operation of the whole system. it’s widely improving the system stability. This system can be widely used in command centers, conference rooms, smart campuses, smart parks

4K AV KVM over IP Decoder pictures

4K@30-HDMI-AV-over-IP-System-with-Video-Wall-and-KVM-workstationb

4K@30-AV-over-IP-System-with-Video-Wall-and-KVM-workstation-222

4K@30-AV-over-IP-System-with-Video-Wall-and-KVM-workstation-2222

4K AV KVM over IP Decoder Features

· 4K distributed input and output over AV over IP system

· No server or control box needed in the system

· Encoder and decoder are the same device, set by Windows Software

· Supports resolution down/up scaling

· Supports Video Wall control with up to 16-windows per screen,PIP and POP

· Supports KVM workstation with mouse&keyboard control

· Supports input sources preview and output preview

· Supports seamless switch

· Support the control UI customizing

· Supports audio embedded and de-embedded

· Supports RS232, I/O, relay, RS485 control

· Supports OSD, scrolling text, etc functions

· Supports workstation control remote PCs, video wall etc.

4K AV KVM over IP Decoder Technical Parameters

Decoder

Front panel
Indicators	PWR: power indicator SYS: System indicator LINK: LAN cable connection indicator HDMI: HDMI signal status
OLED Screen	Showing the Model, ID, IP, status
Back panel
Video Input	1*HDMI with one HDMI Loop
Video Output	1*HDMI
Input Resolution	Up to 3840*2160@30Hz
Output Resolution	Up to 3840*2160@30Hz
Audio Input	1*3.5mm LINE In
Audio Output	1*3.5mm LINE Out
Latency	80ms-120ms
Control	1RS232 phoenix connector 1RS485phoenix connector 1Replay phoenix connector 1 I/O phoenix connector
IP Ports	1RJ-45(PoE);1Fiber
USB	2*USB-A ports for Keyboard&mouse or PC host
Power	DC 12V 1.5A
Product dimension	217.2100.525 (LWH)(mm)
Temperature	-20℃~+60℃
Humidity	10-90%
Net Weight?	0.53kg

4K AV KVM over IP Decoder packing list

IPX-925 x1

Power Supply 12V x1

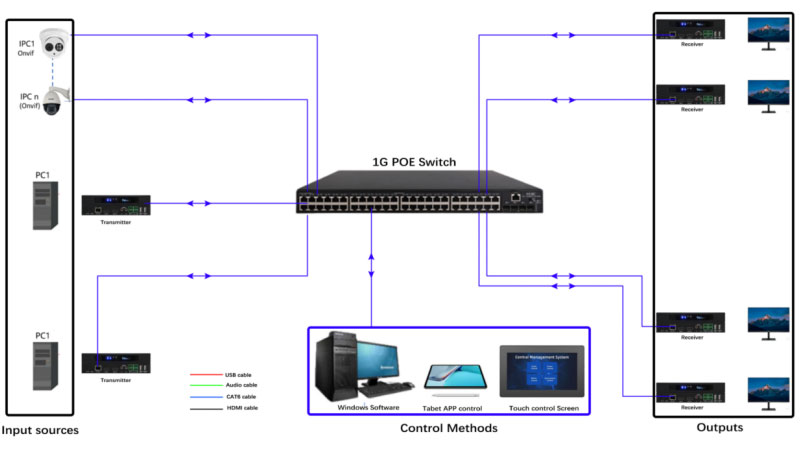

4K AV KVM over IP Decoder Connection diagram

Working as Extender, one to one 4K-AV-over-IP-Decoder-HDMI-Extend-KVM-over-IP-matrix-video-wall-925-Working-as-Extender，-one-to-one

Working as Distribution, one to many 4K-AV-over-IP-Decoder-HDMI-Extend-KVM-over-IP-matrix-video-wall-925-Working-as-Distribution，-one-to-many

Working as Matrix Switcher, Many to Many 4K-AV-over-IP-Decoder-HDMI-Extend-KVM-over-IP-matrix-video-wall-925-Working-as-Matrix-Switcher，-Many-to-Many

Working as Video Wall Processor and Multiviewer 4K-AV-over-IP-Decoder-HDMI-Extend-KVM-over-IP-matrix-video-wall-925-Working-as-Video-Wall-Processor-and-Multiviewer
