Wallplate 4K AV over IP Extender Matrix

This a Wallplate panel 4K HDMI over IP Matrix, Video Wall and Multiview system, the transmitter and Receiver is same unit, it can be switched/defined by the PC software to work either as encoder or as decoder which can provide more application flexibilities and save the costs. On the front panel with a LCD screen to show name, IP address and version info, it will be super helpful when do the system settings. With both DC and POE power supply to provide the installation easier, when set the unit working as Encoder, it will can support 1 HDMI loop out with 3.5mm audio embedded and de-embedded, support the Keyboard and mouse transmission.

inquiry

Product details

Wallplate 4K AV over IP Decoder Demo Video

Wallplate 4K AV over IP Decoder Introduction

This is a 4K30 HDMI over IP system, have Encode&Decode integrated into one device, any of the unit can be used as the encoder or decoder, supports 2*3.5mm audio in&out, 2*USB ports for Keyboard&Mouse/Host, 1*RS232, 1*RS485, 1*Relay and 1*I/O central control interfaces; Support Fiber or LAN ports transmission, this distance can up to 150m over CAT6 or 2km over Fiber, supports POE function and DC power supply. The front panel LCD screen can showing the model/ID/IP/Status which is easier for installation settings.

With the no server needed technology, any failure of any units in the system will not affect the operation of the whole system. it’s widely improving the system stability. This system can be widely used in command centers, conference rooms, smart campuses, smart parks

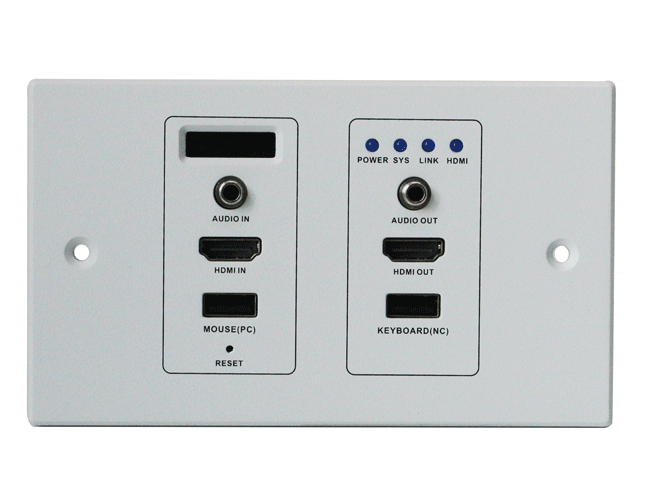

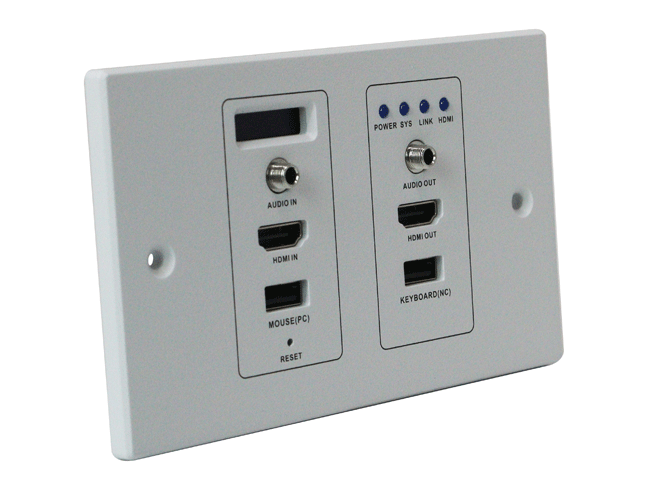

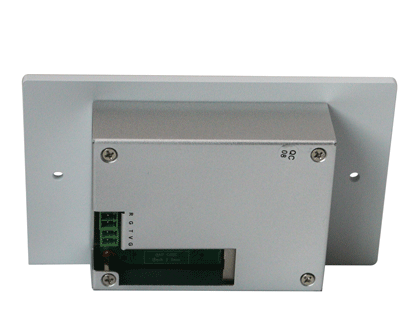

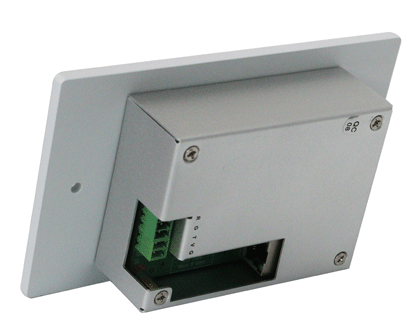

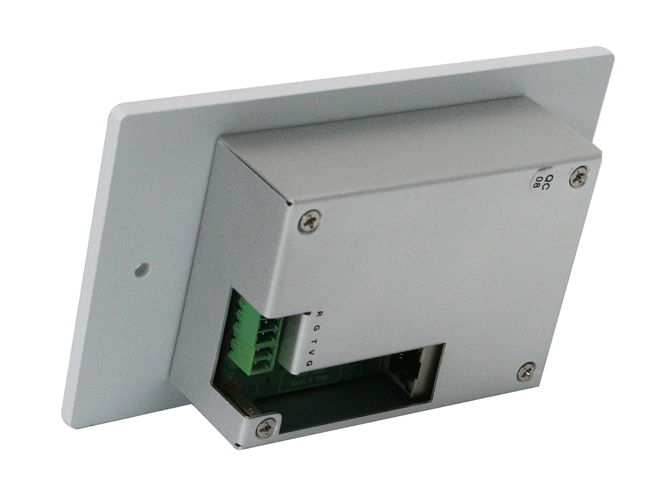

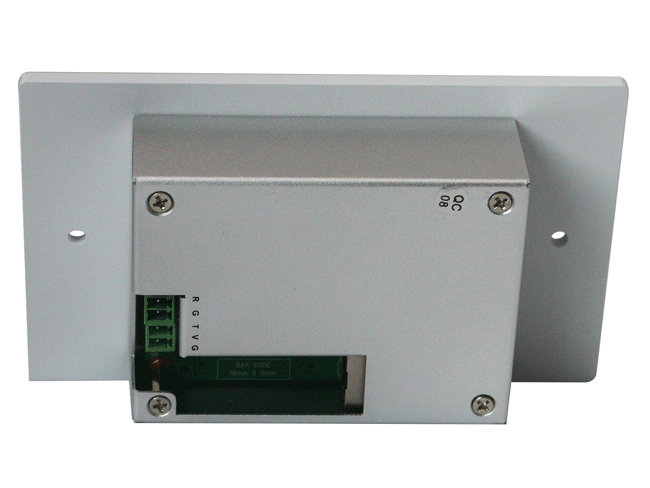

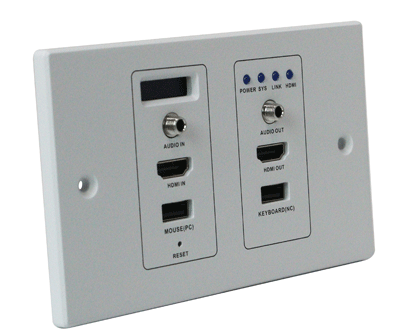

Wallplate 4K AV over IP Decoder pictures

Wallplate 4K AV over IP Decoder Features

· Transmitter and Receiver in one box, switchable by software

· Input and output resolutions are up to 4K30, distance up to 150m

· Auto scaling function from 480p@60Hz to 1080@60Hz

· Support Matrix Switching, Video Wall, multiview and distributions

· Support preview, OSD, EDID management etc functions

· Support to open up to 16-window per screen, but no PIP and POP

· Support POE and DC both power supply

· Support the control UI customizing

· Support Windows software, APP control, no IP control box needed

· Support the Keyboard and mouse transmission, audio in&out

Wallplate 4K AV over IP Decoder Technical Parameters

Decoder

Front panel
Indicators	PWR: power indicator SYS: System indicator LINK: LAN cable connection indicator HDMI: HDMI signal status
OLED Screen	Showing the Model, ID, IP, status
Back panel
Video Input	1*HDMI
Video Output	1*HDMI
Input Resolution	Up to 1080P60
Output Resolution	Up to 1080P60
Audio Input	3PIN IN
Audio Output	3PIN Out
Latency	80ms-120ms
Control	1*RS232 phoenix connector
IP Ports	1*LANRJ45
POE	Support standard POE function
USB	1USB-B(Encoder), 2USB-A(Decoder) female
Power	<10W
Product dimension	155mm95mm25mm
Net Weight?	0.4kg
