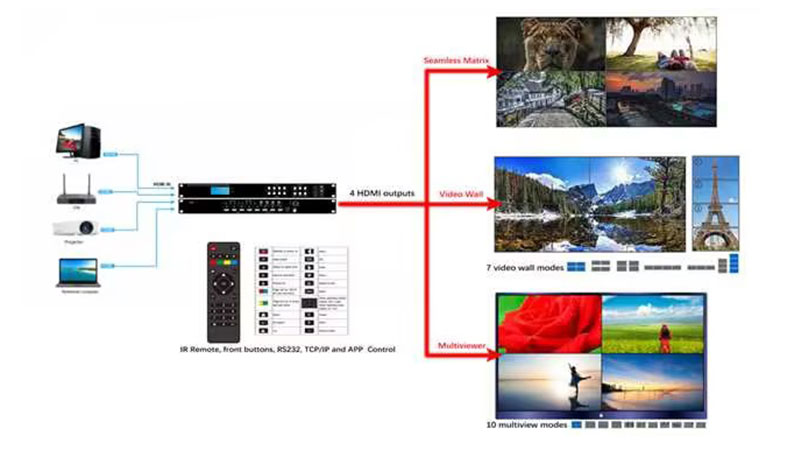

4K Video Wall controller 2x2 with audio out IR remote and push-button control splicing edge adjustment

Web-based Programming Central Control Host

BYOD-2000 is designed for command control center, office and building automation, multimedia environment and home automation, It combined programmable logic and protocol with programmable user interface together, provide full network and intelligent central control technology. It is essential equipment for command center and C'ISR system, it is widely used for administration center, building control, meeting room, training center, exhibition center, industry and home automation.

inquiry

Product details

Web-based Programming Central Control Host demo video

Web-based Programming Central Control Host Introduction

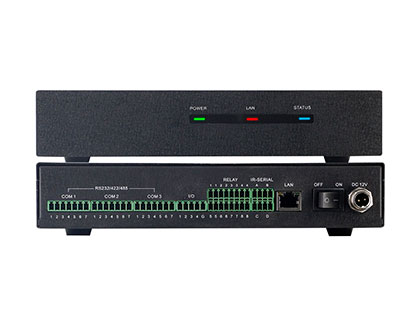

Web-based Programming Central Control Host pictures

Web-based-programming-central-control-host2222

Web-based-programming-central-control-host22

Web-based-programming-central-control-host222

Web-based-programming-central-control-host2

Web-based Programming Central Control Host Features

· Cloud programming without installing software

· Remote debugging

· Neural networks mode to inspect the real time operation

· Sharing resources on cloud platform

· Supports various network control protocols(TCP/UDP/Telnet/Http)

· Supports arbitrary Linux+ platform and is free to migrate

Web-based Programming Central Control Host Technical Parameters

Tyoe	BYOD-2000
CPU	i.MX ARM Cortex-A7 528MHz
Operating system	Linux 4.1.15 kernel
Memory	512M DDR3 RAM
Flash	512M Nand Flash
RELAY	8 - isolated low voltage relay (normally open) 30VDC/AC 1A
I/O	4 - Digital I/O input
INFRARED–SERIAL	4 - infrared or one-way RS-232 serial port
LAN	1 - RJ45 10M/100M Ethernet interface
RST	1 - RST system reset button
LED	3 – LED system status indicator
Power Supply	24VDC 1A
Working Temperature	0 ºC~50 ºC/32 ºF~104 ºF
Relative humidity of working environment	10% to 90%
Size	22022544mm
Weight	N.W: 1.58 kgs G.W.: 2.15kgs
