1080P@60 AV over IP System with Video Wall and KVM

This a 1080P HDMI over IP Matrix, Video Wall system, The encoder(IPM-915T) and decoder(IPM-915R) can work together to provide complete end-to-end streaming system or it can work with the network switch to realize a one to many, many to one and many to many systems.

inquiry

Product details

1080P@60 AV over IP Decoder Demo Video

1080P@60 AV over IP Decoder Introduction

This is a 4K30 HDMI over IP system, have Encode&Decode integrated into one device, any of the unit can be used as the encoder or decoder, supports 2*3.5mm audio in&out, 2*USB ports for Keyboard&Mouse/Host, 1*RS232, 1*RS485, 1*Relay and 1*I/O central control interfaces; Support Fiber or LAN ports transmission, this distance can up to 150m over CAT6 or 2km over Fiber, supports POE function and DC power supply. The front panel LCD screen can showing the model/ID/IP/Status which is easier for installation settings.

With the no server needed technology, any failure of any units in the system will not affect the operation of the whole system. it’s widely improving the system stability. This system can be widely used in command centers, conference rooms, smart campuses, smart parks

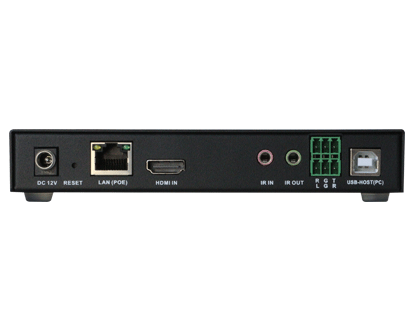

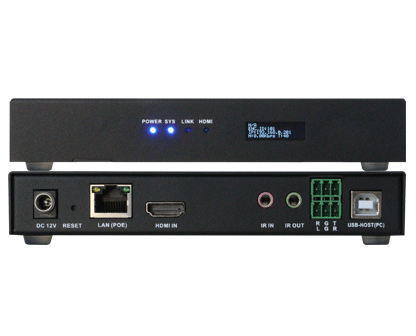

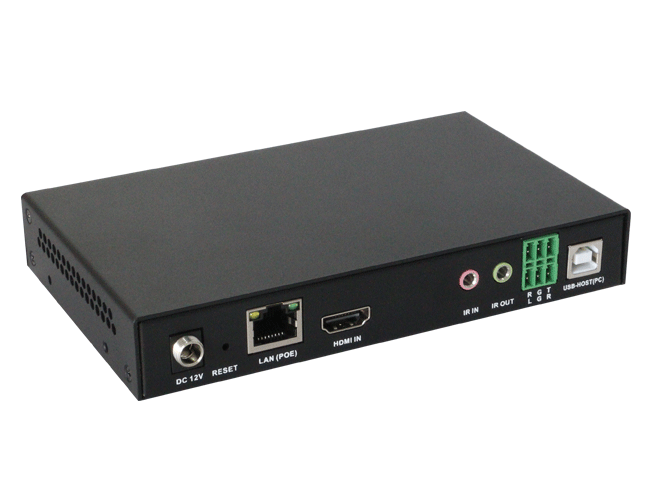

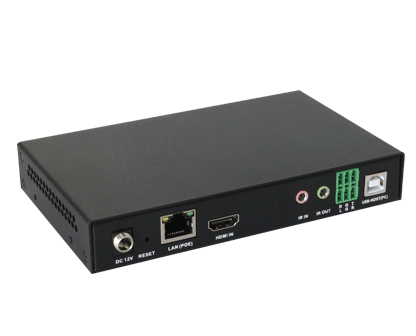

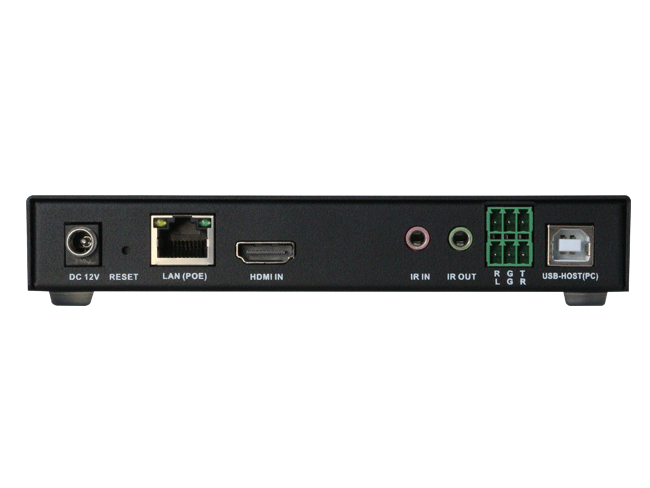

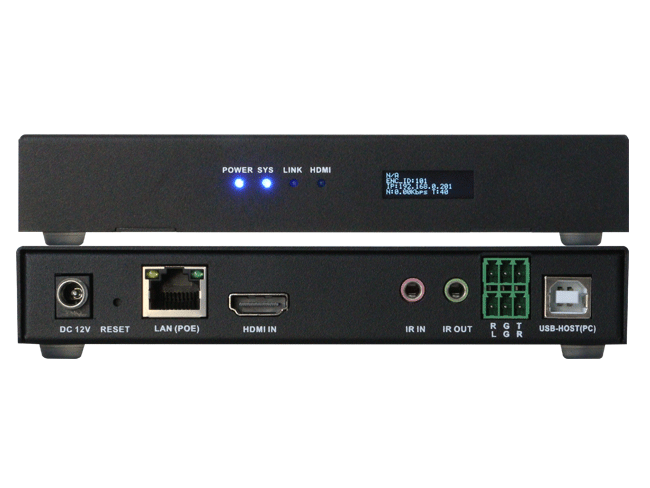

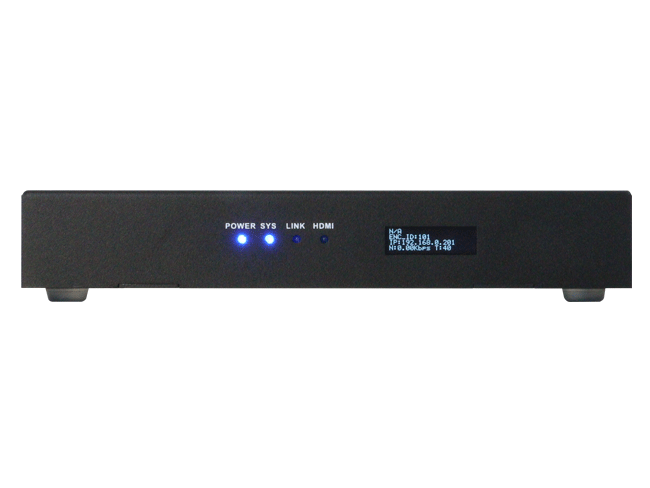

1080P@60 AV over IP Decoder pictures

1080P@60 AV over IP Decoder Features

· Transmits the HDMI&USB over IP

· The resolution can up to 1920 x 1080@60Hz.

· Auto scaling function from 480p@60Hz to 1080@60Hz

· No limitation of the Rx and Tx on this broadcasting system

· No server or control box needed in the system

· Supports resolution down/up scaling

· Supports input sources preview and output preview

· Supports seamless switch

· Supports audio embedded and de-embedded

· Supports the bi-directional IR, USB keyboard&Mouse

1080P@60 AV over IP Decoder Technical Parameters

Decoder

Front panel
Indicators	PWR: power indicator SYS: System indicator LINK: LAN cable connection indicator HDMI: HDMI signal status
OLED Screen	Showing the Model, ID, IP, status
Back panel
Video Input	1*HDMI
Video Output	1*HDMI
Input Resolution	Up to 1080P60
Output Resolution	Up to 1080P60
Audio Input	3PIN IN
Audio Output	3PIN Out
Latency	80ms-120ms
Control	1*RS232 phoenix connector
IP Ports	1*LANRJ45
POE	Support standard POE function
USB	1USB-B(Encoder), 2USB-A(Decoder) female
Power	<10W
Product dimension	155mm95mm25mm
Net Weight?	0.4kg
