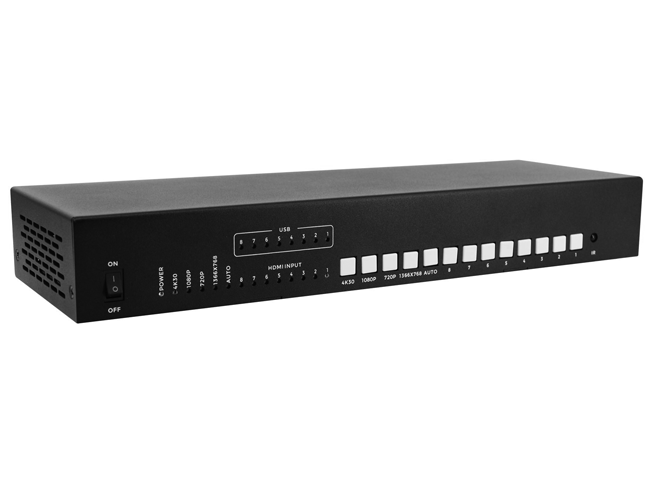

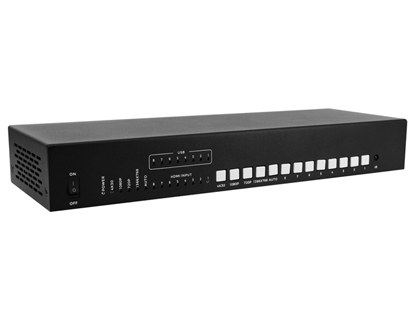

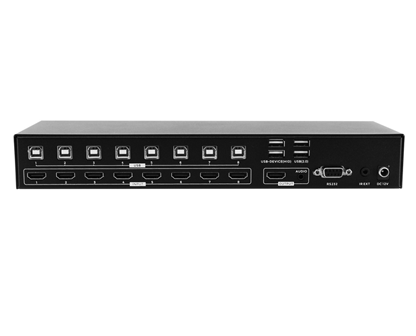

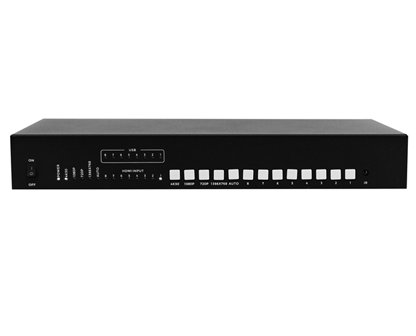

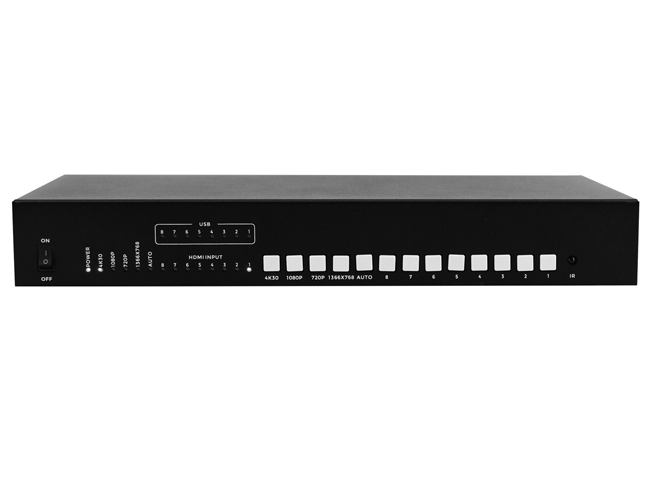

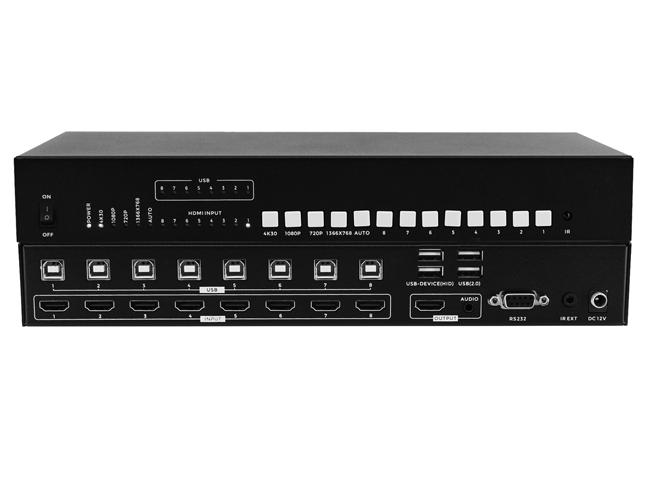

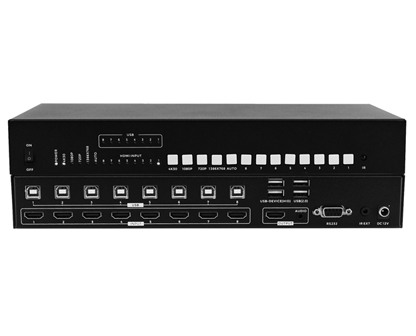

This product is an HDMI 4K seamless and scaling switcher, supports automatic switching and manual switching, supports switching from 8 HDMI with 8 USB-B inputs to 1 HDMI output with 2 USB-A for Keyboard&mouse, and 8 HDMI inputs support different arbitrary resolutions with seamless switching and scaling. The HDMI output supports fixed resolutions output, which can be selected through the front panel buttons, infrared remote control, RS232 serial port commands and the Keyboard Hot-key switching. Also supports EDID management through RS232 commands.
inquiry
This product is an HDMI 4K seamless and scaling switcher, supports automatic switching and manual switching, supports switching from 8 HDMI with 8 USB-B inputs to 1 HDMI output with 2 USB-A for Keyboard&mouse, and 8 HDMI inputs support different arbitrary resolutions with seamless switching and scaling. The HDMI output supports fixed resolutions output, which can be selected through the front panel buttons, infrared remote control, RS232 serial port commands and the Keyboard Hot-key switching. Also supports EDID management through RS232 commands.
· Support HDMI1.4, and the resolution up to 3840*2160@30Hz
· Support CEC, ARC follow
· Support seamless switching even when different resolutions inputs;
· Support auto and manual switching modes
· Support the front panel push-button, IR remote and the RS232 control
·Support EDID management by RS232 commands
·Support work and standby power saving modes
·Support work and standby power saving modes
| Tyoe | SW-4K30-81S |
| Description | HDMI 4K30 8x1 seamless switcher |
| Input | 8X HDMI,8USB-B |
| Output |
1*HDMI+3.5mm audio, 2USB-A |
| Protocol Standard | HDMI1.4, HDMICP1.4 |
|
Resolution |
(8)3840*2160@30\1920*1080@60\1280*720@60\1366*768@60 |
| Dimension |
250X100X46MM |
|
Weight |
0.5kg(1.1lb)(No packing) |
|
Power Supply |
DC 12V 1A |
|
Consumption |
5W |
|
Working Humidity |
10%-90% |
|
Temperature |
-10℃-50℃ |
|
Storage |
-20℃-75℃ |
|
No. |
Name |
Qty |
Unit |
|
1 |
SW-4K30-81SKVM |
1 |
Pcs. |
|
2 |
DC 12V2A power adapter |
1 |
Pcs |
|
3 |
Remote Control(without battery) |
1 |
Pcs |
