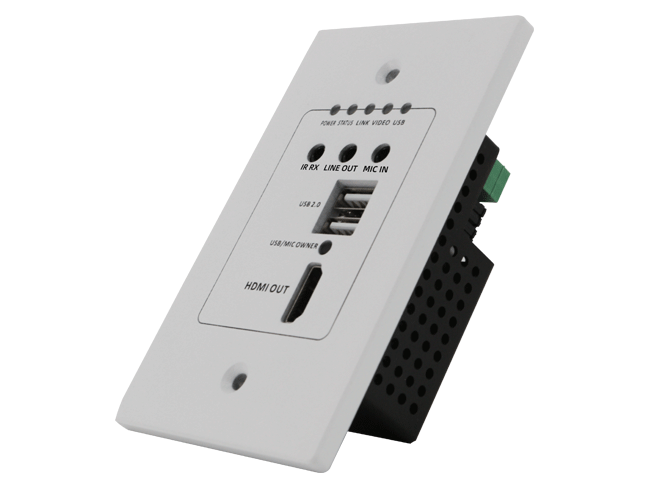

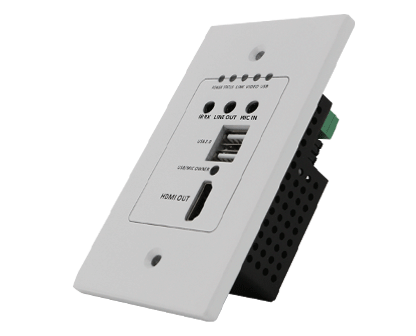

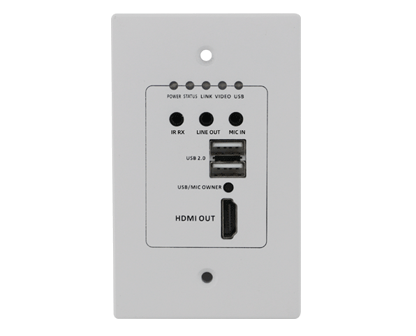

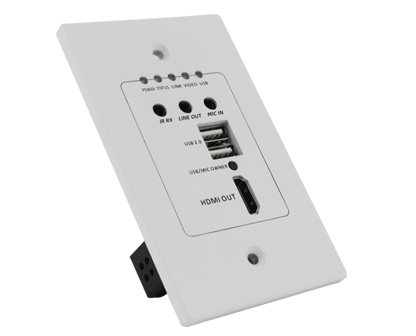

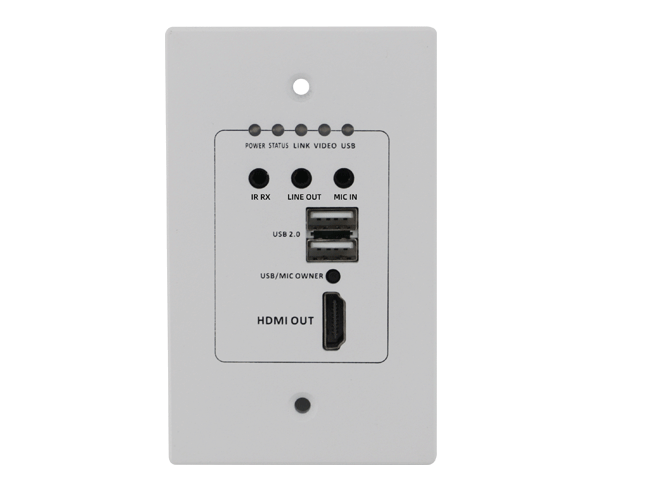

It's a 4K HDMI+IR+USB2.0 Wallplate receiver. It also supports the HDMI or USB2.0 transmission only, so it can be used as USB2.0 over CAT extender. The HDMI resolution can up to 4k@30hz and the distance can up to 150m over single Cat6, also supports the the POC(power over cable), so that users can only power on either side with the power adapter. It's popularly used in the small meeting room, classroom or other long distance transmission applications.
inquiry
It's a 4K HDMI+IR+USB2.0 Wallplate receiver. It also supports the HDMI or USB2.0 transmission only, so it can be used as USB2.0 over CAT extender. The HDMI resolution can up to 4k@30hz and the distance can up to 150m over single Cat6, also supports the the POC(power over cable), so that users can only power on either side with the power adapter. It's popularly used in the small meeting room, classroom or other long distance transmission applications.
· Supports HDMI output
· Supports HDCP1.4
· Transmission distance: 400ft/150m via Cat5e/Cat6 for both 1080P or 4K30
· Supports POC(power over Cable)
· Supports multiple panel size(US 1-gang, UK 1-gang)
· LED working indicator
| Tyoe | IPDT-WALL-H-150R | |
| Input | 1×HDMI; 1x3.5mm | |
| Output |
1*LAN(RJ45), 2*USB2.0 |
|
|
Video resolution |
Up to 4K30 |
|
|
Transmission distance |
400ft/150m via Cat5e/Cat6 for both 1080P or 4K30 |
|
| Distance |
Product back size: 74x45x32mm/ 2.83x1.77x1.26inch, Decora front panel size: 103x46mm/ 4.06x1.81inch |
|
| Dimension |
US Panel size:115*140*40mm/ 4.52*5.51*1.57inch UK Panel size:88*88*40mm/3.46*3.46*1.57inch |
|
| Weight | 200g/0.45lbs | |
| Power Supply | DC：12V 1.5A | |
| Power consumption | ≤2.4W | |
| Working Temperature | -10℃-40℃ | |
| Storage Temperature | ﹣25℃-55℃ | |
HDPT-WALL-H-150R-86 x1
Power Adapter (12 VDC 1A)x1
