Modular Video matrix switcher 9X9 chassis with TV Wall and RS232

This is a modular matrix switcher, with 9 input slots and 9 output slots, so it can support maximum 9 inputs and 9 outputs, all the input and output cards are using 1-card 1-port, the signals are including the DVI, HDMI, HDBasT, Fiber Optic, 3G-SDI. Users are able to have mixed signals inputs and mixed signals outputs.

inquiry

Introduction

This is a modular matrix switcher, with 9 input slots and 9 output slots, so it can support maximum 9 inputs and 9 outputs, all the input and output cards are using 1-card 1-port, the signals are including the DVI, HDMI, HDBasT, Fiber Optic, 3G-SDI. Users are able to have mixed signals inputs and mixed signals outputs.

The single channel signal switching speed can reach 12.5Gbps, and the main board is using Four core four links processing technology, the switching ability speed can reach 32Gbps. With uncompressed transmission technology for the digital signal to make sure the image High fidelity output. Unique signal links shielding designing technology to make sure the signal completeness, the internal data switch has super strong capacity of resisting disturbance and long continuous and stable working ability. Supports 7*24 continuously working and with dual LAN and RS232 backup control, it’s convenient for users to control via PC, iPad, APP and the 3rd parties central control by the the RS232 control commands.

With the dual RS232 and LAN control, users also can simply set up and control the surrounding equipment, such as the projector, electric curtain and TVs.

Real shot products

 modular Video matrix switcher 9X9 chassis
HDMI matrix switcher 9x9 with audio
HDMI matrix switcher 9x9 with RS232 control
HDMI matrix switcher 9x9 with RS232 control

Features

· Modular designing chassis, with 9 input slots and 9 output slots

· 1-card 1-port input and output card

· Supports 1080P, 4K30 and 4K60 cards for selections

· Supports DVI-I/ HDMI/ 3GSDI/ HDBaseT/ Fiber to mix input and output

· Support Video wall and seamless switching with the 1080P and 4K60 cards

· Support 3.5mm audio embedded and de-embedd function

· Support up/down scaling function via the DIP switch

· Support dual LAN and RS232 ports for backup control

· Front buttons with background lights, easier to operate at any time

· Support auto saving protection and auto recovery function while power cut

Technical Parameters

Model MIN-MANAGER-900
Description 9x9 modular matrix switcher
Input 1-card 1-port input, including DVI/HDMI/VGA/CVBS/YPbPr/SDI/ HDBaseT/Fiber
Output Support DVI/HDMI/VGA/CVBS/YPbPr/SDI/HDBaseT/Fiber Otpic output
Protocol Standard 1-card 1-port output, including DVI/HDMI/VGA/CVBS/YPbPr/SDI/ HDBaseT/Fiber
Color Space Support RGB444, YUV444, YUV422 , x.v.C standard color extension
Resolution 640×480---3840×2160@60Hz(VESA ), 480i---4K@60Hz(HDTV )
Distance HDMI/DVI: 15m/40ft ; HDBaseT: 70m/220ft; Fiber: 2km/6000ft
Control iOS/Android Apps, WEB GUI, RS232 & Front buttons with background light
Power AC: 110V—260V 50/60Hz
Consumption 17W(No Cards)
Dimension 2U, 482×385×89(mm)/ 18.97*15.35*3.51(inch)
Weight 6kg/ 13.22lbs (No Cards)
Work Temperature 0℃ ~50℃
Storage Temperature -20℃ ~55℃

input and output card

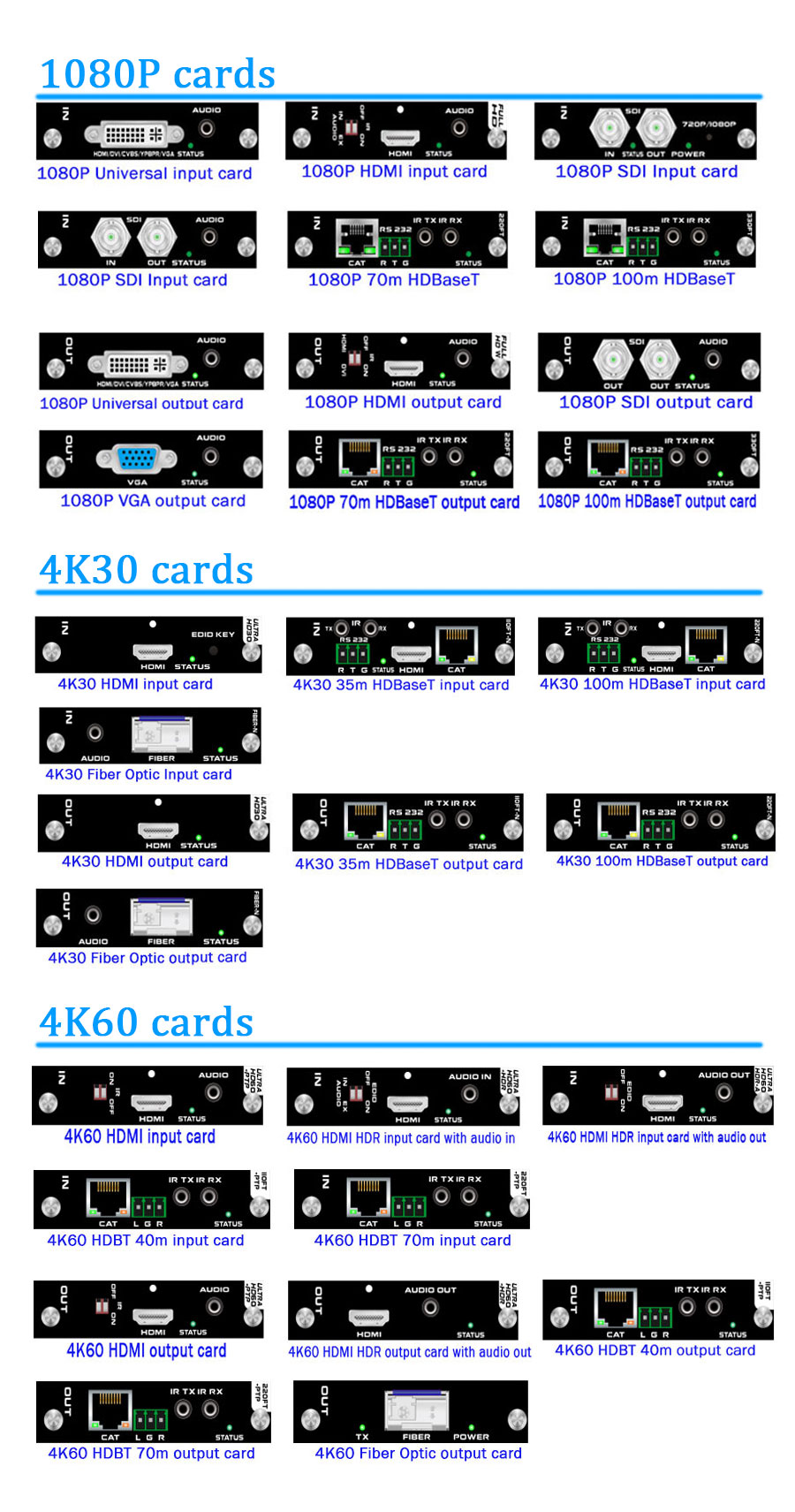

modular Video matrix switcher 9X9 chassis input and output cards


Connection diagram

modular Video matrix switcher 9X9 chassis with audio and RS232 control Connection Diagram
