1080P HDMI&KVM Extender

This extender can extend the HDMI signal to 328fts/100meters over one single CAT5e/CAT6/CAT7 cable. It’s compatible with all the HDTV formats, supports HDMI1.2, HDCP1.4 and one way IR transmission, the max resolution can up to 1080P@60Hz.

inquiry

Introduction

This extender can extend the HDMI signal to 328fts/100meters over one single CAT5e/CAT6/CAT7 cable. It’s compatible with all the HDTV formats, supports HDMI1.2, HDCP1.4 and one way IR transmission, the max resolution can up to 1080P@60Hz. With KVM function, it provided users to remote control the equipment. With indicators on the front panel, users will be much easier to know the equipment working status. Last but not least, this extender also can connect to the network switch, then it can realize one to many. This equipment has popularly used in meeting room, military, bank, government, medical and so on fields.

Real shot products

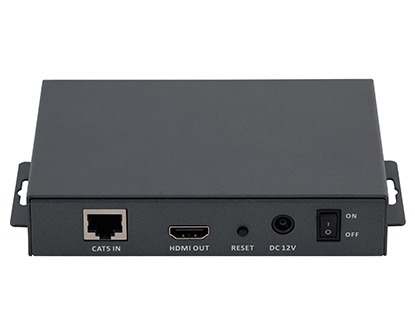

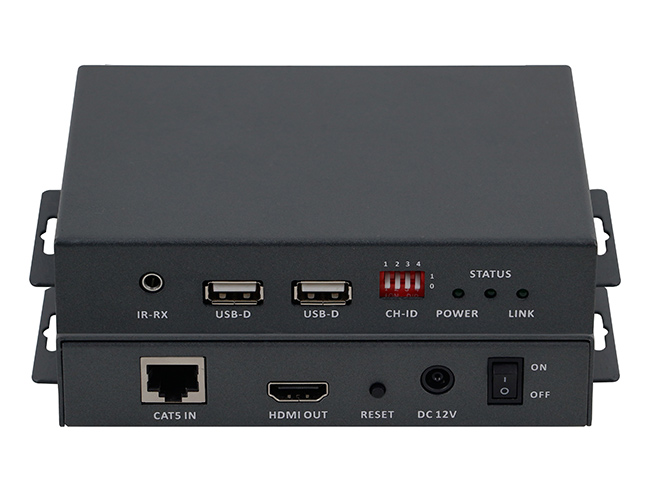

1080P HDMI&KVM Extender

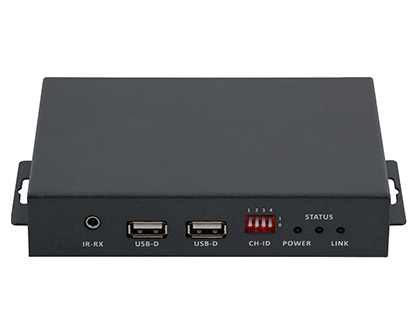

1080P HDMI&KVM Extender

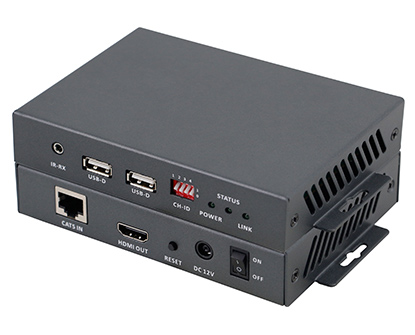

1080P HDMI&KVM Extender

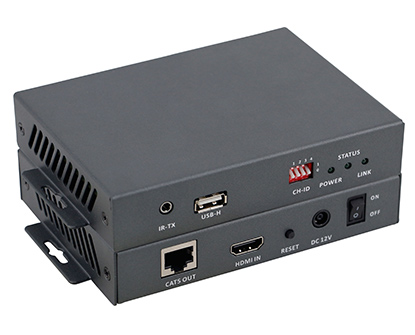

1080P HDMI&KVM Extender

Features

· Support all HD formats, the maximum resolution up to 1080P60Hz

· Over one single Cat5e/6 cable up to 100m transmission

· Support HDMI1.2, compatible with HDCP1

· Supports one way IR

· Supports KVM function to realize remote control

· Recommend Cat5e/ 6/ 7 cable, wiring standard is IEEE-568B

· Supports to connect with network switch to realize flexible inputs and outputs configuration

Technical Parameters

Model HDMI-KVM-100T HDMI-KVM-100R
Input Ports 1×HDMI,1×DC 12V,1×USB,1×IR 1×HDBT,1×DC 12V,2×USB
Output Ports 1×HDBT 1×HDMI,1×IR
Protocol Support HDMI1.2, compatible with HDCP1.4
Resolution Supports 1080P60Hz and below
Control IR remote control
Transmission 100 meters or 328ft
Power supply AC:110V-240V 50/60Hz  DC:12V 1.5A
Consumption 2W
Weight 0.8KG(one Tx and one Rx)
Dimension 135×92×27(mm)
Working Temperature 0℃-55℃
Storage temperature ﹣10℃-70℃

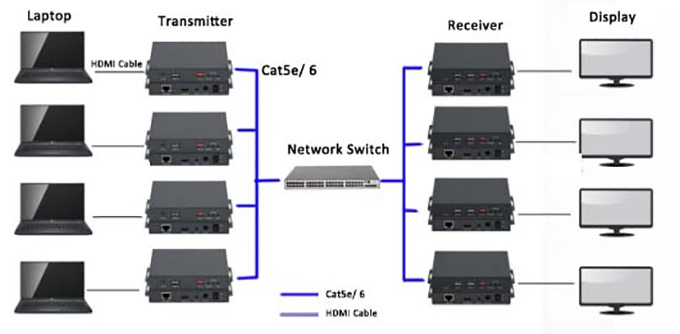

Connection diagram

Connection Diagram

Note: CH-ID is an adjustable DIP switch. Users have to keep the same ID for Tx and Rx, then it can transmit the audio and video signals. There are 16 different ID in total, it means it can connect with 16 different signals(also depends on the network switch). With this convenient DIP switch, users can realize flexible one to many configurations.
