4K60 UHDT HDMI Extender with HDR10&Dolby vision low latency

UHDT-4K60-70/100TR

UHDT-4K60-70T is a UHDT HDMI Extender which support the 4K60 444 HDMI signals transmission over single Cat 6/7 cable, the distance can up to 70m/220ft for 4k60(4:4:4), for 1080P60 can up to 100m/330ft.

inquiry

Product details

Introduction

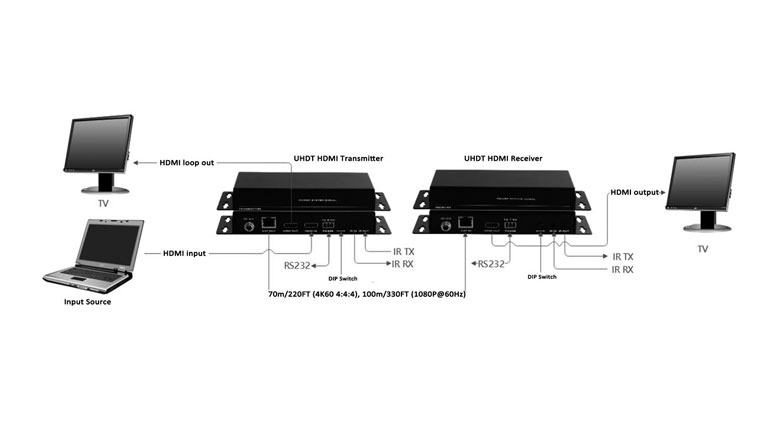

UHDT-4K60-70/100TR is a UHDT HDMI Extender which support the 4K60 444 HDMI signals transmission over single Cat 6/7 cable, the distance can up to 70m/220ft for 4k60(4:4:4), for 1080P60 can up to 100m/330ft. It supports HDMI loop out on the transmitter and the DIP switch for transmitting the RS232 or the bi-directional IR, with the POC function, users will only need to use the power adapter to power on either side. This extender can be used for home theater, church, exhibition and so on ultra resolution requirement applications.

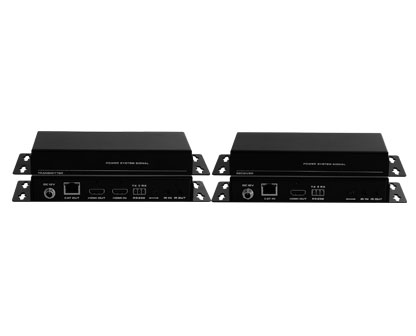

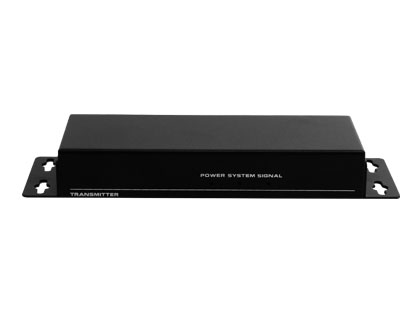

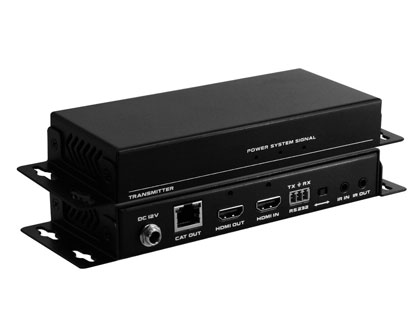

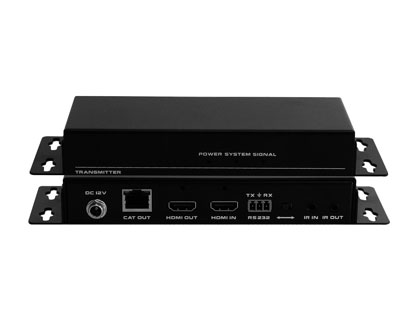

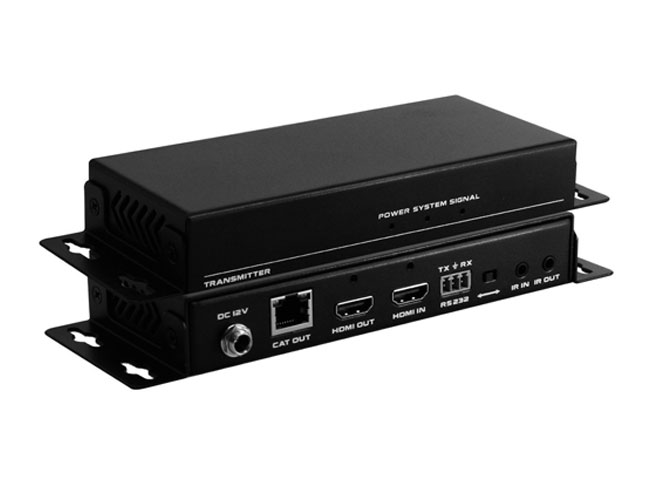

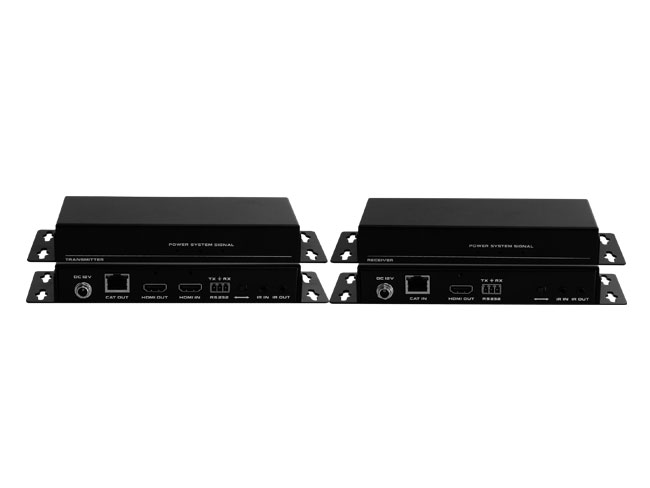

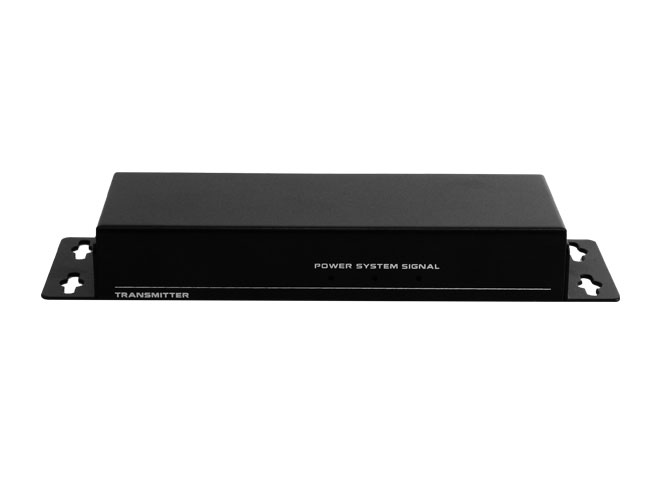

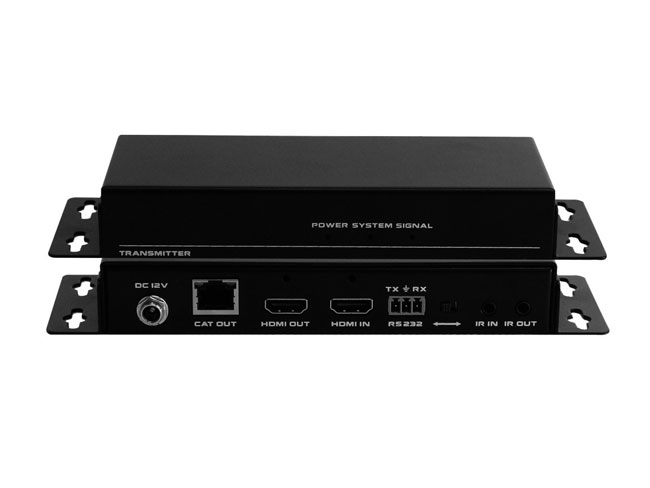

Real shot products

100m-1080P-HDMI-extender-compliant-HDCP2.2-HDMI2.0

Low-latency-HDMI-Extender-with-POC-funtion

4K60-UHDT-HDMI-Extender-with-HDR10&Dolby-vision-low-latency-100m-on-1080P-POC-function

Features

· Supports HDMI loop out on the transmitter

· Supports a DIP switch to user RS232 or the bi-directional IR

· The resolution up to 4K60 4:4:4, 18GBPS

· Distance can up to 70m/220ft at 4K604:4:4 or 100m/330ft for 1080P@60Hz

· Supports HDMI2.0, HDCP2.2, HDR10

· POC function

Technical Parameters

Tyoe	UHDT-4K60-70/100T	UHDT-4K60-70/100R
Discription	UHDT 4K60 HDMI Transmitter	HDT 4K60 HDMI Receiver
Input	1×HDMI, 1×IR	1×CAT,1×IR
Output	1×HDMI loop,1×CAT, 1×IR	1×HDMI, 1×IR
Protocol	HDMI2.0, HDCP2.2,
Resolution	Up to 4K@60Hz(4:4:4)
Bandwidth	18Gbps
Distance	200x72x27(mm)/7.87x2.83x1.06（inch)
Weight	400g(Tx/Rx) 0.88lbs
Power Supply	AC：110-240V 50/60Hz 1.5A Max DC：12V 1500mA
Power consumption	1.8W
Working Temperature	0℃-50℃
Storage Temperature	﹣20℃-55℃
