8x8 HDMI matrix switcher with EDID support RS-232 and TCP/IP

8x8 HDMI matrix switcher is a new fixed 4K2K HDMI matrix switcher with 8 HDMI input ports and 8 HDMI output ports, 8x8 HDMI matrix switcher resolution can up to 4K30Hz and all ports are HDCP compliant.

inquiry

Introduction

8x8 HDMI matrix switcher is a new fixed 4K2K HDMI matrix switcher with 8 HDMI input ports and 8 HDMI output ports, 8x8 HDMI matrix switcher resolution can up to 4K30Hz and all ports are HDCP compliant. 8x8 HDMI matrix switcher with the friendly user control methods: IR remote control, 2-Press push buttons with background blue light, WEB GUI, APP and PC control software control and the smart EDID management, 8x8 HDMI matrix switcher can work with the Blu-Ray Players, Set-Top boxes, Home Theater, and game consoles etc HDMI input sources to route to the HDMI displays, 8x8 HDMI matrix switcher has been widely used in different audio visual applications.

Real shot products

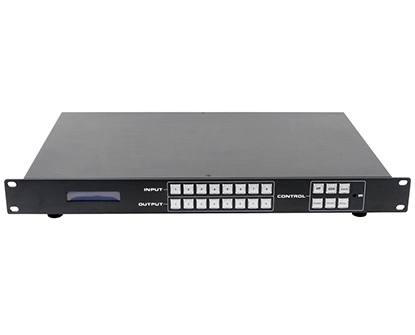

8x8 HDMI matrix switcher with EDID support RS-232 and TCP/IP Control(WEB GUI, APP and PC control software)

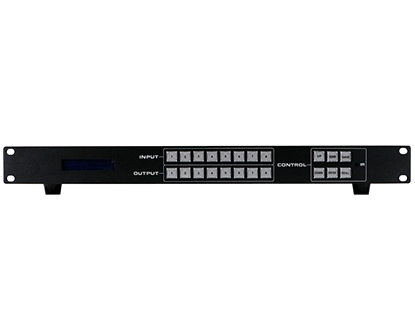

8x8 HDMI matrix switcher with EDID support RS-232 and TCP/IP Control(WEB GUI, APP and PC control software)

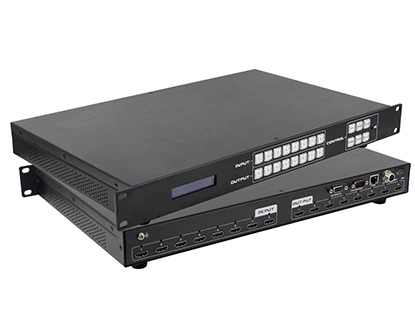

8x8 HDMI matrix switcher with EDID support RS-232 and TCP/IP Control(WEB GUI, APP and PC control software)

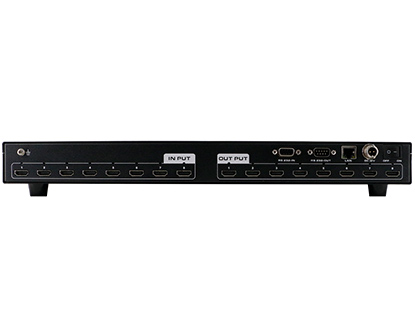

8x8 HDMI matrix switcher with EDID support RS-232 and TCP/IP Control(WEB GUI, APP and PC control software)

Features

· 8 HDMI inputs and 8 HDMI outputs

· Supports HDMI1.4, HDCP1.4

· The resolution can up to 4K@30Hz

· Deep Color support 48/36/30/24-bit

· Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital and DTS-HD Master Audio

· Supports IR remote control(IR remote control codes are available)

· Supports smart EDID management, including 8-output EDID, 15 internal EDID

· Supports RS-232 and TCP/IP Control(WEB GUI, APP and PC control software)

· Supports 2-press push buttons control with blue lights

· Supports to rename the inputs and outputs

Technical Parameters

Name FIXED 4K2K 8x8 HDMI Matrix Switcher
Resolution ratio Supports:480i, 576i, 480p, 576p, 720p, 1080i, 1080p@24/30/50/60Hz, 4K@30Hz, 1080P3D@60Hz
Input ports 8 * HDMI ports, 1* RS-232(control), 1 * RJ-45(control)
Output ports 8 * Female HDMI, 1* RS-232(control)
ESD Protection Human-body Model:  ± 8kV (Air-gap discharge)
± 4kV (Air-gap discharge)
ESD Protection 12 V/2 A DC (US/EU standards, CE/FCC/UL certified)
Controlling Supports remote control, front buttons control, RS232, LAN control
Input voltage AC: 100VAC ~ 260VAC, 50/60 Hz
DC:12V 2A
Dimension(mm) 480 * 252 * 44( mm)
Weight 3.5Kg
Operating Temperature 0 ºC~40 ºC/32 ºF~104 ºF
Storage Temperature −20 ºC~60 ºC/−4 ºF~140 ºF

Connection diagram

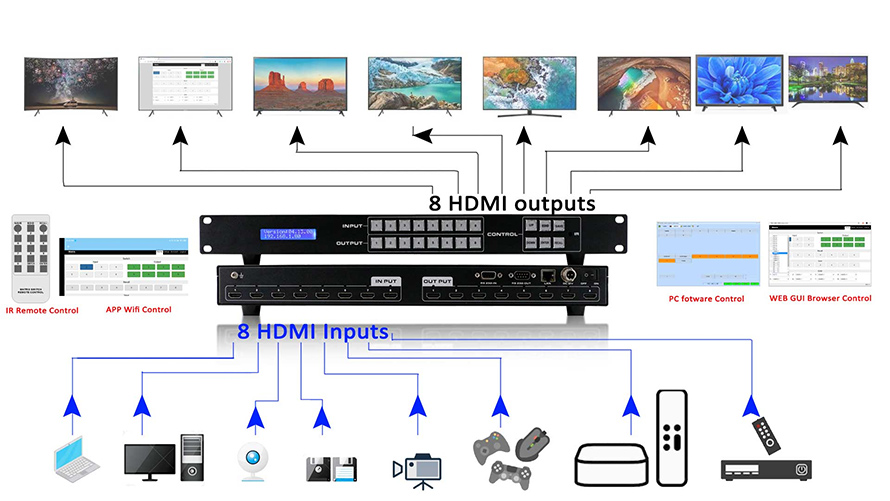

8x8 HDMI matrix switcher with EDID support RS-232 and TCP/IP Control(WEB GUI, APP and PC control software) Connection Diagram
