Product details

4K60 HDMI Extender HDBaseT AV Wallplate Introduction

HDMI Wallplate Transmitter is an HDBaseT Wallplate transmitter of HDMI extender series which supports 1*HDMI input and LED indicators, HDMI Wallplate Transmitter resolution can up to 4k@30hz, with the POC(power over cable) and POE function, users can only power on the HDBaseT receiver, for the HDMI Wallplate transmission distance, the HDMI Wallplate Transmitter can up to 70m at 1080P60, and HDMI Wallplate Transmitter can up to 35m over single Cat5e/6/7 cable based on 4K30Hz. HDMI wallplate of HDMI extender series popularly used in the small meeting room, classroom or other long distance transmission applications.

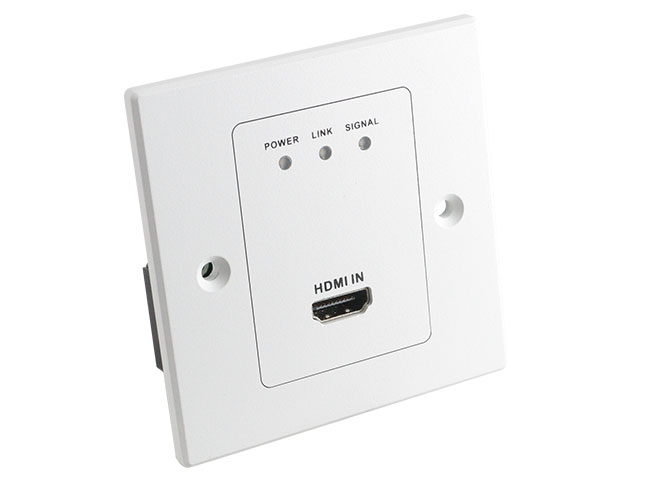

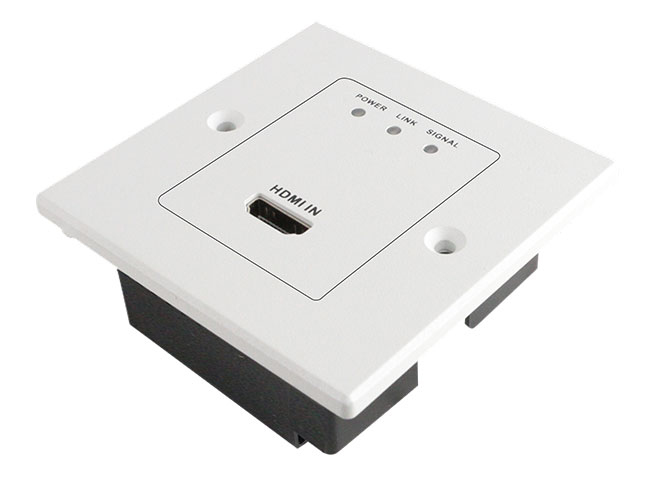

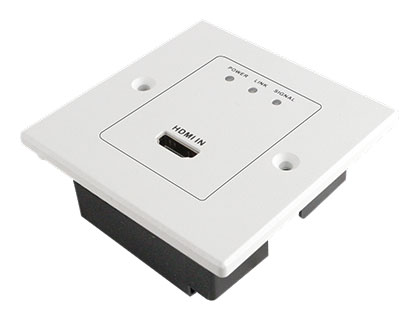

4K60 HDMI Extender HDBaseT AV Wallplate pictures

HDMI Wallplate Transmitter Extender 4K60 70M HDBaseT 1080P 100M

HDMI Wallplate Transmitter Extender HDBaseT 1080P 100M 4K60 70M

HDMI Wallplate Transmitter Extender HDBase 4K60 70M 1080P 100M

HDMI Wallplate Transmitter HDBaseT Extender 4K60 70M 1080P 100M

4K60 HDMI Extender HDBaseT AV Wallplate Features

· Support HDMI input and HDBaseT Output

· Supports HDCP 2.2 and HDMI 2.0

· Transmission distance up to 70/100m 220/330ft(1080P60) or 35/70m 110/220ft(4K30)

· Supports PC software preset via RS232

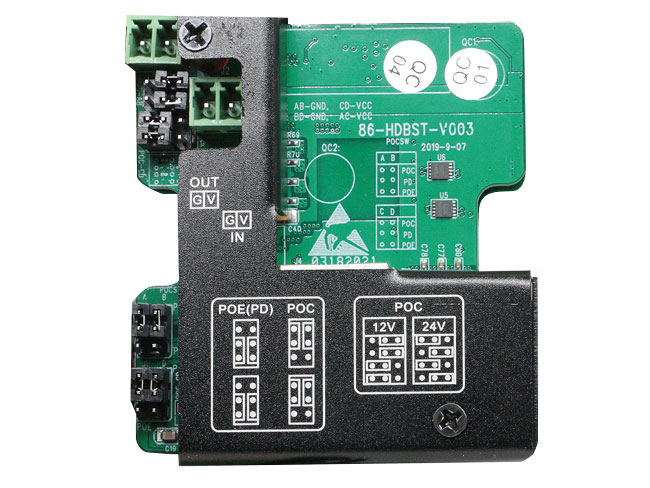

· Supports POC(power over Cable), POE function

· LED working indicator

4K60 HDMI Extender HDBaseT Wallplate Technical Parameters

Tyoe	HDBT-WALL-HD-70T/100T-86
Input	1×HDMI
Output	1×HDBaseT(RJ45)
Standard Protocol	Supports HDMI2.0 and HDCP2.2
Resolution	Up to 4K60Hz(4:2:0)
Distance	70/100m(220/330feet) at 1080P ; 35/70m(110/220feet) at 4K60（4:2:0) over single Cat6/6a/7 cable
Dimension	US Panel size:11514040mm/ 4.525.511.57inch UK Panel size:888840mm/3.463.461.57inch
Weight	200g/0.45lbs
Power Supply	DC：12V 1500mA
Power consumption	≤12W
Working Temperature	-10℃-40℃
Storage Temperature	﹣25℃-55℃
