4K30 HDMI matrix switcher FIX-SVM-400-4K30

inquiry

Introduction

This is a new fixed HDMI matrix switcher series with the seamless switch, Video Wall function, EDID management, audio breakouts and the resolution can up to 4K30Hz with scaling funtion and all ports are HDCP compliant. With the friendly user control methods: IR remote control, 2-Press push buttons with background blue light, WEB GUI/TCPIP/RS232/IR remote control, supports the WEB smart EDID management, this matrix switcher can work with the Blu-Ray Players, Set-Top boxes, Home Theater, and game consoles etc HDMI input sources to route to the HDMI displays, it has been widely used in different audio visual applications.

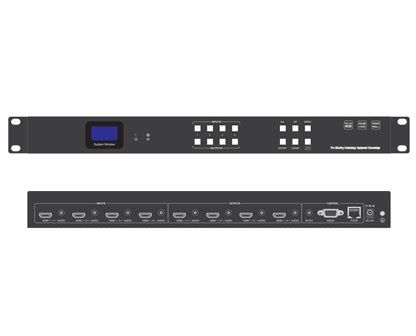

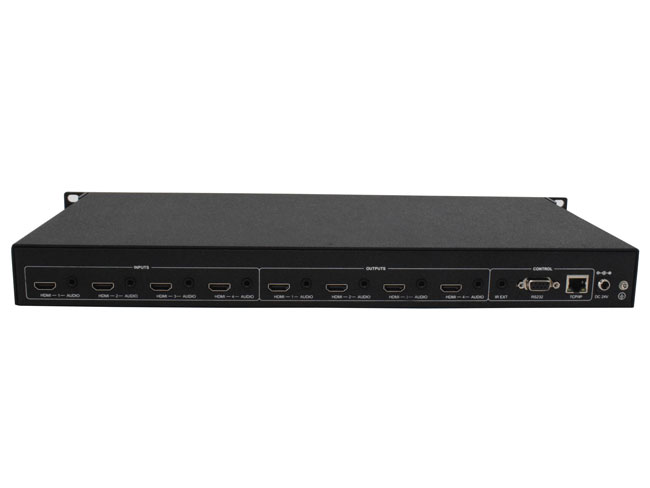

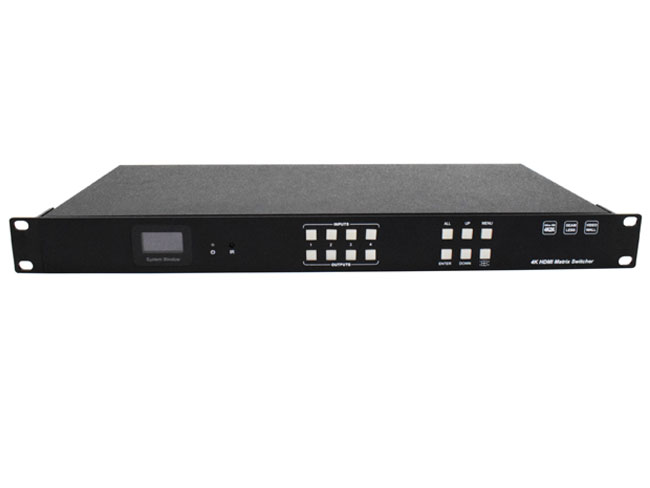

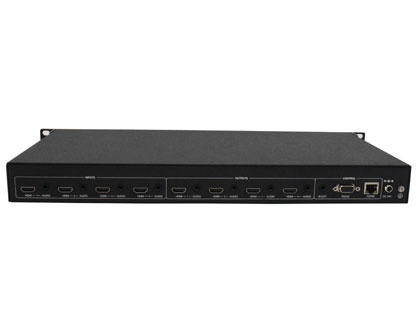

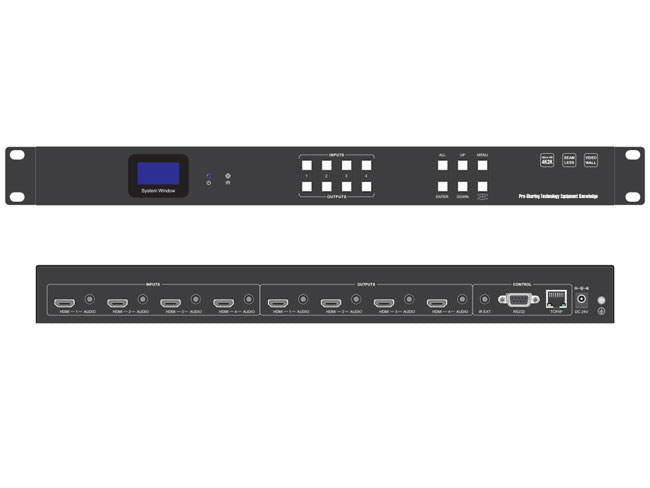

Real shot products

  • seamless-and-video-wall-4K30-HDMI-matirx-switcher
  • 4K30-HDMI44-matrix-switcher-with-seamless
  • HDMI-matrix-switcher-with-4K30-seamless-and-video-wall
  • seamless-and-video-wall-4K30-HDMI-matirx-switcher



  • Features

    · The resolution can up to 4K@30Hz inputs and outputs with scaling

    · Supports seamless switching, no black/blue screen during the sources switch

    · Supports the video wall function and bezel corrections

    · Supports the 3.5mm audio embedded and de-embedded

    · Supports smart EDID management

    · Supports RS-232 and TCP/IP Control(WEB GUI), IR remote control

    ·Supports up to 20 scenes

    Technical Parameters

    Tyoe FIX-SVM-400-4K30
    Description 4X4 4K30 HDMI matrix switcher
    Video
    Input Resolution UHD(3840x2160)/30Hz and under
    Output Resolution 4K@30\1080P\720P\1366*768@60
    Protocol     HDMI 1.6 , HDCP 1.4
    Color depth and space
    8/10/12 bit, YCbCr,RGB
    EDID Built-in and output ports learning/copy
    Input
    4xHDMI
    Output
    4xHDMI
    Audio
    Audio format
    PCM 2.1Ch, Dolby Digital, Dolby True-HD, DTS-HD(Only supports 2.1)
    Audio sampling
    32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
    Audio baud rate
    Up to 16~24-bit
    Control
    RS232
    DB9 female connector
    IR
    IR receiver
    LAN
    RJ45 for the TCP/IP control
    Other
    Power Supply Power adapter 24V/3A
    Consumption 20W
    Dimension 440*215*44mm
    Weight 3kg
    Power Supply DC:24V /3A
    Consumption
    20W
    Working Humidity
    20%-90%
    Working Temperature 0℃-50℃
    Storage Temperature ﹣20℃-60℃

    Connection diagram

    Connection-Diagram-for-4K30-HDMI-matrix-switcher
