  • Wired Presentation Switcher BY0D-8300

Wired Presentation Switcher BY0D-8300

The BYOD-8200 is a high-performance BYOD presentation switcher with wire and wireless presentation capabilities. It equips built-in Wi-Fi module and supports multiple access approaches, including Airplay Mirroring, Miracast, physical interfaces (HDMI, VGA and USB-C) and USB Dongle

inquiry

Introduction

The BYOD-8200 is a high-performance BYOD presentation switcher with wire and wireless presentation capabilities. It equips built-in Wi-Fi module and supports multiple access approaches, including Airplay Mirroring, Miracast, physical interfaces (HDMI, VGA and USB-C) and USB Dongle, with which you can project screen contents of your computer (Mac/Windows) or mobile device (iPhone/iPad/Android) to a display in Multiview mode.

Multiple features like fast seamless switching, auto signal switch, serial control, CEC, Guide Screen, OSD display, USB switching and extension are included. The switcher is a collaboration terminal used for meeting room or workgroup discussion.

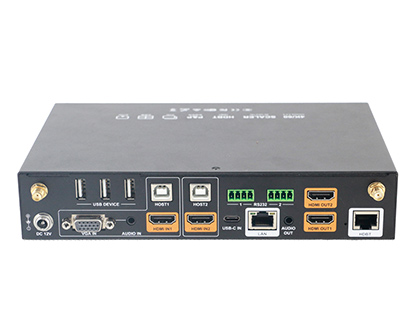

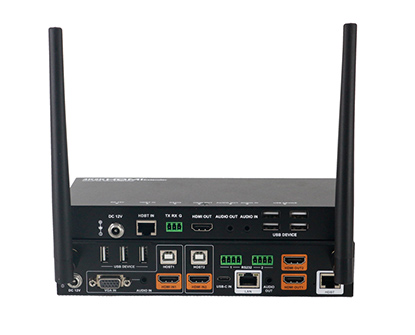

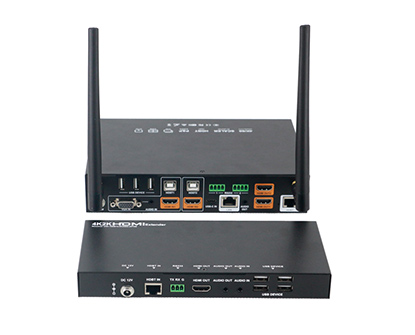

Real shot products

Wired Presentation Switcher BY0D-8300
Wired Presentation Switcher BY0D-8300
Wired Presentation Switcher BY0D-8300
Wired Presentation Switcher BY0D-8300

Features

· Multiview presentation with configurable screen layout.

· Supports wireless connectivity over Airplay, Miracast and USB Dongle.

· Fast seamless switching for both single view and Multiview.

· Supports HDMI input resolutions up to 4K@30Hz 4:4:4.

· Supports HDMI output resolutions up to 4K@60Hz 4:4:4.

· Detailed and friendly OSD information.

· Supports USB extension and switching control among three USB hosts.

· Offers multiple control approaches: front panel buttons, Web UI and Telnet API.

· Multiview layout adjustable by the end user.

Technical Parameters

Technical
Input Video Port 1 x VGA; 2 x HDMI; 1 x USB-C;
1 x LAN, 10/100/1000 Mbps Ethernet; 1 x WLAN
Input Resolutions · VGA:
640x4808,9 , 720x4808, 720x5766, 800x6008, 1024x7688,9, 1280x7207,8, 1280x8008, 1280x10248,9, 1360x7688, 1366x7688, 1400x10508, 1440x9008, 1600x9008, 1600x12008,9, 1920x10806,8
· HDMI/USB-C:
640x4808, 800x6008, 1024x7688, 1280x7688, 1280x8008, 1280x10248, 1360x7688, 1366x7688, 1440x9008, 1400x10508, 1600x12008, 1680x10508, 1920x12008, 720x4808 (480p), 720x5766 (576p), 1280x7205(720p30), 1280x7206 (720p50), 1280x7208 (720p60), 1920x10802 (1080p24), 1920x10803 (1080p25), 1920x10805 (1080p30), 1920x10806 (1080p50), 1920x10808 (1080p60), 3840x21605(2160p30)
· LAN/WLAN: Up to 1920x10808 (1080p60)
Note: The input resolution support for LAN or WLAN may vary according to the specific BYOD protocols and devices.
1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = 60 Hz, 9 = 75 Hz
Output Video Port 2 x HDMI, 1 x HDBaseT
Output Resolutions For HDMI OUT 1:
720x4808 (480p60), 720x5766 (576p60), 640x4808, 800x6008, 1024x7688, 1280x10248, 1366x7688, 1440x9008, 1280x8008, 1680x10508, 1920x21605, 1600x12008, 1920x12008, 2560x14405, 2560x14408, 1280x7206 (720p50), 1280x7208 (720p60), 1920x10806 (1080i50), 1920x10808 (1080i60), 1920x10802 (1080p24), 1920x10803 (1080p25), 1920x10805 (1080p30) , 1920x10806 (1080p50), 1920x10808 (1080p60), 3840x21602 (2160p24) , 3840x21603 (2160p25) , 3840x21605 (2160p30) , 3840x21606 (2160p50) , 3840x21608 (2160p60)
For HDMI OUT 2:
Up to 1920x10808 (1080p60)
1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = 60 Hz, 9 = 75 Hz
Input Audio Port 2 x HDMI, 1 x USB-C, 1 x LAN, 1 x Analog Audio, 1 x WLAN
Input Audio Format RAW PCM, 16 bit, 32/44.1/48KHz sps; PCM 2.0
Output Audio Port 2 x HDMI, 1 x Analog Audio
Output Audio Format RAW PCM, 16 bit, 32/44.1/48KHz sps; PCM 2.0
Control Method Front panel buttons; Web UI; Telnet API/CLI
Wi-Fi
Standard IEEE 802.11 a/b/g/n/ac
Frequency Dual bands, 2.4~2.4835GHz, 5.0~5.8GHz
Throughout 2T x 2R, up to 867Mbps
Security WEP, TKIP, AES, WPA, WPA2
General
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Humidity 10% to 90%, non-condensing
ESD Protection Human-body Model:
±8kV (Air-gap discharge)/
±4kV (Contact discharge)
Power Supply 12 V 1 A DC
Power Consumption   20W (Max)
Device Dimension
(W x H x D)
215 mm x 42 mm x 140.2 mm / 8.46'' x 1.65'' x 5.52''
Net Weight 1.0kg/2.2lbs

Connection diagram

Connection Diagram
