USB3.0 over HDBaseT Extender

This is a high performance USB-C extender over HDBaseT technology, along with the RS232, I/O and POC function over single STP CAT6A cable, the distance up to 70m/220ft, it supports USB 3.2 Gen 1 and down compatible with USB 2.0, USB1.1. Also can have the I/O and bi-directional RS232 transmitted together. With an easy cable installation, this is ideal for applications where convenient remote access is required.

inquiry

Product details

USB3.0 over HDBaseT Extender Decoder Demo Video

USB3.0 over HDBaseT Extender Introduction

This is a high performance USB-C extender over HDBaseT technology, along with the RS232, I/O and

POC function over single STP CAT6A cable, the distance up to 70m/220ft, it supports USB 3.2 Gen 1

and down compatible with USB 2.0, USB1.1. Also can have the I/O and bi-directional RS232

transmitted together. With an easy cable installation, this is ideal for applications where convenient

remote access is required.

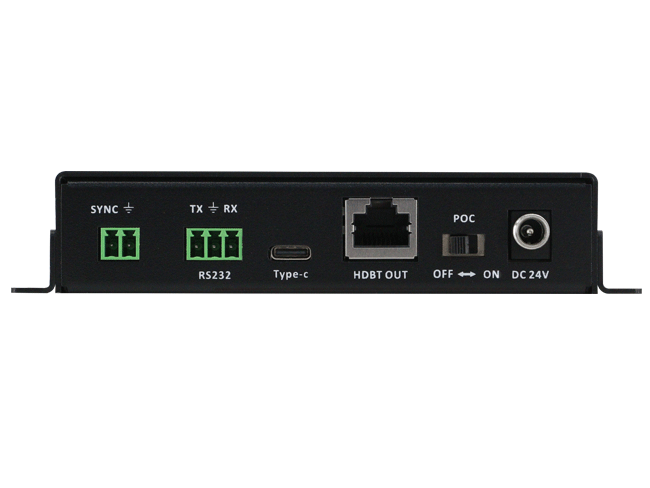

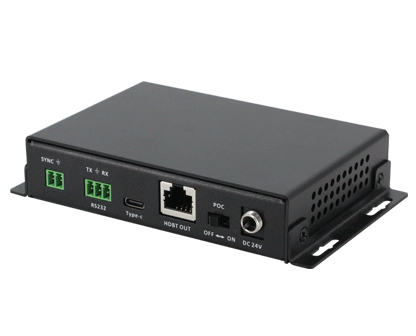

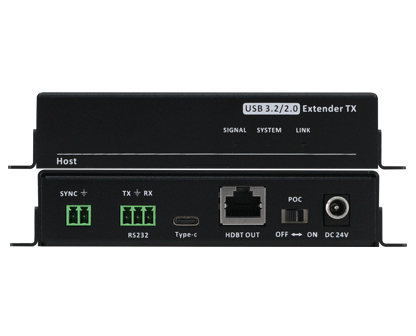

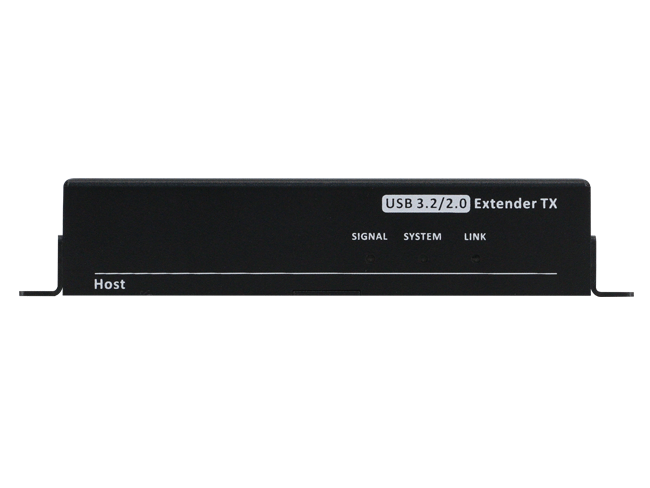

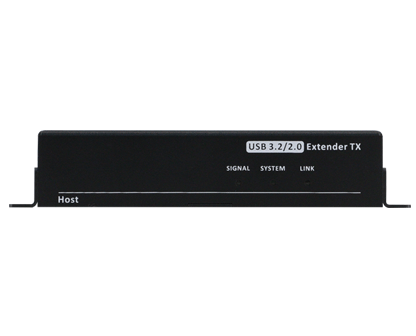

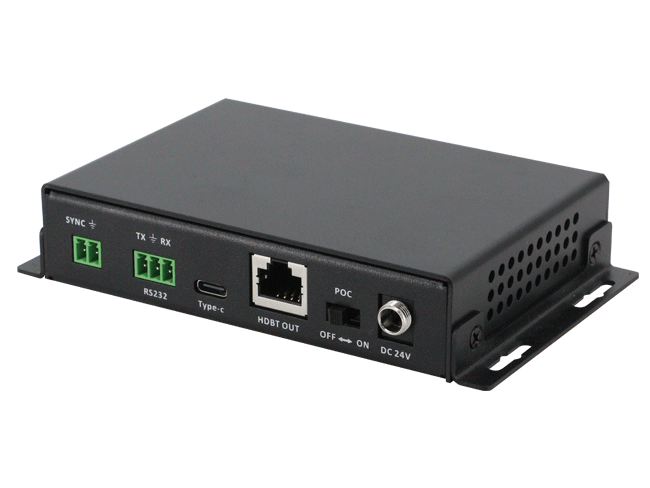

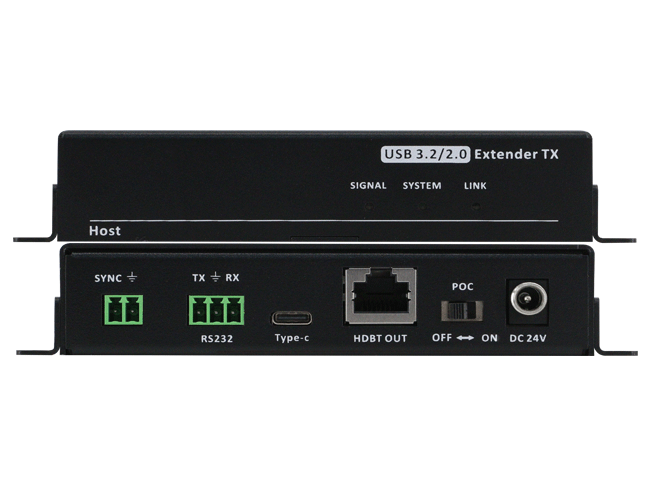

USB3.0 over HDBaseT Extender pictures

USB3.0 over HDBaseT Extender Features

· USB-C over HDBaseT extender

· The bandwidth up to 6 Gbps

· Bidirectional traffic over the Link

· Extension of USB 3.2 Gen 1, with rate of up to 5 Gbps

· Extension of USB 2.0, with rate of up to 480 Mbps

· Support POC function, RS232 and I/O transmission together

· Up to 70 meter tunneled point-to-point extension over a CAT6A cable

·Point-to-point transmission up to 150M over CAT5e

USB3.0 over HDBaseT Extender Technical Parameters

Tyoe	HDBT-USB2-100TR
model name	USB, SYNCI/O, RS232
Host	1USB-C, 14PIN phoenxi, 1*3PIN phoenxi,
device	1USB-TYPE-A, 14PIN phoenxi, 1*3PIN phoenxi,
HDBT	RJ45 port with POC function
Bandwidth	6Gbps
Interconnect Cable	STP Cat6A
Transmission Distance	70M
Power Supply (PoC)	DC12V 2A
Housing / Color	Metal / Black
Dimension ( WxDxH )	154.6x82.4x45.6 mm
