CVT-3GSDI-MAV

CVT-3GSDI-MAV is a unique and powerful universal media converter, it can convert the SDI to CVBS/DVI/VGA/Ypbpr/HDMI. It also support 3.5mm audio embedded and de-embedded.

inquiry

Introduction

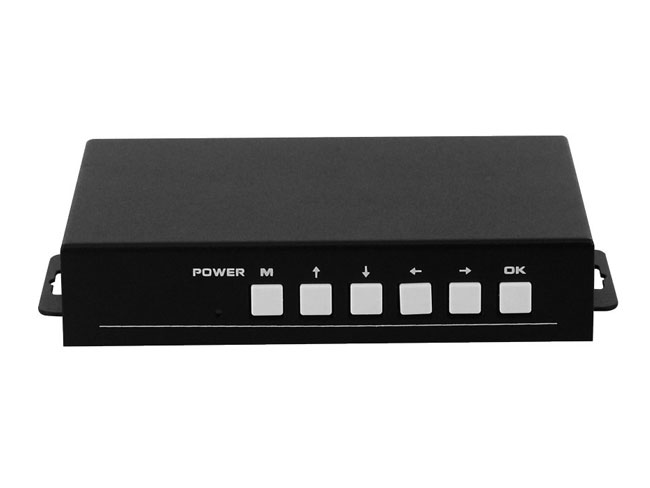

CVT-3GSDI-MAV is a unique and powerful universal media converter, it can convert the SDI to CVBS/DVI/VGA/Ypbpr/HDMI. It also support 3.5mm audio embedded and de-embedded. With front buttons, users can adjust the color, brightness, sharpness, contrast ratio of the output images. Also supports the advanced mirror and so on functions.
It provides a very stable and universal converting solution, with all kinds of advanced mirror, scaler functions, it has been popularly used in the conferencing rooms, advertising and security and protection systems.

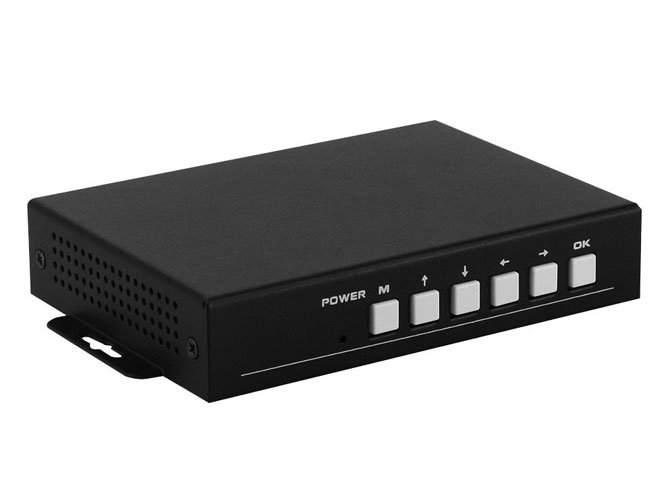

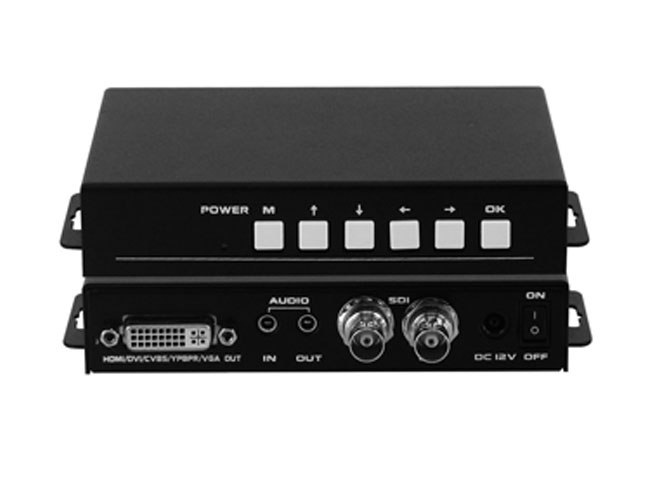

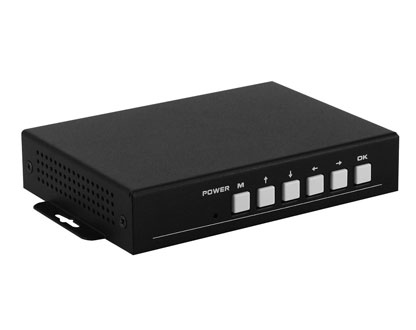

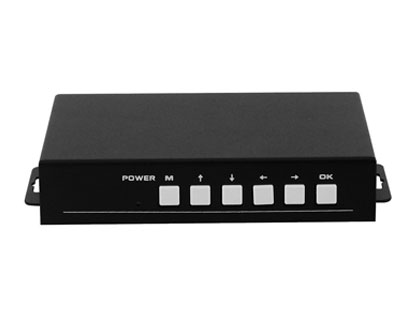

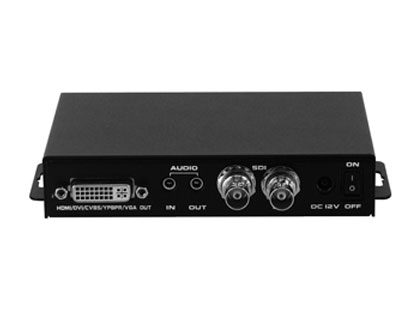

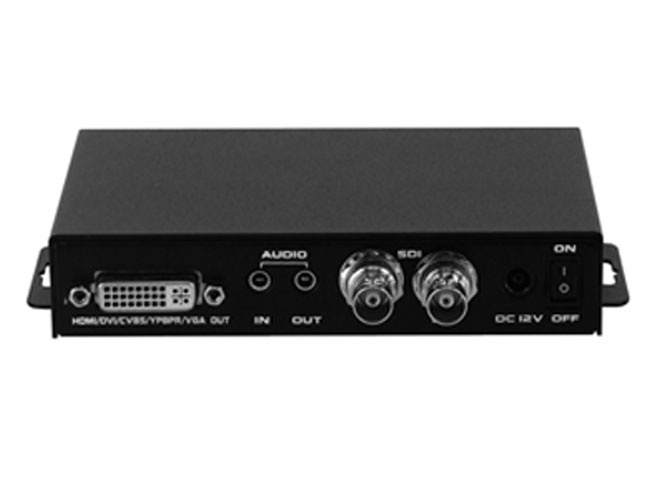

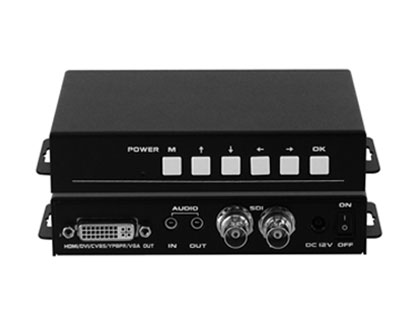

Real shot products

  • SDI-to-HDMI-DVI-VGA-CVBS-Ypbpr-signal-converter
  • SDI-to-universal-signal-converter-with-audio-and-scaling-with-hot-plug
  • SDI-to-HDMI-DVI-VGA-CVBS-Ypbpr-signal-converter-with-mirror-function
  • hot-plug-function-SDI-to-HDMI-signal-converter



  • Features

    · Converts SD/HD/3G-SDI to HDMI/DVI/VGA/YPBPR/CVBS+LR

    · Supports audio embedded and de-embedded, hot-plug

    · With equalization technology, it can realize long distance transmission

    · Scaler function

    · Supports 1 SD/HD/3G-SDI loop out

    · Supports color, brightness, contrast ratio and sharpness adjustment of the output images

    · Support advanced MIRROR function(Images rotate off 180 degrees)

    Technical Parameters

    Tyoe CVT-3GSDI-MAV
    Description SDI to universal signal converter
    Input signals SDI+3.5mm audio embedding
    Output signals DVI-I(HDMI/CVBS/VGA/YPbPr with adapters)+ SDI LOOP+ 3.5mm audio de-embedding
    Protocol DVI1.0
    Resolution 1920*1200 and under( YPbPr supports under 1080P)
    Dimension 152*96*27(mm)/ 5.98*3.77*1.06 inch
    Weight 200g/0.44lbs
    Power Supply AC:100-240V 50/60Hz      DC:12V 1500mA
    Power consumption ≤7W
    Working Temperature 0℃-50℃
    Storage Temperature ﹣20℃-55℃

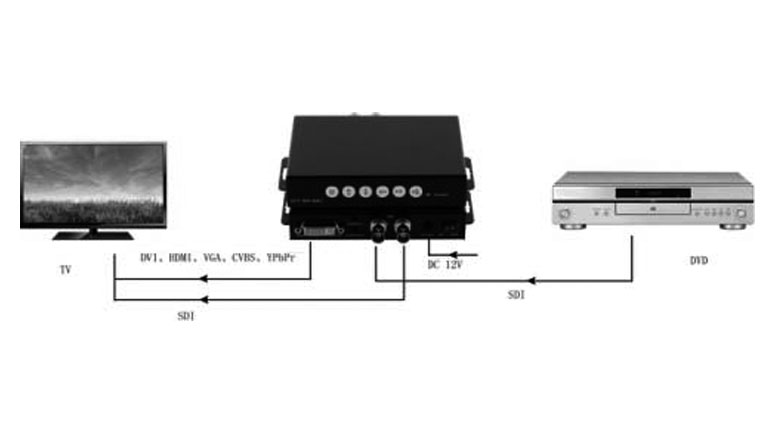

    Connection diagram

    SDI-to-universal-signal-converter-with-audio-and-scaling-Connection-Diagram
