AV over IP system within 80 points(unicast version) IPM-900TR

The AV over IP system encoder(IPM-900T) and AV over IP decoder(IPM-900R) can work together to provide complete end-to-end streaming system or it can work with the network switch to realize a one to many, many to one and many to many systems.

inquiry

Introduction

The AV over IP system encoder(IPM-900T) and AV over IP system decoder(IPM-900R) can work together to provide complete end-to-end streaming system or AV over IP system can work with the network switch to realize a one to many, many to one and many to many systems. AV over IP system can transmit the video, audio and RS232 signals together or separately over single LAN cable, with the POE function, the Rx and Tx can be powered by POE from a POE network switch, AV over IP system it helps to make the installation more clean and professional. Except working as the matrix switch and distribution systems, AV over IP system also supports the video wall function with maximum configuration of 16x16 Video wall. The resolution of AV over IP system can up to 1920x 1080@60Hz.

AV over IP system can support friendly-user control options, including RS232, IP control box, PC software, iPad APP control with Source&Videowall preview function. The AV over IP system decoder also support the CEC/RS232 function to power on and off displays.

AV over IP system can be popularly used in the hospital, school, shopping mall, hotels, command center and corporate training etc.

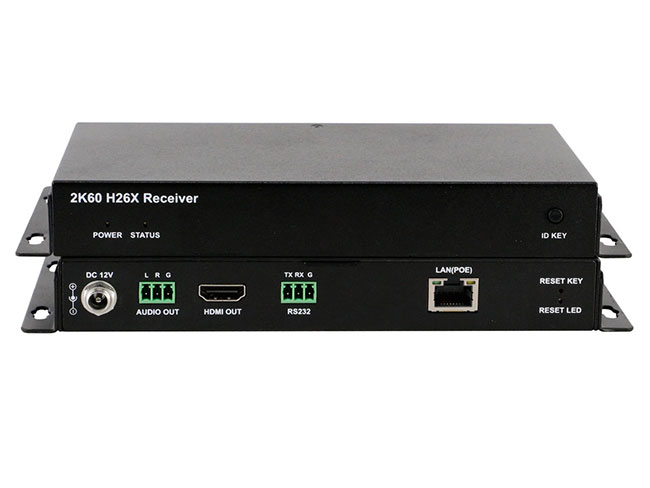

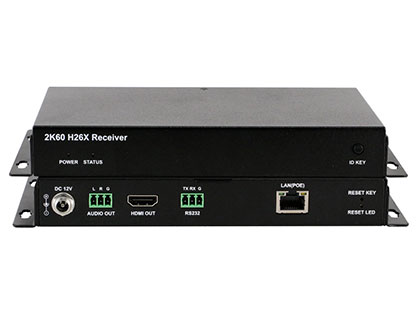

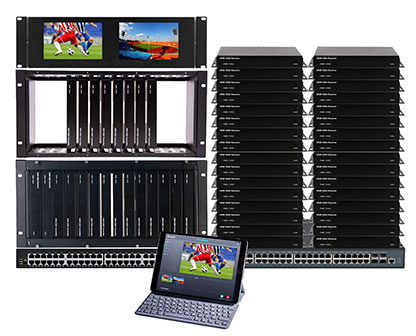

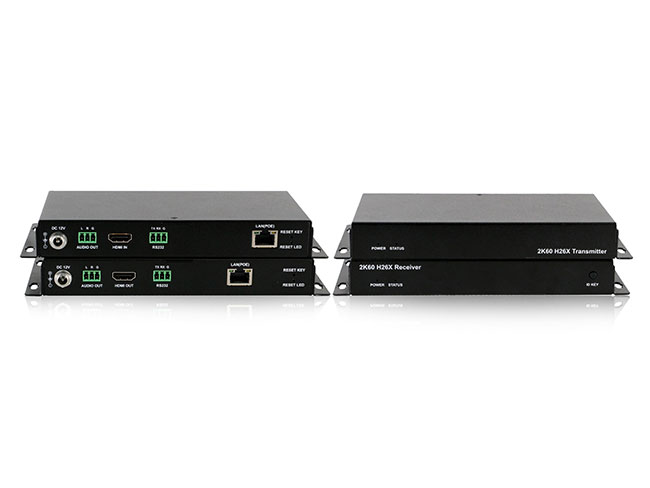

Real shot products

  • HDMI over IP matrix systems within 80 points(unicast version) video and audio visual equipment manufacturers
  • AV-over-IP-systerm-unicast-1080P-AVC-over-IP-iPad-control&-Prerview-audio-visual-equipment-manufacturers
  • AV-over-IP-systerm-HDMI-over-IP-matrix-systems-within-80-points(unicast-version)1080P-AVC-over-IP-iPad-control&-Prerview-audio-visual-equipment-manufacturers
  • AV-over-IP-systerm-1080P-AVC-over-IP-iPad-control&-Prerview-audio-visual-equipment-manufacturers



  • Features

    ·Transmits the HDMI over IP

    ·The resolution can up to 1920 x 1080@60Hz.

    ·Auto scaling function from 480p@60Hz to 1080@60Hz

    ·One push-key to read the IP address of each unit

    ·50 points in total of the Rx plus Tx(Unicast version)

    ·Supports sources and TV Wall and sources preview functions on an iPad APP

    ·Featured video wall up to the configuration of 7x 7 video wall

    ·No need the IP control box (IPM-MG)

    ·Supports firmware upgrade online

    ·Supports 3-pin audio de-embedded function on both of the Tx and Rx

    ·Allows video, audio and RS232 signals to be routed together or separately.

    ·Supports EDID importing to encoder and export from display to decoder.

    ·Supports CEC/RS232 function to power on and off the display.

    ·HDCP compliant, HDCP1.4, HDMI1.3

    ·Supports seamless switch with no black/blue screen while sources switching

    ·Supports POE function or use the DC power adapter

    ·Supports Auto IP(zeroconf), dynamic IP or static IP address settings

    ·Supports communications protocols such as H.264/ H.265, TCP/IP, Telnet, UDP and IGMP

    Technical Parameters


    Technical Parameters

    Tyoe IPM-900TR
    Description AV over IP system(HDMI Over IP Matrix) unlimited numbers

    Encoder

    Video
    Input Video Port 1 x HDMI
    Input Video Type HDMI 1.3, HDCP 1.4
    Input Resolution 640 x 480@60Hz, 480p@60Hz,576i@50Hz, 576P@50Hz, 800 x 600@60Hz, 1024 x 768@60Hz, 720p@50Hz, 720p@60Hz, 1280 x 800@60Hz,
    1280 x 1024@60Hz, 1360 x 768@60Hz,
    1366 x 768@60Hz, 1400 x 1050@60Hz,
    1440 x 900@60Hz, 1680 x 1050@60Hz,
    1920 x 540@60Hz, 1080i@50Hz, 1080i@60Hz, 1080p@50Hz, 1080p@60Hz
    Input Video Signal 0.5~1.2 V p-p
    Encoding Data Rate Up to 30 Mbps, configurable
    Output Video Port 1 x LAN
    Output Video Type H.264/ H265 /MPEG-4 AVC
    Output Resolution From 480p@60Hz to 1920 x 1080@60Hz
    Video Impendence 100 Ω
    Input DDC Signal 5 V p-p (TTL)
    End-to-End Time Latency When works with decoder:
    · About 50 ms (Low latency mode)
    · About 250 ms (High quality mode)
    Audio
    Input Audio Port 1 x HDMI
    Input Audio Format LPCM 2.0
    Output Audio Port 1 x 3-pin Phoenix connector
    Output Audio Format Stereo
    Control
    Control Method iPad APP
    General
    Operating Temperature +32°F ~ +113°F (0°C ~ +45°C)
    10% ~ 90%, non-condensing
    Storage Temperature -4°F ~ 140°F (-20°C ~ +70°C)
    10% ~ 90%, non-condensing
    Power Supply 12 V 1 A DC
    Power Consumption 6W (Max.)
    ESD Protection Human body model:
    · ±8kV (air-gap discharge)
    · ±4kV (contact discharge)
    Surge Protection Voltage: ±1 kV
    Product Dimensions
    (W x H x D)
    175 mm x 25 mm x 100.2 mm / 6.9'' x 0.98'' x 3.9''
    Net Weight 0.60kg / 1.32lb

    Decoder

    Video
    Input Video Port 1 x LAN
    Input Video Type H.264/ H.265/ MPEG-4 AVC
    Input Resolution From 480p@60Hz to 1920x1080@60Hz
    Output Video Port 1 x HDMI
    Output Video Type HDMI 1.3, HDCP 1.4
    Output Resolution 640 x 480@60Hz, 480p@60Hz, 576P@50Hz,
    800 x 600@60Hz, 1024 x 768@60Hz, 720p@50Hz, 720p@60Hz, 1280 x 800@60Hz, 1280 x 1024@60Hz,
    1366 x 768@60Hz, 1400 x 1050@60Hz,
    1440 x 900@60Hz, 1680 x 1050@60Hz,
    1920 x 540@60Hz, 1080p@24Hz, 1080p@25Hz, 1080p@30Hz, 1080p@50Hz, 1080p@60Hz
    Video Impendence 100 Ω
    End-to-End Time Latency When works with encoder:
    · About 50 ms (Low latency mode)
    · About 250 ms (High quality mode)
    Audio
    Input Audio Port 1 x LAN
    Input Audio Format Audio embedded in streaming media input
    Output Audio Port 1 x Phoenix connector
    1 x HDMI
    Output Audio Format LPCM 2.0
    Control
    Control Method iPad APP
    Control
    Operating Temperature +32°F ~ +113°F (0°C ~ +45°C)
    10% ~ 90%, non-condensing
    Storage Temperature -4°F ~ 140°F (-20°C ~ +70°C)
    10% ~ 90%, non-condensing
    Power Supply 12 V 1 A DC
    Power Consumption 6W (Max.)
    ESD Protection Human body model:
    · ±8kV (air-gap discharge)
    · ±4kV (contact discharge)
    Surge Protection Voltage: ±1 kV
    Product Dimensions
    (W x H x D)
    175 mm x 25 mm x 100.2 mm / 6.9'' x 0.98'' x 3.9''
    Net Weight? 0.60kg/1.32lb

    Application

    Matrix Switcher

    Matrix Switcher

    Video Wall

    Video Wall

    Connection diagram
