HDMI over CAT Extender kit with POC up to 150m/450FT

This HDMI extender can transmit the HDMI signal, bi-directional IR over single LAN cable up to 150m/450ft, the resolution up to 1080P@60hz, the transmitter with HDMI loop out and can support POC function, which only needs to power on one side with the DC power adapter. It can be popularly used in media conferencing room, school, government, cinema and so on applications.

inquiry

Product details

HDMI over CAT Extender Decoder Demo Video

HDMI over CAT Extender Introduction

This HDMI extender can transmit the HDMI signal, bi-directional IR over single LAN cable up to

150m/450ft, the resolution up to 1080P@60hz, the transmitter with HDMI loop out and can

support POC function, which only needs to power on one side with the DC power adapter.

It can be popularly used in media conferencing room, school, government, cinema and so on

applications.

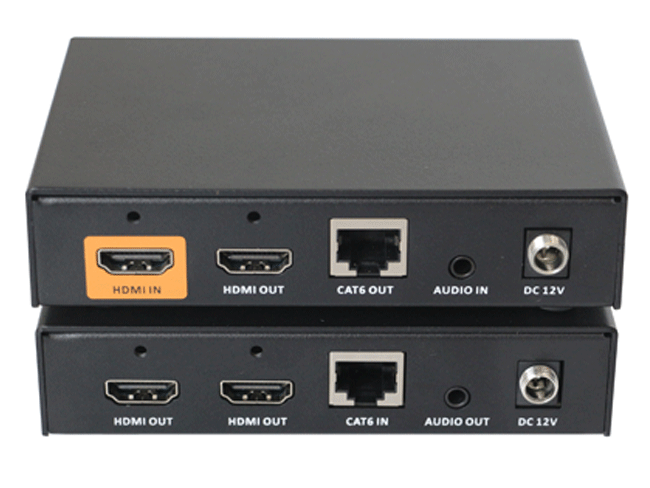

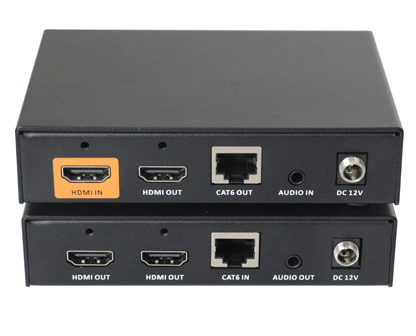

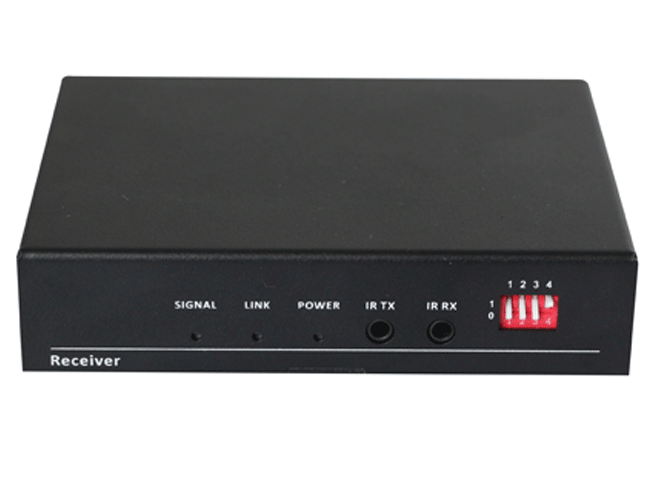

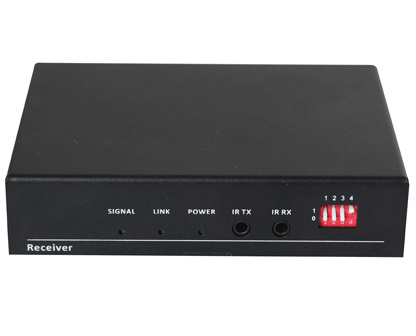

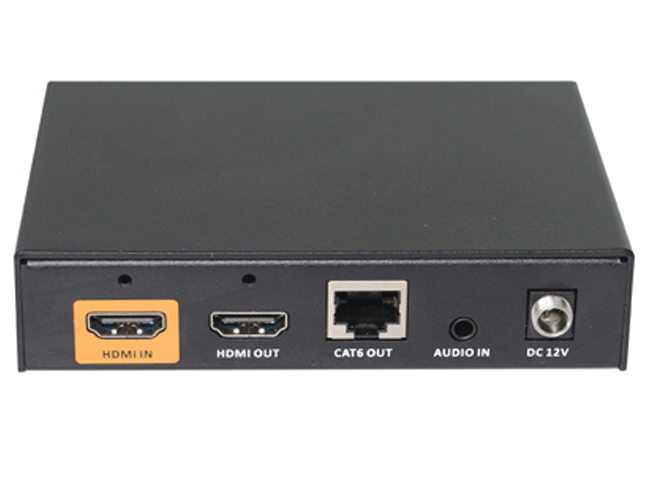

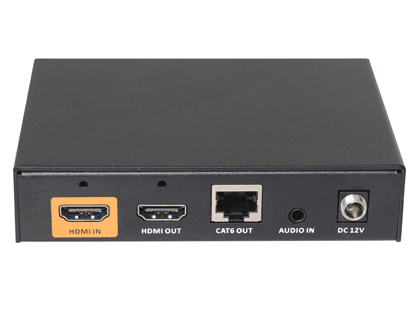

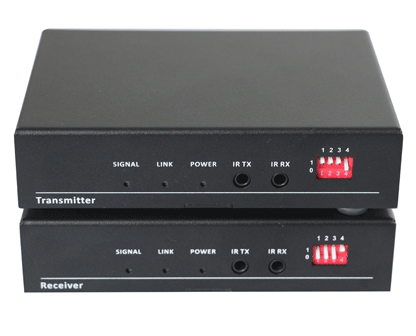

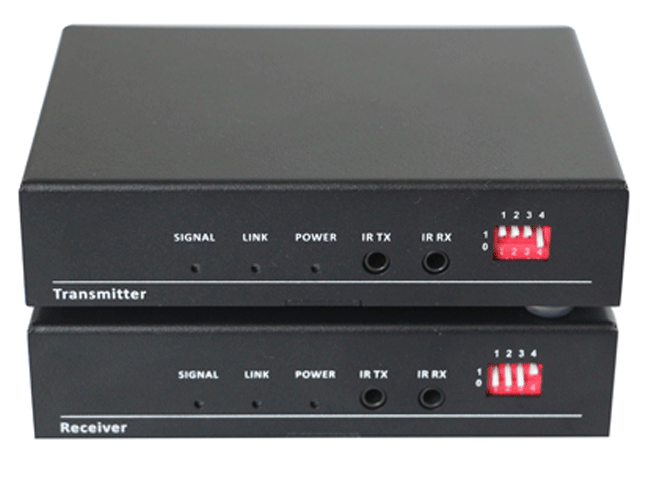

USB3.1/3.0 LC single model fiber extender pictures

HDMI over CAT Extender Features

· Support 1080p@60Hz;

· The distance up to 150m over single CAT5e/6/7, can be both STP or UTP cable

· The transmitter supports HDMI loop out

· Support bi-directional IR transmission

· DC power connector with screw to lock

· Front panel indicators for working and system status

HDMI over CAT Extender Technical Parameters

Tyoe	LHDT-HD-802TR
Input	1HDMI, 1IR-TX/ 1*CAT
Output	1HDMI, 1CAT / 2HDMI,1IR-RX
Portocol	HDMI1.3, HDCP 1.2
Resolution	1600x1200@60,1680x1050@60,1360x768@60,1400x1050@60,1440x900@60,1920x1200@60, 1280x768@60,1280x800@60,1280x960@60,1280x1024@60,1024x768@60,800x600@60, 640x480@60,1920x1080@60,1280x720@60,1280x720@50,1920x1080@50
Color space	1080p: 36Bit Deep Color 4K: 24Bit True Color, 4:2:2
Distance	150m(1080p60Hz) over single Cat5e/6/7
Product size(mm)	1208427
Weight(kg)	0.15
Power	DC12V1.5A
Consumption	4.4W
