4K60 Fixed 4x4 HDMI Matrix Switcher with seamless switch

This is a 4K60 seamless 4x4 HDMI matrix switcher with the user-friendly WEB GUI, APP control and video wall function. This matrix switchers have been widely used in the conferencing, radio&television project, multimedia conferencing hall, large screen display project, television teaching, command control center and so on applications.

inquiry

Product details

4K60 Fixed 4x4 HDMI Matrix Switcher demo video

4K60 Fixed 4x4 HDMI Matrix Switcher Introduction

This is a 4K60 seamless 4x4 HDMI matrix switcher with the user-friendly WEB GUI, APP control and video wall function.
This matrix switchers have been widely used in the conferencing, radio&television project, multimedia conferencing hall, large screen display project, television teaching, command control center and so on applications.

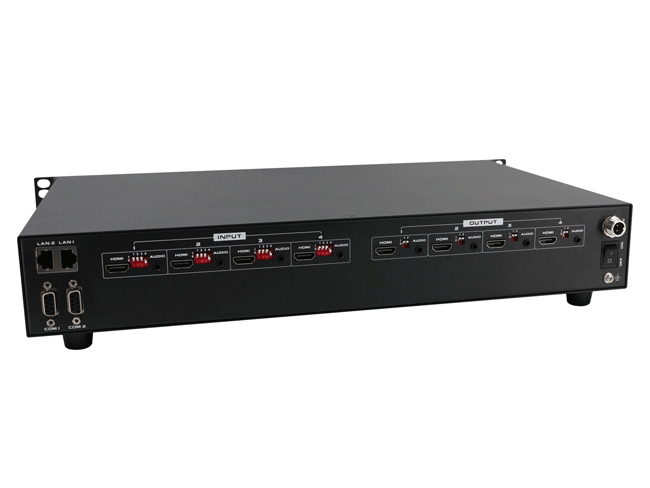

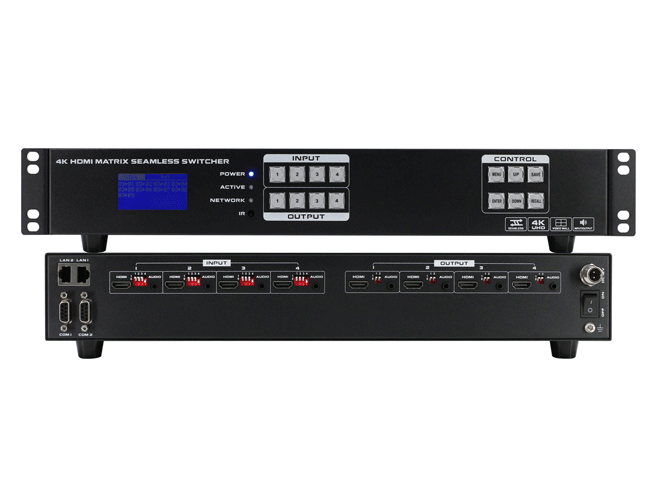

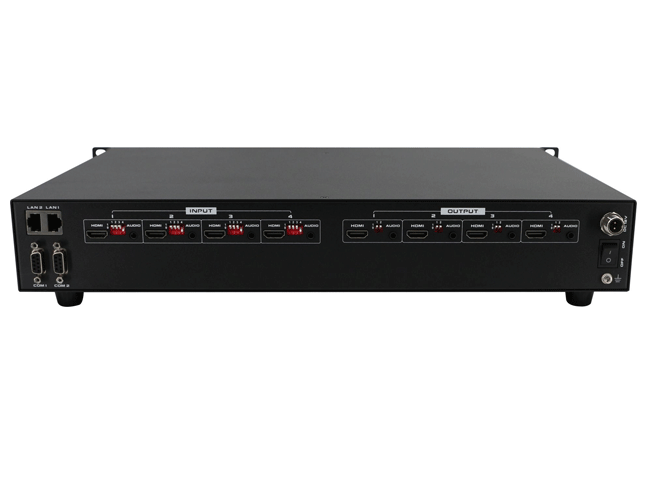

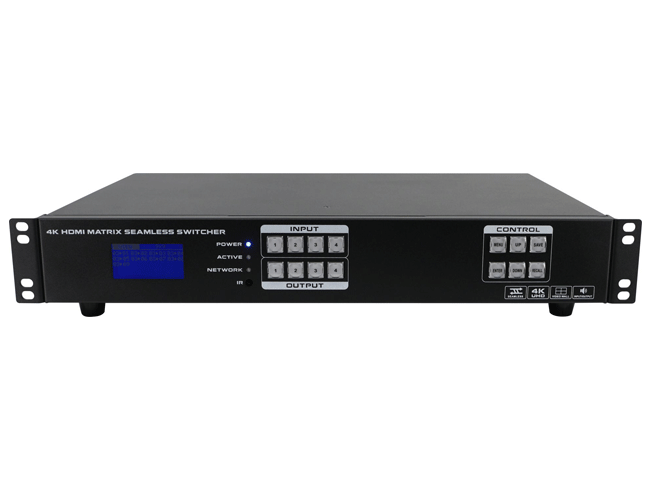

4K60 Fixed 4x4 HDMI Matrix Switcher pictures

4K60 Fixed 4x4 HDMI Matrix Switcher Features

· Fixed 1.5 U chassis height

· Supports 4 HDMI inputs with EDID management and 3.5mm audio embedded function

· Supports 4 HDMI outputs with 3.5mm audio de-embedded function

· The input and output resolution can up to 4K60

· Support Video wall and seamless switching with the 1080P and 4K60 cards

· Support dual LAN and RS232 ports for backup control

· Front buttons with background lights, easier to operate at any time

· Support auto saving protection and auto recovery function while power cut

4K60 Fixed 4x4 HDMI Matrix Switcher Technical Parameters

Tyoe	FIX-SVM-800P-4K60
Description	4K60 4x4 HDMI Matrix Switcher
Resolution	640×480---3840×2160@60Hz(VESA ), 480i---4K@60Hz
Input	4* HDMI inputs with 4* 3.5mm audio embedded ports
Output	4* HDMI outputs with 4* 3.5mm audio de-embedded ports
Standard Protocol	Supports HDMI1.4, HDCP1.4
Transmission distance	HDMI: 15m/40ft for 1080P, for 4K60 up to 10m/30ft
Controlling	iOS/Android Apps, WEB GUI, RS232 & Front buttons with background light
Weight	6kg/ 13.22lbs (No Cards)
Size	44027944 mm/17.32x10.98x1.73 Inch
Power Supply	AC: 110V—260V 50/60Hz
consumption	8.5W~45W when fully loaded
Working Temperature	0℃ ~50℃
Storage Temperature	-20℃ ~55℃
