AV over IP Decoder HD Extend KVM over IP matrix video wall 920

The AV over IP encoder(IPM-920T) and AV over IP decoder(IPM-920R) can work together to provide complete end-to-end streaming system or it can work with the network switch to realize a one to many, many to one and many to many systems.

inquiry

Product details

AV KVM Over IP Decoder Demo Video

AV KVM over IP Decoder Introduction

The encoder of AV over IP system(IPM-920T) and decoder of AV over IP system(IPM-920R) can work together to provide complete end-to-end streaming system or AV over IP system can work with the network switch to realize a one to many, many to one and many to many systems. AV over IP system can transmit the video, audio and RS232 signals together or separately over single LAN cable, with the POE function, the Rx and Tx can be powered by POE from a POE network switch, AV over IP system helps to make the installation more clean and professional. Except working as the matrix switch and distribution systems, AV over IP system also supports the video wall function with maximum configuration of 16x16 Video wall. The resolution of AV over IP system can up to 1920x 1080@60Hz.

AV over IP system system can support friendly-user control options, including RS232, IP control box, PC software, iPad APP control with Source&Videowall preview function. The decoder of AV over IP system also support the CEC/RS232 function to power on and off displays.

AV over IP system can be popularly used in the hospital, medical demonstration, school smart classroom, radio and television video production, shopping mall, hotels, command center, traffic emergency commandand corporate training, social service organizations including scenic spots, theaters, and airportsetc.

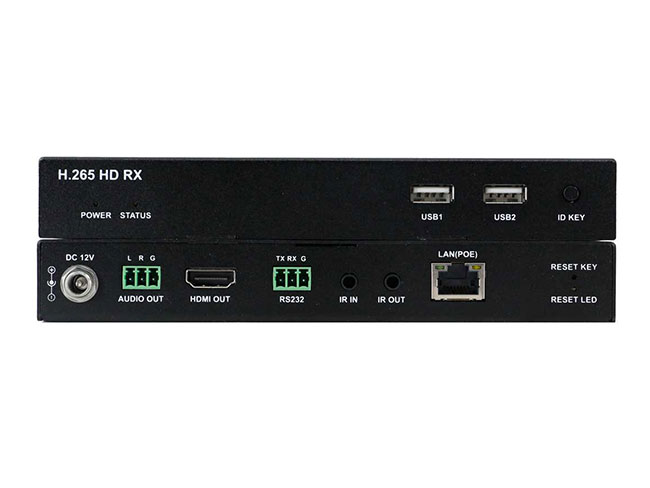

AV KVM over IP Decoder pictures

HDMI-over-IP-matrix-systems-1080P-AVC-over-IP-iPad-control&-Prerview-audio-visual-equipment-manufacturers2

AV KVM over IP Decoder Features

· Unlimited points of the Rx

· Create a PoE HD over IP matrix or Splitter

· Wireless iPad Real Time video preview

· Super easy drag-n-drop video wall steup

· Video wall supports up to a 16x16(256TVs)

· Zero Latency & Fast switching Time

· Separate audio & RS232 Pass-through

· HD Tx & Tx over IP W/ PoE to 330 feet input and output

AV KVM over IP Decoder Technical Parameters

Decoder

Video
Input Video Port	1 x LAN
Input Video Type	H.264/ H.265/ MPEG-4 AVC
Input Resolution	From 480p@60Hz to 1920x1080@60Hz
Output Video Port	1 x HD
Output Video Type	HD 1.3, HDCP 1.4
Output Resolution	640 x 480@60Hz, 480p@60Hz, 576P@50Hz, 800 x 600@60Hz, 1024 x 768@60Hz, 720p@50Hz, 720p@60Hz, 1280 x 800@60Hz, 1280 x 1024@60Hz, 1366 x 768@60Hz, 1400 x 1050@60Hz, 1440 x 900@60Hz, 1680 x 1050@60Hz, 1920 x 540@60Hz, 1080p@24Hz, 1080p@25Hz, 1080p@30Hz, 1080p@50Hz, 1080p@60Hz
Video Impendence	100 Ω
End-to-End Time Latency	When works with encoder: · About 50 ms (Low latency mode) · About 250 ms (High quality mode)
Audio
Input Audio Port	1 x LAN
Input Audio Format	Audio embedded in streaming media input
Output Audio Port	1 x Phoenix connector 1 x HD
Output Audio Format	LPCM 2.0
Control
Control Method	iPad APP
Control
Operating Temperature	+32°F ~ +113°F (0°C ~ +45°C) 10% ~ 90%, non-condensing
Storage Temperature	-4°F ~ 140°F (-20°C ~ +70°C) 10% ~ 90%, non-condensing
Power Supply	12 V 1 A DC
Power Consumption	6W (Max.)
ESD Protection	Human body model: · ±8kV (air-gap discharge) · ±4kV (contact discharge)
Surge Protection	Voltage: ±1 kV
Product Dimensions (W x H x D)	175 mm x 25 mm x 100.2 mm / 6.9'' x 0.98'' x 3.9''
Net Weight?	0.60kg/1.32lb
