4x4 HDMI matrix switcher is a new fixed 4K60 HDMI matrix switcher with 4 HDMI input ports and 4 HDMI output ports, 4x4 HDMI matrix switcher resolution can up to 4K60Hz and all ports are HDCP compliant.
inquiry

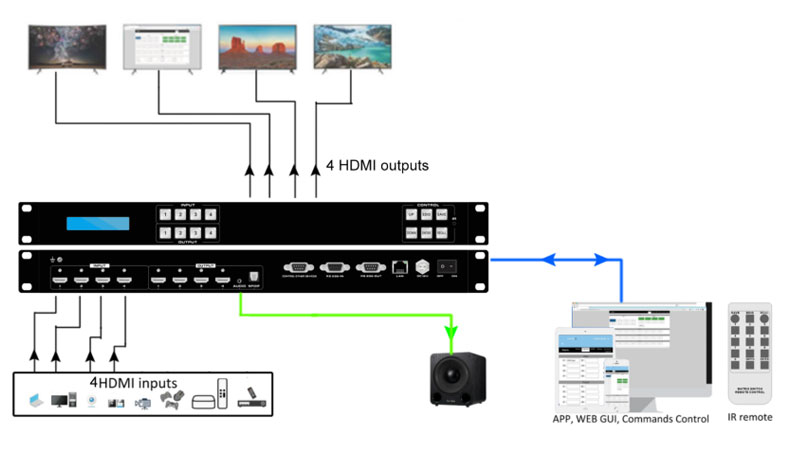

This is a new fixed 4K60 HDMI matrix switcher with 4 HDMI2.0 inputs and 4 HDMI2.0 outputs, the resolution can up to 4K60Hz and all ports are HDCP2.2 compliant. With the friendly user control methods by IR remote control, 2-Press push buttons with background blue light, WEB GUI, APP and RS232/UDP commands, 4x4 4K60 HDMI matrix switcher can work with the Blu-Ray Players, Set-Top boxes, Home Theater, and game consoles etc HDMI input sources to route to the HDMI displays, it has been widely used in different audio visual applications.
· 4 HDMI2.0 inputs
· 4 HDMI2.0 outputs with one independent 3.5mm/SPDIF audio
· Supports HDMI2.0, HDCP2.2
· The resolution can up to 4K@60Hz
· Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital and DTS-HD Master Audio
· Supports IR remote control(IR remote control codes are available)
· Supports smart EDID management, including 8-output EDID, 15 internal EDID
· Supports RS-232 and TCP/IP Control(WEB GUI, APP and IR remote)
· Supports 2-press push buttons control with blue lights
· Supports to rename the inputs and outputs, sences
| Name | FIXED 4K60 4x4 HDMI 2.0 Matrix Switcher With Audio |
| Resolution ratio | 480i, 576i, 480p, 576p, 720p, 1080i, 1080p@24/30/50/60Hz, 4K@60Hz |
| Input ports | 4 * HDMI ports, 1* RS-232(control), 1 * RJ-45(control) |
| Output ports | 4 * Female HDMI, 2* RS-232(control), 1*3.5mm/SPDIF audio |
| ESD Protection |
Human-body Model: ± 8kV (Air-gap discharge) ± 4kV (Air-gap discharge) |
| ESD Protection | 12 V/2 A DC (US/EU standards, CE/FCC/UL certified) |
| Controlling | Supports remote control, front buttons control, RS232, UDP, LAN control |
| Input voltage |
AC: 100VAC ~ 260VAC, 50/60 Hz DC:12V 2A |
| Dimension(mm) | 480 * 260 * 44( mm) |
| Weight | 4Kg |
| Operating Temperature | 0 ºC~40 ºC/32 ºF~104 ºF |
| Storage Temperature | −20 ºC~60 ºC/−4 ºF~140 ºF |
No.
Name
Qty
Unit
1
FIX-MANAGER-400A-4K60
1
Pcs.
2
DC 12V2A power adapter
1
Pcs
3
Remote Control
1
Pcs
