Modular HDMI matrix switcher 36x36 chassis with Video Wall EDID

FM-3600 is a modular matrix switcher, with 36 input slots and 36 output slots, so it can support maximum 36 inputs and 36 outputs, all the input and output cards are using 1-card 4-port, the signals are including the DVI, HDMI, HDBasT, Fiber Optic, 3G-SDI. Users are able to have mixed signals inputs and mixed signals outputs.

inquiry

Modular HDMI matrix switch 36x36 Introduction

Modular HDMI Matrix switcher 36x36 is a modular matrix switcher, with 36 input slots and 36 output slots, so

Modular HDMI Matrix switcher can support maximum 36 inputs and 36 outputs, all the input and output cards are using 1-card 4-port, the signals are including the DVI, HDMI, HDBasT, Fiber Optic, 3G-SDI. Users are able to have mixed signals inputs and mixed signals outputs.

Modular HDMI Matrix switcher single channel signal switching speed can reach 12.5Gbps, and modular HDMI Matrix switcher main board is using Four core four links processing technology, the switching ability speed can reach 32Gbps. With uncompressed transmission technology for the digital signal to make sure the image High fidelity output. Unique signal links shielding designing technology to make sure the signal completeness, modular HDMI Matrix switcherinternal data switch has super strong capacity of resisting disturbance and long continuous and stable working ability. Modular HDMI Matrix switcher supports 7*24 continuously working and with dual LAN and RS232 backup control, Modular HDMI Matrix switcher is convenient for users to control via PC, iPad, APP and the 3rd parties central control by the the RS232 control commands.
Modular HDMI Matrix switcher with the dual RS232 and LAN control, users also can simply set up and control the surrounding equipment, such as the projector, electric curtain and TVs.
Modular HDMI Matrix switcher have been widely used in the conferencing, radio&television project, multimedia conferencing hall, large screen display project, television teaching, command control center and so on applications

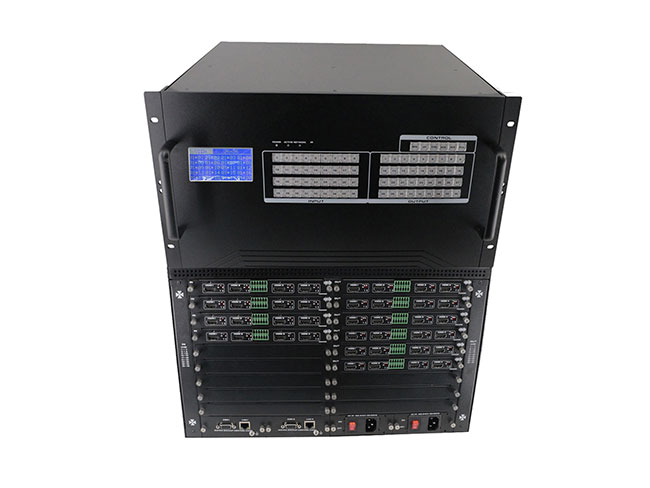

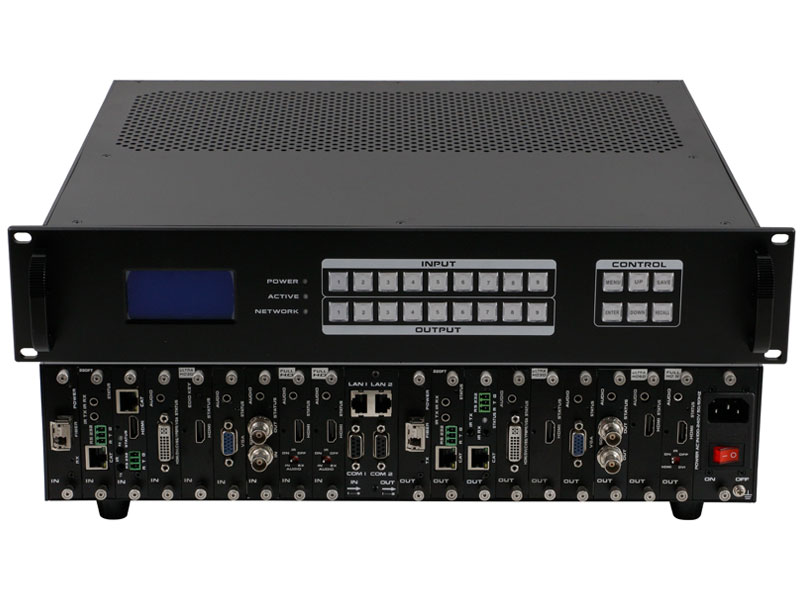

Modular HDMI matrix switch 36x36 pictures

  • central-control-Moudular-Matrix-Switcher
  • 4K60-1080P-HDMI-Seamless-Modular-Matrix-Switcher-with-video-wall-and-audio
  • 36x36-Modular-matrix-switcher-with-8x8-audio-processor-DSP+48V
  • 36x36-Modular-matrix-switcher-1080P-3G-SDI-Seamless



  • Modular HDMI matrix switch 36x36 Features

    · Modular designing chassis, with 36 input slots and 36 input slots

    · 1-card 4-port input and output card

    · Supports 1080P, 4K30 and 4K60 cards for selections

    · Supports DVI-I/ HDMI/ 3G-SDI/ HDBaseT/ Fiber to mix input and output

    · Support Video wall and seamless switching with the 1080P and 4K60 cards

    · Support 3.5mm audio embedded and de-embedd function

    · Support up/down scaling function via the DIP switch

    ·Support dual LAN and RS232 ports for backup control

    ·Front buttons with background lights, easier to operate at any time

    ·Support auto saving protection and auto recovery function while power cut

    Modular HDMI matrix switch 36x36 Technical Parameters

    Model FM-3600
    Description 36x36 modular matrix switcher
    Input 1-card 4-port input, including DVI/HDMI/VGA/CVBS/SDI
    Output Support DVI/HDMI/VGA/SDI/HDBaseT output
    Protocol Support HDMI1.4,HDMI2.0, DVI1.0, HDCP1.4,HDCP2.2
    Color Space
    Support RGB444, YUV444, YUV422 , x.v.C standard color extension
    Resolution 640×480---3840×2160@60Hz(VESA ), 480i---4K@60Hz(HDTV )
    Distance
    HDMI/DVI: 15m/40ft ; HDBaseT: 70m/220ft; Fiber: 2km/6000ft
    Control
    iOS/Android Apps, WEB GUI, RS232 & Front buttons with background light
    Dimension 6U, 482*405*267(mm)/ 18.97*15.35*10.5(inch)
    Weight 20kg/ 44lbs (No Cards)
    Power Supply AC:100-240V 50/60Hz
    Power consumption ≤35W(no cards)
    Working Temperature 0℃-50℃
    Storage Temperature ﹣20℃-55℃

    Modular HDMI matrix switch 36x36 Input and output cards

    Modular HDMI Matrix switcher FM-36 support DVI, HDMI, HDBaseT, Fiber Optic, 3G-SDI signals touch-manager-cards

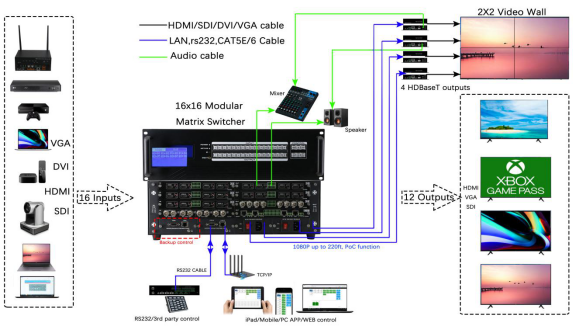

    Modular HDMI matrix switch 36x36 Connection diagram

    Modular HDMI Matrix switcher FM-36 support DVI, HDMI, HDBaseT, Fiber Optic, 3G-SDI signals connection diagram
