HDBT-WALL-HDV-70/100T

HDBaseT Wallplate transmitter which supports 1*HDMI and 1*VGA+3.5mm audio 1*DisplayPort inputs, bi-directional IR over single HDBaseT(RJ45) output. It also supports three working modes: Manual, Auto or Priority.

inquiry

Introduction

HDBT-WALL-HDV-70/100T is an HDBaseT Wallplate transmitter which supports 1*HDMI and 1*VGA+3.5mm audio 1*DisplayPort inputs, bi-directional IR over single HDBaseT(RJ45) output. It also supports three working modes: Manual, Auto or Priority. The resolution can up to 4k@30hz, with the POC(power over cable) function, users can only power on the HDBaseT receiver. It also supports bi-directional IR.
It can up to 220ft/70m at 1080P60, 110ft/35m at 4K30 via Cat5e/Cat6. It's popularly used in the small meeting room, classroom or other long distance transmission applications.

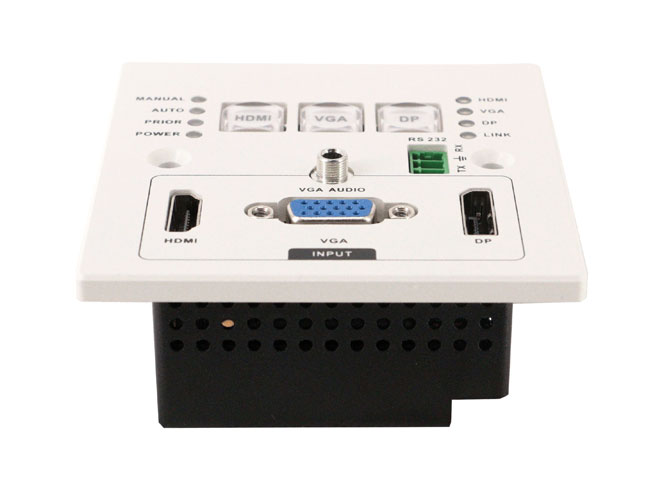

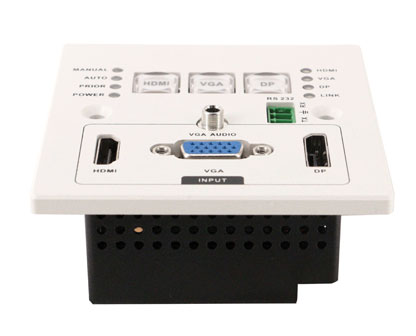

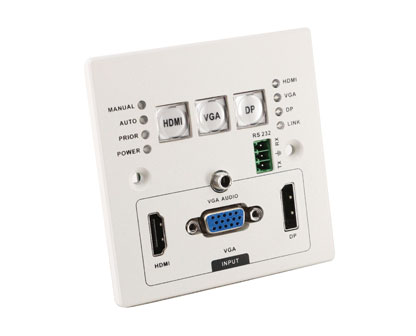

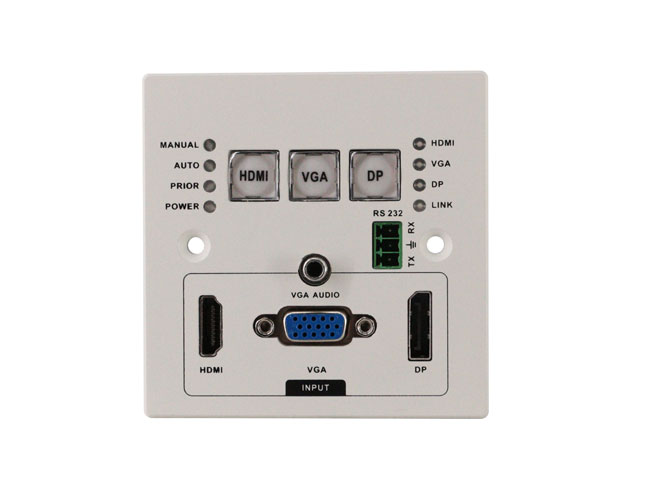

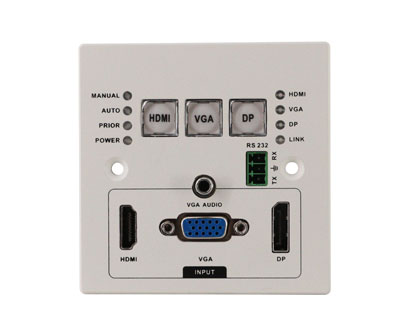

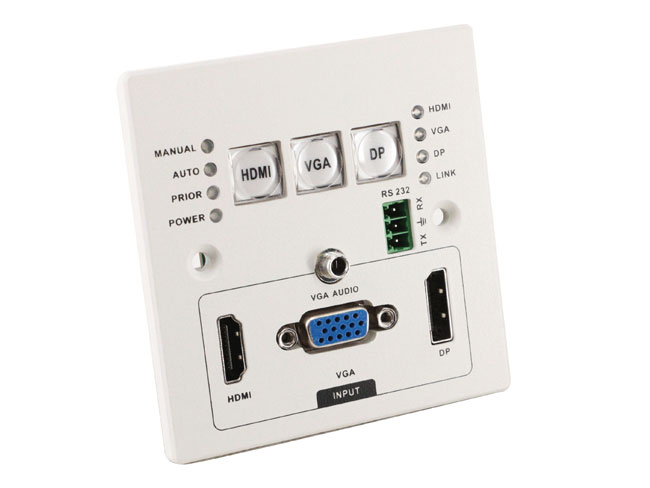

Real shot products

  • HDMI+VGA-HDBaseT-Extender
  • 4K-displayport-wall-plate-HDMI
  • HDMI-wall-plate-HDBaseT-Extender
  • HDMI+VGA-HDBaseT-Extender-back



  • Features

    · DisplayPort+HDMI+VGA HDBaseT Wallplate Transmitter

    · Supports 1080P 3D, and resolution up to 4K30

    · Transmission distance up to 70/100m 220/330ft(1080P60) or 35/70m 110/220ft(4K30)

    · Supports bi-directional IR

    · Supports PC software preset via RS232

    · Supports POC(power over Cable), POE function

    · Supports switch buttons, RS232, touch switch and automatic switch, LED working indicator

    Technical Parameters

    Tyoe HDBT-WALL-HDV-70/100T-M
    Input 1×HDMI, 1×DP, 1×DP,1×VGA,1×3.5mm Audio,1×RS232
    Output 1×HDBaseT
    Standard Protocol Supports HDMI1.4 and HDCP1.4
    Resolution Up to 4K60Hz(4:2:0)
    Control 1×RS232, push buttons, auto detection/switch
    Distance 70/100m(220/330feet) at 1080P ; 35/70m(110/220feet) at 4K60(4:2:0) over single Cat6/6a/7 cable
    Dimension US Panel size:115*140*40mm/ 4.52*5.51*1.57inch

    UK Panel size:88*88*40mm/3.46*3.46*1.57inch

    Weight 100g/0.22lbs
    Power Supply AC:100-240V 50/60Hz 1.5A Max  DC:12V 1500mA
    Power consumption ≤12W
    Working Temperature 0℃-50℃
    Storage Temperature ﹣20℃-55℃

    Connection diagram

    4K-HDBaseT-wall-plate-HDMI&VGA&DP-inputs-connection-diagram
