HDMI Eextender HDBaseT Wallplate Receiver 4K60 1080P video and audio visual equipment manufacturers

HDMI Eextender 4K60 70M HDBaseT Wallplate Receiver 1080P 100M

HDMI Eextender HDBaseT Wallplate Receiver an HDBaseT Wallplate Receiver which supports 1*HDMI input and LED indicators, the resolution can up to 4k@30hz, with the POC(power over cable) and POE function

inquiry

Product details

Introduction

HDMI Eextender HDBaseT Wallplate Receiver is an HDBaseT Wallplate Receiver which supports 1*HDMI input and LED indicators, the resolution can up to 4k@30hz, with the POC(power over cable) and POE function. Users can only power on the HDBaseT receiver, for the transmission distance HDMI Eextender HDBaseT Wallplate Receiver can up to 70m at 1080P60, and for 4K30Hz it can up to 35m over single Cat5e/6/7 cable. HDMI Eextender HDBaseT Wallplate Receiver is popularly used in the small meeting room, classroom or other long distance transmission applications.

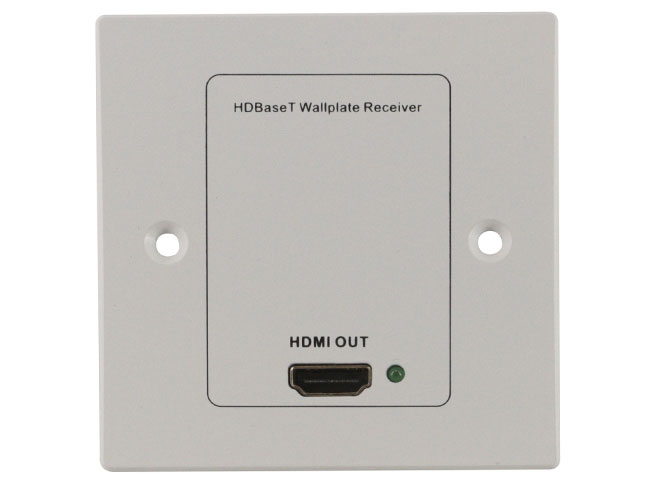

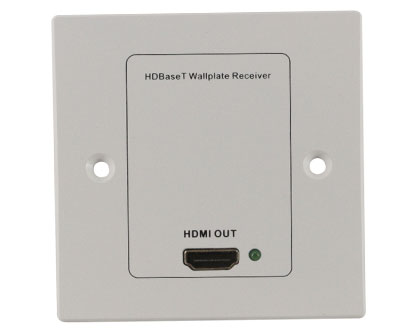

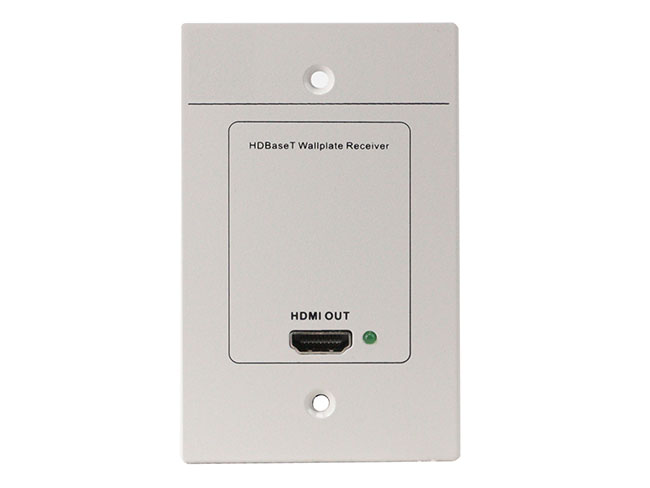

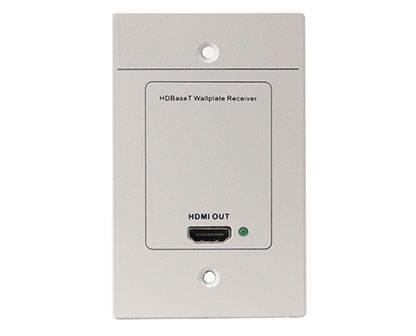

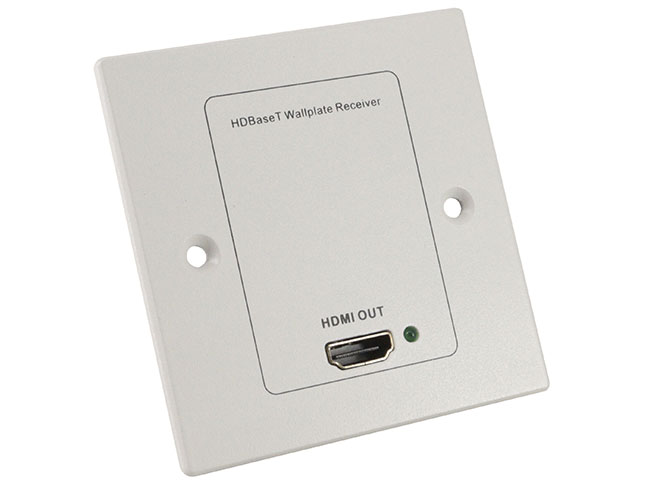

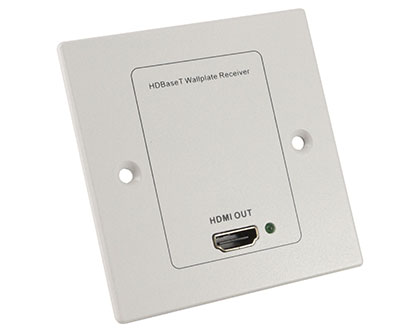

Real shot products

HDMI-Eextender-HDBaseT-Wallplate-Receiver-4K60-1080P

4K60-70m-HDMI-Eextender-HDBaseT-Wallplate-Receiver-1080P-100m

HDMI-Eextender-HDBaseT-Wallplate-Receiver-4K60-1080P-70m-100m

HDMI-Eextender-4K60-HDBaseT-Wallplate-Receiver--1080P

Features

· Support HDBaseT input and HDMI Output

· Supports HDCP 1.4

· Transmission distance up to 70/100m 220/330ft(1080P60) or 35/70m 110/220ft(4K30)

· Supports bi-directional IR

· Supports PC software preset via RS232

· Supports POC(power over Cable), POE function

· LED working indicator

Technical Parameters

Tyoe	HDBT-WALL-HD-70R/100R-86
Input	1×HDBaseT(RJ45)
Output	1×HDMI
Standard Protocol	Supports HDMI1.4 and HDCP1.4
Resolution	Up to 4K60Hz(4:2:0)
Distance	70/100m(220/330feet) at 1080P ; 35/70m(110/220feet) at 4K60（4:2:0) over single Cat6/6a/7 cable
Dimension	US Panel size:11514040mm/ 4.525.511.57inch UK Panel size:888840mm/3.463.461.57inch
Weight	200g/0.45lbs
Power Supply	DC：12V 1500mA
Power consumption	≤12W
Working Temperature	-10℃-40℃
Storage Temperature	﹣25℃-55℃
