AV over IP system Unlimited numbers IPM-920TR

The AV over IP encoder(IPM-920T) and AV over IP decoder(IPM-920R) can work together to provide complete end-to-end streaming system or it can work with the network switch to realize a one to many, many to one and many to many systems.

inquiry

Introduction

The encoder of AV over IP system(IPM-920T) and decoder of AV over IP system(IPM-920R) can work together to provide complete end-to-end streaming system or AV over IP system can work with the network switch to realize a one to many, many to one and many to many systems. AV over IP system can transmit the video, audio and RS232 signals together or separately over single LAN cable, with the POE function, the Rx and Tx can be powered by POE from a POE network switch, AV over IP system helps to make the installation more clean and professional. Except working as the matrix switch and distribution systems, AV over IP system also supports the video wall function with maximum configuration of 16x16 Video wall. The resolution of AV over IP system can up to 1920x 1080@60Hz.

AV over IP system system can support friendly-user control options, including RS232, IP control box, PC software, iPad APP control with Source&Videowall preview function. The decoder of AV over IP system also support the CEC/RS232 function to power on and off displays.

AV over IP system can be popularly used in the hospital, medical demonstration, school smart classroom, radio and television video production, shopping mall, hotels, command center, traffic emergency commandand corporate training, social service organizations including scenic spots, theaters, and airportsetc.

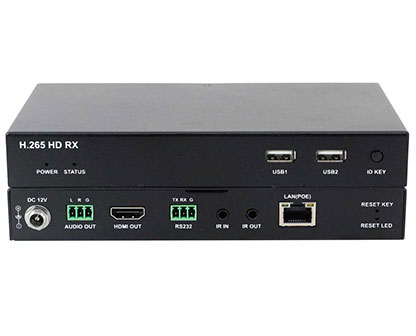

Real shot products

  • AV-over-IP-systerm-HDMI-Over-IP-matrix-systems-unlimited-numbers-audio-visual-equipment-manufacturers
  • AV over IP system unlimited numbers audio-visual-equipment-manufacturers
  • unicast-1080P-AVC-over-IP-iPad-control&-Prerview-HDMI-over-IP-matrix-systems audio-visual-equipment-manufacturers
  • AV-over-IP-systerm-HDMI-over-IP-matrix-systems-audio-visual-equipment-manufacturers



  • Features

    · Unlimited points of the Tx+Rx

    · Create a PoE HDMI over IP matrix or Splitter

    · Wireless iPad Real Time video preview

    · Super easy drag-n-drop video wall steup

    · Video wall supports up to a 16x16(256TVs)

    · Zero Latency & Fast switching Time

    · Separate audio & RS232 Pass-through

    · HDMI Tx & Tx over IP W/ PoE to 330 feet input and output

    Technical Parameters

    Tyoe IPM-920TR
    Description AV over IP system(HDMI Over IP Matrix) unlimited numbers
    Video
    Input AV over IP system unlimited numbers

    Input Video Type

    HDMI 1.3, HDCP 1.4

    Input Resolution

    640 x 480@60Hz, 480p@60Hz576i@50Hz, 576P@50Hz, 800 x 600@60Hz, 1024 x 768@60Hz, 720p@50Hz, 720p@60Hz, 1280 x 800@60Hz,

    1280 x 1024@60Hz, 1360 x 768@60Hz,

    1366 x 768@60Hz, 1400 x 1050@60Hz,

    1440 x 900@60Hz, 1680 x 1050@60Hz,

    1920 x 540@60Hz, 1080i@50Hz, 1080i@60Hz, 1080p@50Hz, 1080p@60Hz


    Input Video Signal

    0.5~1.2 V p-p


    Encoding Data Rate

    Encoding Data Rate

    Output Video Port


    1 x LAN

    Output Video Type

    H.264/MPEG-4 AVC


    Output Resolution

    Large IP stream: from 480p@60Hz to 1920 x 1080@60Hz

        Small IP stream: 352x288@5Hz

    Video Impendence

    100 Ω

    Input DDC Signal

    5 V p-p (TTL)

    End-to-End Time Latency

    When works with decoder:

    About 50 ms (Low latency mode)

    About 250 ms (High quality mode)

    Audio

    Input Audio Port

    1 x HDMI


    Input Audio Port

    LPCM 2.0


    Output Audio Port

    1 x 3-pin Phoenix connector

    Output Audio Format

    Stereo

    Control

    Control Method

    IP Control Box (IPM-MG), PC configurator, iPad on iPad

    General

    Operating Temperature

    +32°F ~ +113°F (0°C ~ +45°C)

    10% ~ 90%, non-condensing

    Storage Temperature



    -4°F ~ 140°F (-20°C ~ +70°C)

    10% ~ 90%, non-condensing

    Power Supply

    12 V 1 A DC


    Power Consumption

    6W (Max.)

    ESD Protection

    Human body model:

    ±8kV (air-gap discharge)

    ±4kV (contact discharge)

    Surge Protection

    Voltage: ±1 kV


    Product Dimensions

    (W x H x D)

    175 mm x 25 mm x 100.2 mm / 6.9'' x 0.98'' x 3.9''

    Net Weight

    0.60kg / 1.32lb



    Decoder

    Video
    Input Video Port 1 x LAN
    Input Video Type H.264/ H.265/ MPEG-4 AVC
    Input Resolution From 480p@60Hz to 1920x1080@60Hz
    Output Video Port 1 x HDMI
    Output Video Type HDMI 1.3, HDCP 1.4
    Output Resolution 640 x 480@60Hz, 480p@60Hz, 576P@50Hz,
    800 x 600@60Hz, 1024 x 768@60Hz, 720p@50Hz, 720p@60Hz, 1280 x 800@60Hz, 1280 x 1024@60Hz,
    1366 x 768@60Hz, 1400 x 1050@60Hz,
    1440 x 900@60Hz, 1680 x 1050@60Hz,
    1920 x 540@60Hz, 1080p@24Hz, 1080p@25Hz, 1080p@30Hz, 1080p@50Hz, 1080p@60Hz
    Video Impendence 100 Ω
    End-to-End Time Latency When works with encoder:
    · About 50 ms (Low latency mode)
    · About 250 ms (High quality mode)
    Audio
    Input Audio Port 1 x LAN
    Input Audio Format Audio embedded in streaming media input
    Output Audio Port 1 x Phoenix connector
    1 x HDMI
    Output Audio Format LPCM 2.0
    Control
    Control Method iPad APP
    Control
    Operating Temperature +32°F ~ +113°F (0°C ~ +45°C)
    10% ~ 90%, non-condensing
    Storage Temperature -4°F ~ 140°F (-20°C ~ +70°C)
    10% ~ 90%, non-condensing
    Power Supply 12 V 1 A DC
    Power Consumption 6W (Max.)
    ESD Protection Human body model:
    · ±8kV (air-gap discharge)
    · ±4kV (contact discharge)
    Surge Protection Voltage: ±1 kV
    Product Dimensions
    (W x H x D)
    175 mm x 25 mm x 100.2 mm / 6.9'' x 0.98'' x 3.9''
    Net Weight? 0.60kg/1.32lb

    Connection diagram

    Matrix Switcher

    Matrix SwitcherVideo Wall

    Video WallConnection diagram
