USB3.1/3.0 LC single model fiber extender

This USB3.1&3.0 optical fiber extender adopts optical fiber conversion technology to realize the optical fiber transmission of USB3.1&3.0 signals. It is convenient for users to use for long-distance transmission of USB3.1&3.0 signals, single-mode or multimode OM3 LC fiber cable. For the real-time moving transmission, the distance up to 100m; and for the data transmission, it can up to 300m. This product is NOT compatible with USB2.0 and USB1.1, ONLY for the USB3.1 and USB3.0, if need to support the down version compatible, please choose another moel. This product adopts optical fiber transmission and has good anti-electromagnetic interference ability.

inquiry

Product details

USB3.1/3.0 LC single model fiber extender Decoder Demo Video

USB3.1/3.0 LC single model fiber extender Introduction

This USB3.1&3.0 optical fiber extender adopts optical fiber conversion technology to realize the optical

fiber transmission of USB3.1&3.0 signals. It is convenient for users to use for long-distance transmission

of USB3.1&3.0 signals, single-mode or multimode OM3 LC fiber cable. For the real-time moving

transmission, the distance up to 100m; and for the data transmission, it can up to 300m.

This product is NOT compatible with USB2.0 and USB1.1, ONLY for the USB3.1 and USB3.0,

if need to support the down version compatible, please choose another moel.
This product adopts optical fiber transmission and has good anti-electromagnetic interference ability.

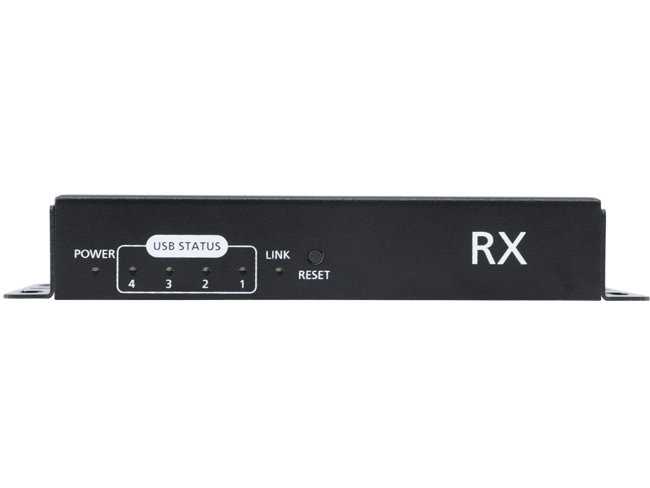

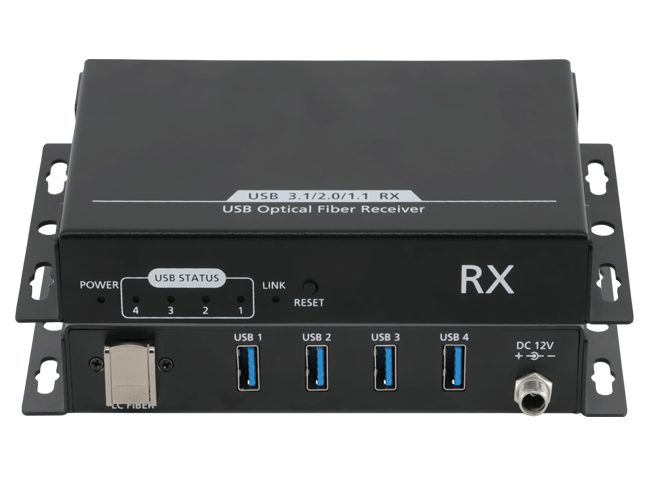

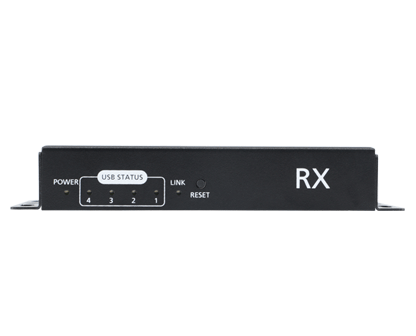

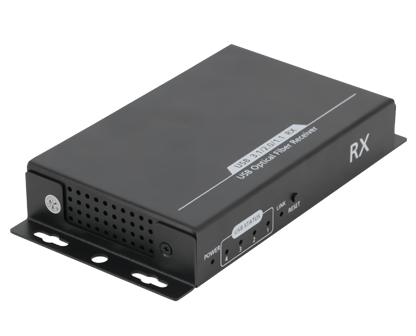

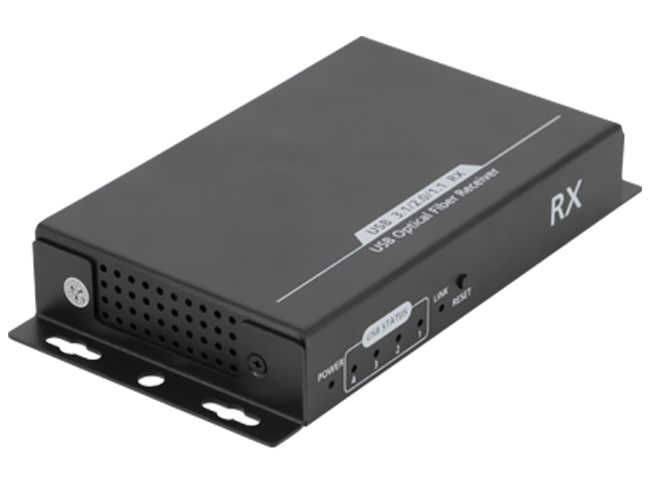

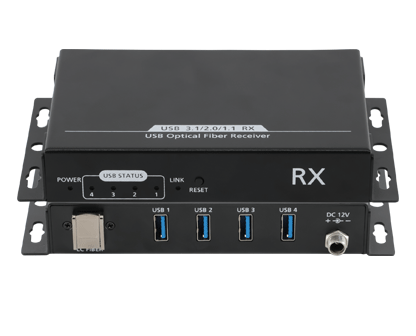

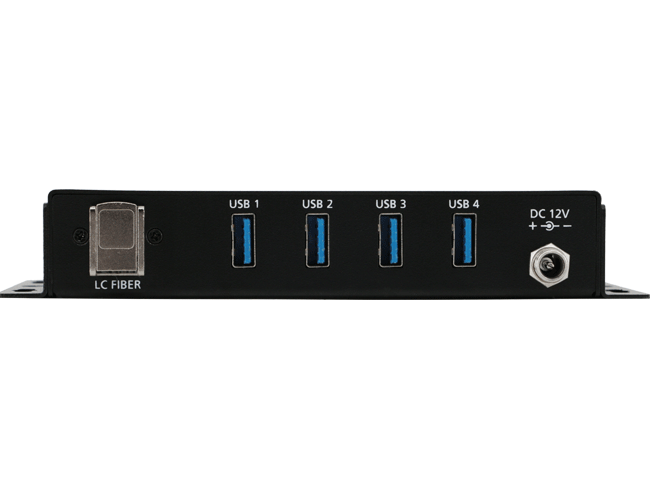

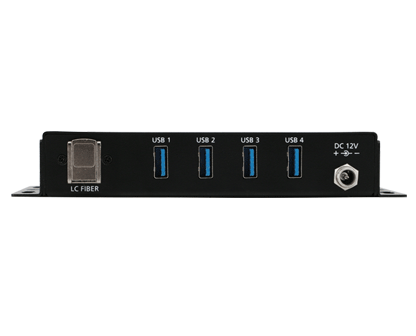

USB3.1/3.0 LC single model fiber extender pictures

USB3.1/3.0 LC single model fiber extender Features

· USB3.1/3.0 transmission extender kit;

· Support single-mode or multimode OM3 LC fiber cable

· For the data, it can transmit up to 300m/900ft

· For the image, it can transmit up to 100m/330ft

· Support plug&play

USB3.1/3.0 LC single model fiber extender Technical Parameters

Tyoe	FIBER-USB3-300TR
Description	USB3.0 host fiber transmitter/ USB3.0 Fiber receiver
USB port	1USB TYPE-A(Male) / 4USB TYPE-A(Female)
Fiber port	1*LC fiber
Dimensions	6222.510.6 (mm)/ 1358526(mm)
Bandwidth speed	USB3.1 Gen1, 5Gbps
Working Temp	-10°C~60°C
Working Humidity	20%~80%
