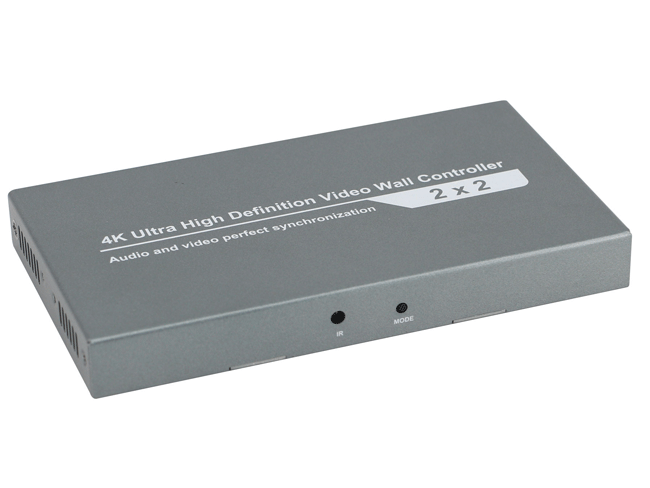

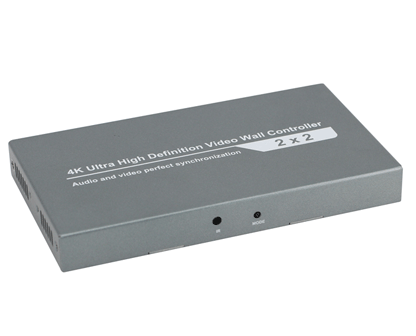

This 2X2 video wall controller supports 1 HDMI input and 4 HDMI outputs, and its main function is to divide a complete HDMI high-definition image signal into 9 blocks and distribute them to 4 video display units (such as rear projection units, LCD TVs, etc.), to create a dynamic image large screen with 4 HDMI high-definition video display units.
inquiry
This 2X2 video wall controller supports 1 HDMI input and 4 HDMI outputs, and its main function is to divide a complete HDMI high-definition image signal into 9 blocks and distribute them to 4 video display units (such as rear projection units, LCD TVs, etc.), to create a dynamic image large screen with 4 HDMI high-definition video display units.
· Supports 2 HDMI inputs, resolution up to 4K30
· Supports image 180 degrees rotation(good for the ceiling installation)
· Supports 4 HDMI with 1080P60 resolution outputs
· Supports multiple splicing ways: 2x2, 1x4, 4x1, 1x3;
· Supports the splicing edge adjustment;
·Supports HDMI 1.4, HDCP compatible

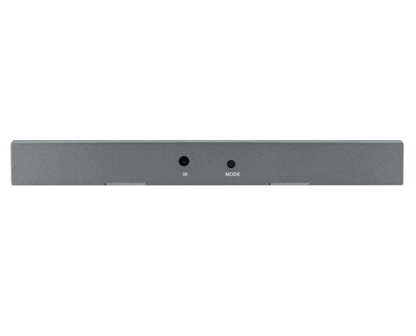

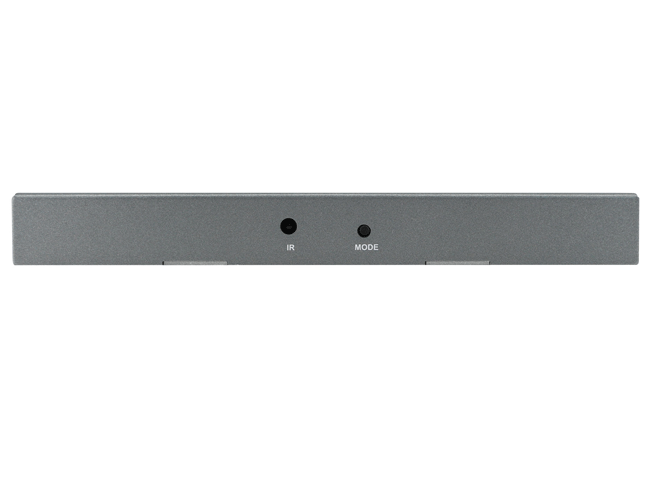

·Supports the IR remote and push-button control
|
Specifications name |
Detail parameters |
| control |
Front buttons, remote control |

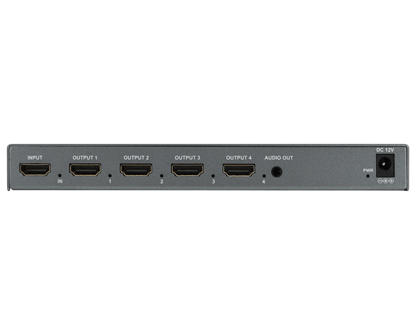

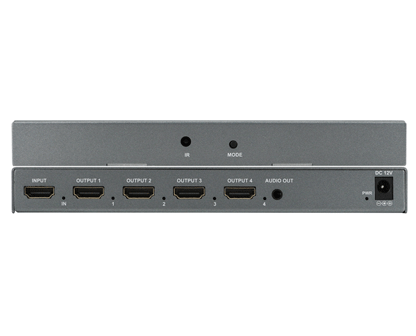

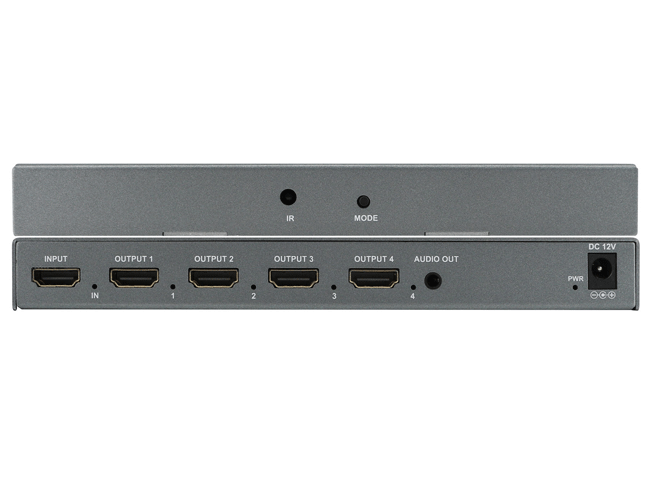

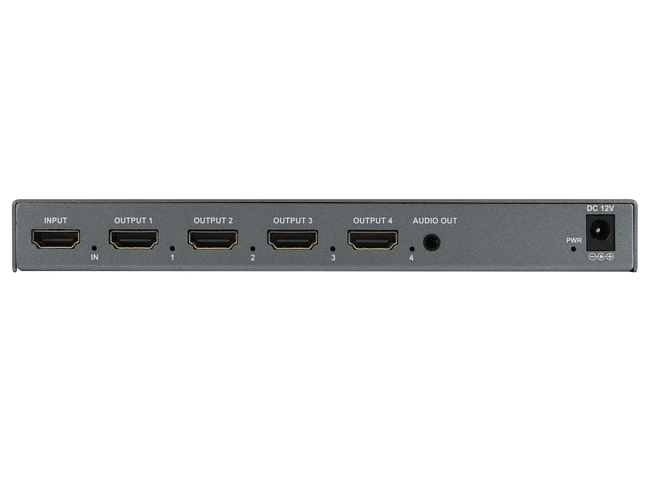

| Input |
2* HDMI(up to 4K30 resolution) |
| Output |
4*HDMI(up to 1080P60) |
|
Display splice mode |
2x2, 1x4, 4x1, etc... |
|
Resolution |
Input: 1920X1080,1920X2160,1920X3240,1920X4320,3840X1080,3840X2160,5760X1080, 7680X1080 Output: 1920*1200@60Hz
|
| Dimension |
240*167*27(mm)/ 9.45*6.58*1.07(inch)
|
|
Weight |
2.5KG/ 5.5lbs
|
|
Power Supply |
DC 12V3A
|
|
Consumption |
≤10W |
|
Working Humidity |
10%-90% |
|
Temperature |
-10℃ to 50℃
|
|
Storage |
-25℃ to 55℃
|
