  • 4K 1080P Modular Matrix Switcher 8x8 with Video Wall App control

4K 1080P Modular Matrix Switcher 8x8 with Video Wall App control

This is a modular matrix switcher, with 8 input slots and 8 output slots, so it can support maximum 8 inputs and 8 outputs, all the input and output cards are using 1-card 4-port, the signals are including the DVI, HDMI, HDMIBasT, Fiber Optic, 3G-SDI. Users are able to have mixed signals inputs and mixed signals outputs.

inquiry

Modular HDMI matrix switch 8X8 Introduction

This is a modular matrix switcher, with 8 input slots and 8 output slots, so it can support maximum 8 inputs and 8 outputs, all the input and output cards are using 1-card 4-port, the signals are including the DVI, HDMI, HDMIBasT, Fiber Optic, 3G-SDI. Users are able to have mixed signals inputs and mixed signals outputs.

The single channel signal switching speed can reach 12.5Gbps, and the main board is using Four core four links processing technology, the switching ability speed can reach 32Gbps. With uncompressed transmission technology for the digital signal to make sure the image High fidelity output. Unique signal links shielding designing technology to make sure the signal completeness, the internal data switch has super strong capacity of resisting disturbance and long continuous and stable working ability. Supports 7*24 continuously working and with dual LAN and RS232 backup control, it’s convenient for users to control via PC, iPad, APP and the 3rd parties central control by the the RS232 control commands.

With the dual RS232 and LAN control, users also can simply set up and control the surrounding equipment, such as the projector, electric curtain and TVs.

This matrix switchers have been widely used in the conferencing, radio&television project, multimedia conferencing hall, large screen display project, television teaching, command control center and so on applications.

Modular HDMI matrix switch 8X8 pictures

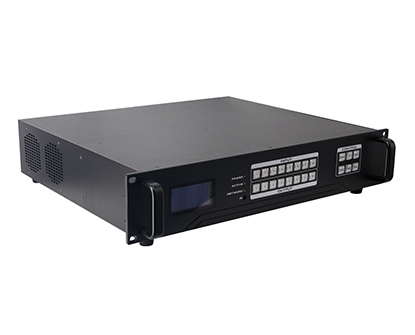

Modular Video matrix switcher 8x8 support DVI, HDMI, HDMIBaseT, Fiber Optic, 3G-SDI signals
Modular Video matrix switcher 8x8 support DVI, HDMI, HDMIBaseT, Fiber Optic, 3G-SDI signals
Modular Video matrix switcher 8x8 support DVI, HDMI, HDMIBaseT, Fiber Optic, 3G-SDI signals
Modular Video matrix switcher 8x8 support DVI, HDMI, HDMIBaseT, Fiber Optic, 3G-SDI signals

Modular HDMI matrix switch 8X8 Features

· Modular designing chassis, with 8 input slots and 8 output slots

· 1-card 4-port input and output card

· Supports 1080P, 4K30 and 4K60 cards for selections

· Supports DVI-I/ HDMI/ 3GSDI/ HDMIBaseT/ Fiber to mix input and output

· Support Video wall and seamless switching with the 1080P and 4K60 cards

· Support 3.5mm audio embedded and de-embedd function

· Support up/down scaling function via the DIP switch

· Support dual LAN and RS232 ports for backup control

· Front buttons with background lights, easier to operate at any time

· Support auto saving protection and auto recovery function while power cut

Modular HDMI matrix switch 8X8 Technical Parameters

Model FM-800
Description 8x8 modular matrix switcher
Input 1-card 4-port input, including DVI/HDMI/VGA/CVBS/YPbPr/SDI/ HDMIBaseT/Fiber
Output Support DVI/HDMI/VGA/CVBS/YPbPr/SDI/HDMIBaseT/Fiber Otpic output
Protocol Standard 1-card 4-port output, including DVI/HDMI/VGA/CVBS/YPbPr/SDI/ HDMIBaseT/Fiber
Color Space Support RGB444, YUV444, YUV422 , x.v.C standard color extension
Resolution 640×480---3840×2160@60Hz(VESA ), 480i---4K@60Hz(HDMITV )
Distance HDMI/DVI: 15m/40ft ; HDMIBaseT: 70m/220ft; Fiber: 2km/6000ft
Control iOS/Android Apps, WEB GUI, RS232 & Front buttons with background light
Power AC: 110V—260V 50/60Hz
Consumption 15W(No Cards)
Dimension 2U, 482*405*89(mm)/ 18.97*15.35*3.51(inch)
Weight 6kg/ 13.22lbs (No Cards)
Work Temperature 0℃ ~50℃
Storage Temperature -20℃ ~55℃

Modular HDMI matrix switch 8X8 input and output card


Modular HDMI matrix switch 8X8 Connection diagram

4K-1080P-Modular-Matrix-Switcher-8x8-with-Video-Wall-App-control-Connection-Diagram
