Modular HDMI matrix switch 36x36 touch screen chassis Video wall

This is a modular matrix switcher, with 36 input slots and 36 output slots, so it can support maximum 36 inputs and 36 outputs, all the input and output cards are using 1-card 1-port, the signals are including the DVI, HDMI, HDBaseT, Fiber Optic, 3G-SDI. Users are able to have mixed signals inputs and mixed signals outputs.

inquiry

Modular Matrix Switch 36x36 plus Introduction

This is a modular matrix switcher, with 36 input slots and 36 output slots, so it can support maximum 36 inputs and 36 outputs, all the input and output cards are using 1-card 1-port, the signals are including the DVI, HDMI, HDBaseT, Fiber Optic, 3G-SDI. Users are able to have mixed signals inputs and mixed signals outputs.

The single channel signal switching speed can reach 12.5Gbps, and the main board is using Four core four links processing technology, the switching ability speed can reach 32Gbps. With uncompressed transmission technology for the digital signal to make sure the image High fidelity output. Unique signal links shielding designing technology to make sure the signal completeness, the internal data switch has super strong capacity of resisting disturbance and long continuous and stable working ability. Supports 7*24 continuously working and with dual LAN and RS232 backup control, it’s convenient for users to control via PC, iPad, APP and the 3rd parties central control by the the RS232 control commands.

With the dual RS232 and LAN control, users also can simply set up and control the surrounding equipment, such as the projector, electric curtain and TVs.

Modular Matrix Switch 36x36 plus pictures

Modular Video matrix switcher 36x36 support DVI, HDMI, HDBaseT, Fiber Optic, 3G-SDI signals
4K60 Modular seamless Video matrix switcher 36x36 with Video wall processor,Scaling, Apps & Separate Audio
4U seamless Matrix switcher 36x36 modular chassis support HDBasT 100m and POC function
4K60Hz 36x36 HDMI Matrix Switcher w/Video Wall Processor, Scaling, Apps & Separate Audio

Modular Matrix Switch 36x36 plus Features

· Modular designing chassis, with 36 input slots and 36 output slots

· 1-card 1-port input and output card

· Supports 1080P, 4K30 and 4K60 cards for selections

· Supports DVI-I/ HDMI/ 3GSDI/ HDBaseT/ Fiber to mix input and output

· Support Video wall and seamless switching with the 1080P and 4K60 cards

· Support 3.5mm audio embedded and de-embedd function

· Support up/down scaling function via the DIP switch

· Support dual LAN and RS232 ports for backup control

· Front buttons with background lights, easier to operate at any time

· Support auto saving protection and auto recovery function while power cut

Modular Matrix Switch 36x36 plus Technical Parameters

Model MINI-MANAGER-3600-PLUS
Description 36x36 modular matrix switcher
Input 1-card 1-port input, including DVI/HDMI/VGA/CVBS/YPbPr/SDI/ HDBaseT/Fiber
Output Support DVI/HDMI/VGA/CVBS/YPbPr/SDI/HDBaseT/Fiber Otpic output
Protocol Standard 1-card 1-port output, including DVI/HDMI/VGA/CVBS/YPbPr/SDI/ HDBaseT/Fiber
Color Space Support RGB444, YUV444, YUV422 , x.v.C standard color extension
Resolution 640×480---3840×2160@60Hz(VESA ), 480i---4K@60Hz(HDTV )
Distance HDMI/DVI: 15m/40ft ; HDBaseT: 70m/220ft; Fiber: 2km/6000ft
Control iOS/Android Apps, WEB GUI, RS232 & 7 inch touch screen control
Power AC: 110V—260V 50/60Hz
Consumption 30W(No Cards)
Dimension 8U, 482x385x355(mm)/ 18.97*15.35*13.97(inch)
Weight 25kg/55.12lbs(No Cards)
Work Temperature 0℃ ~50℃
Storage Temperature -20℃ ~55℃

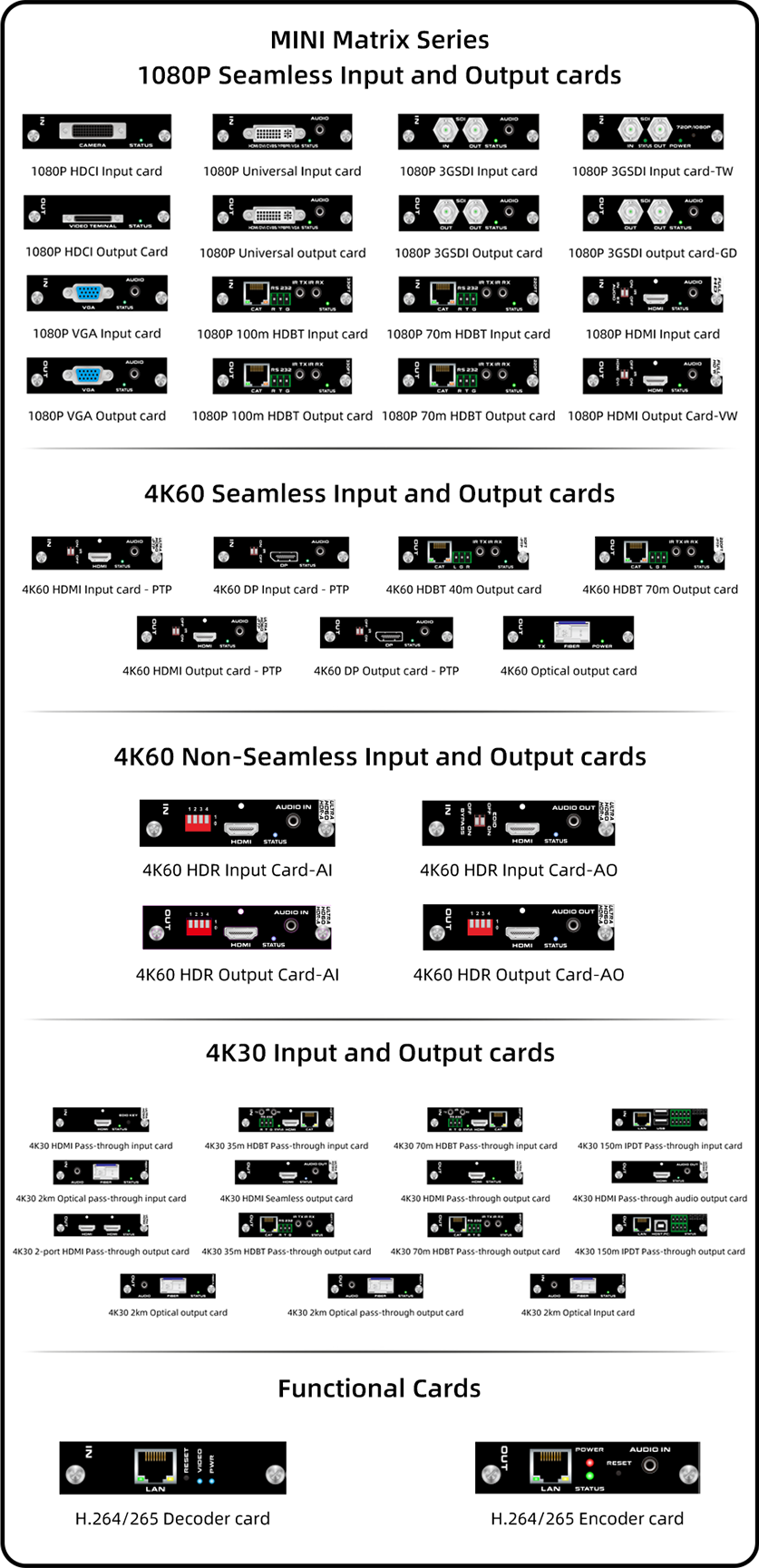

Modular Matrix Switch 36x36 plus input and output card

4K60 HDMI 36x36 matrix switcher with video wall support APP and WEB control

Modular Matrix Switch 36x36 plus Connection diagram

4U seamless Matrix switcher 36x36 modular chassis support HDBasT 100m and POC function Connection Diagram
