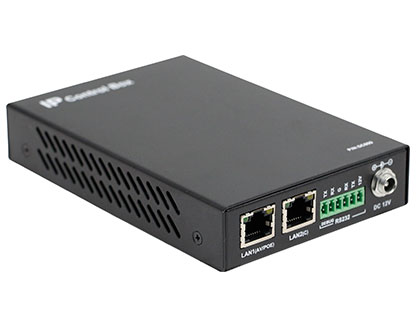

HDMI AV over IP Control Box is an IP central control box, equipped with Ethernet port and RS232 port, which can be managed and controlled through Web UI, Telnet and third-party control devices
inquiry
HDMI AV over IP Control Box is an IP central control box, equipped with Ethernet port and RS232 port, which can be managed and controlled through Web UI, Telnet and third-party control devices. HDMI AV over IP Control Box can automatically search and display the codecs in the system, and cooperate with PC Console to control and manage the configuration of the device, such as matrix system switch and Mosaic wall setting. HDMI AV over IP Control Box applicable to meeting rooms, large shopping centers, hotels, monitoring centers, schools, and enterprise training scenarios.
· Control and management using the Web UI, Telnet, and third-party control devices
· Configure network ports and serial ports
· Automatic detection and identification codec
· Auto protocol, IP address distribution and management
· Support the unlmited Tx and Rx
· Support the 3rd party control by IP or RS232
· Supports matrix switching And PoE
1 x LAN1 (AV/POE) (10/100 Mbps)
1 x LAN2 (C) (10/100 Mbps), 2 x RS232
1 x STATUS LED, 1 x POWER LED
1 x RESET
0.38 kg/0.84 lbs
12 VDC 1 A
Tyoe
IPM-MG
Input
Output
Light
Button
Control
3rd party control by IP or RS232
Dimension
93.2*26*138.7(mm)/3.67'' x 1.02'' x 5.46''
Weight
Power Supply
Power consumption
≤10.5W
Working Humidity
10%-90%
Working Temperature
0℃-50℃
Storage Temperature
﹣20℃-70℃
No.
Name
Qty
Unit
1
IPG-MG
1
Pcs.
2
DC 12V1A power adapter
1
Pcs
3
Phoenix Male Connectors (3.5mm, 3 Pins)
1
Pcs
