HD AOC 18G 100m HDCP 2.2 4K60 18Gbps Active Optical HD Cable

HD AOC FIBER-4K60-XXM

HD AOC FIBER-4K60-XXM is an HD2.0 active optical cable (AOC) with high bandwidth, low power consumption and low cost. Using optical fiber to replace copper wire as the high-speed signal transmission medium, it can perfectly transmit 4k@60hz UHD image up to more than 100 meters.

inquiry

Product details

Introduction

This product is an HD2.0 active optical cable (AOC) with high bandwidth, low power consumption and low cost. Using optical fiber to replace copper wire as the high-speed signal transmission medium, it can perfectly transmit 4k@60hz UHD image up to more than 100 meters. Compared with the traditional copper wire, HD AOC is much longer, softer, more slim, with better signal quality and perfect CEC, HEAC feature. Compared with other HD optical fiber transmission solution, HD AOC is easy to use, has perfect compatibility, and no external power supply needed.
With the embedded optical engine, it can support the long distance transmission, and no extra power supply needed, real to plug and play.

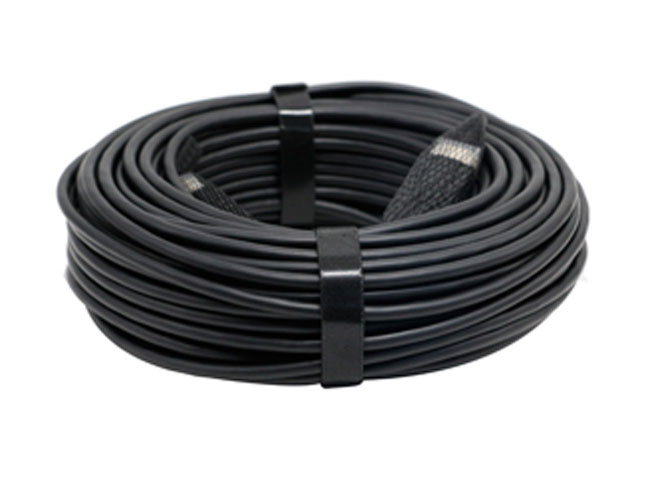

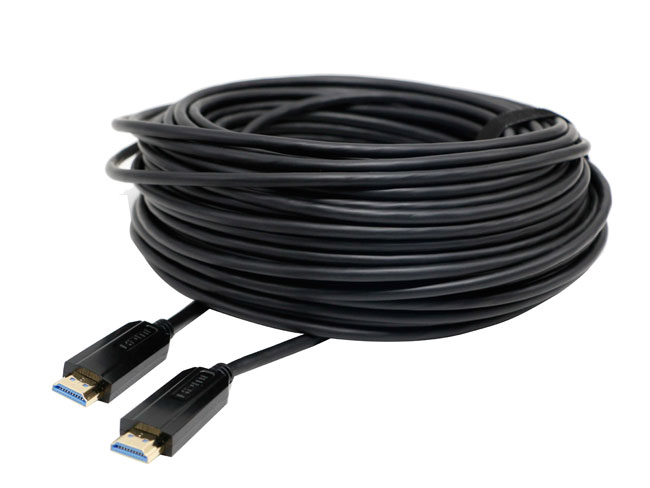

Real shot products

HDCP-2.2-4K60-18Gbps-Active-Optical-HD-Cable

Features

· Long distance transmission up to 100 meters(330ft)

· HD2.0 standard, support up to 4K@60hz UHD display

· Support HDCP2.2

· Support the ARC(less than 60m), bu couldn’t support Ethernet

· Plug and play without the external power needed

· Thinner(cable OD 4.8mm), lighter and softer than the normal copper cable

·Highly resistant to EMI and RFI

Technical Parameters

Tyoe	FIBER-4K60-XXM
Cable Length	Up to 100m (10m/20m/30m/40m/50m/70m/80m/90/100m)
Interface	HD2.0 type A - HD2.0 type A
Bandwidth	HD2.0, 18Gbps, support 4k@60(4:4:4)
Cable diameter	4.8mm
Bend Radius (Dynamic/Static)	40mm/20mm
Tensile Strength (Long term/Short term)	100N/200N
Crush Resistance(Long term/Short term)	200N/400N
Operating / Storage Temp	0~50°C / -20~70°C
Cable configuration	Mixed by:4Fiber+7cooper+PE Jacket Fiber: 50/125 um module
Transducer	4 CH 850nm VCSEL/PIN
Working current	≤45mA
Power & Consumption	≤250mw
Finished OD	5.5±0.1mm
ARC	Shorter than 60m
