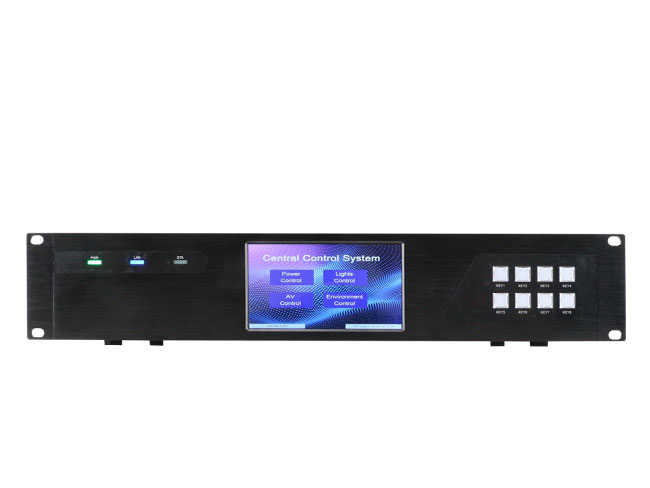

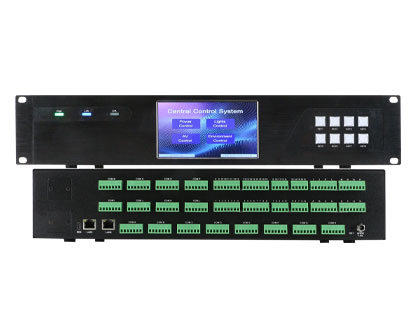

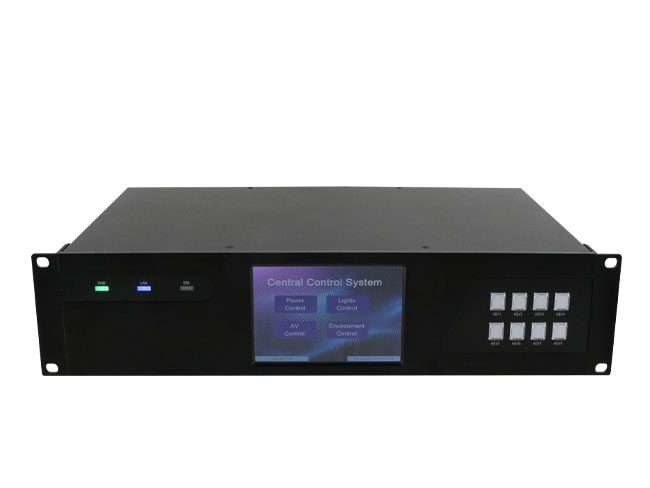

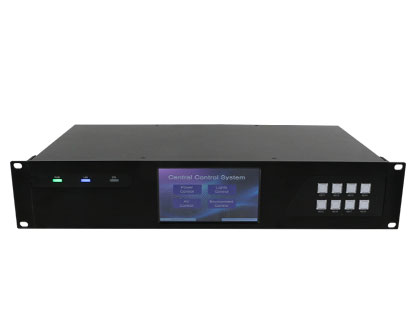

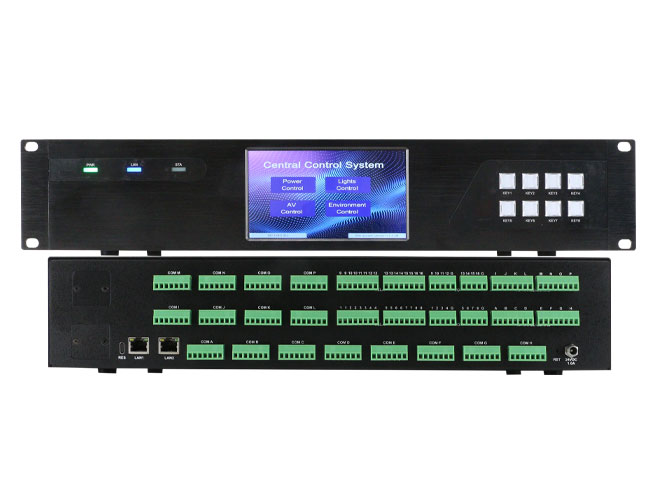

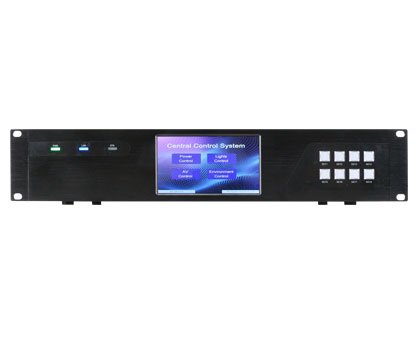

BYOD-M5000 is a 2U central control host with IR learning built-in, with 4-key push buttons for presets recall, able to create 11 sets control UI, it can be widely used for the command control center, office and building automation, multimedia environment and home automation centralized devices control, It combined programmable logic and protocol with programmable user interface together, provide full network and intelligent central control technology. It is essential equipment for command center and C’ISR system, it is widely used for administration center, building control, meeting room, training center, exhibition center, industry and home automation.
inquiry
BYOD-5000 is a 1U central control host with 8-port POE switch, it can be used for the command control center, office and building automation, multimedia environment and home automation centralized devices control, It combined programmable logic and protocol with programmable user interface together, provide full network and intelligent central control technology. It is essential equipment for command center and C’ISR system, it is widely used for administration center, building control, meeting room, training center, exhibition center, industry and home automation.
· 2U central control host
· 16*2-pin replay ports(30VDC/AC 1A)
· 16*2-pinI/O ports
· 16*2-pin IR or one-way RS-232 ports

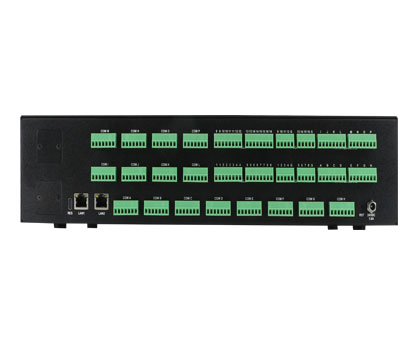

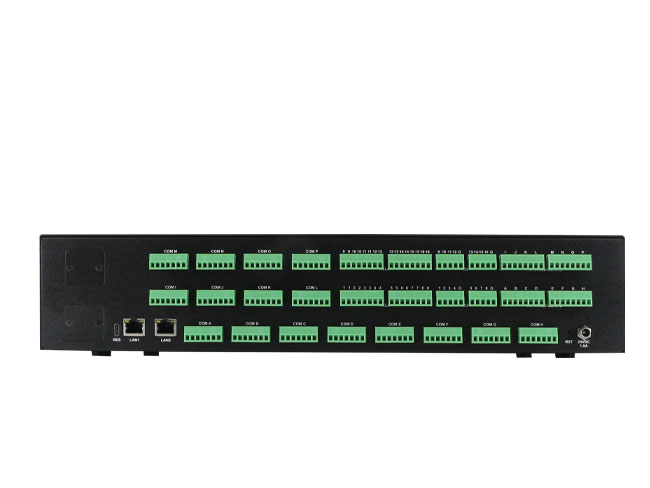

· 16*7-pin RS-232/422/485 ports (TCP/UDP/Telnet/Http)
· 8*programmable push buttons
· 2*LAN ports
· Front 5.5inch touch screen with customized UI for control
· With the IR learning built-in
· Linux 4.1.19/ CPU K3568 4core, ARM Cortex-A55 2.0GH
· 2048M RAM, 8192M EMMC FLASH
| Tyoe | BYOD-M5000 | |
| CPU |
K3568 4core, ARM Cortex-A55 2.0GH |
|
| Operating system |
Linux 4.1.19 |
|
| Memory |
2048M RAM |
|
| Flash |
8192M EMMC |
|
|
IR-Learning |
IR-Learning window |
|
| RELAY |
8 - isolated low voltage relay (normally open) 30VDC/AC 1A |
|
|
I/O |
16 * Digital I/O input
|
|
|
INFRARED–SERIAL |
16* infrared or one-way RS-232 serial port |
|
| LAN |
2- RJ45 10M/100M ports |
|
| RST |
1 - RST system reset button |
|
| LED |
3 – LED system status indicator |
|
|
Power Supply |
24VDC 1A |
|
| Working Temperature |
0 ºC~50 ºC/32 ºF~104 ºF |
|
|
Relative humidity of working environment |
10% to 90% |
|
|
Size |
440*192*90 (mm), 3.9kg |
|
| Weight |
G.W.: 3.9kg |
|
No.
Name
Qty
Unit
1
BYOD-M5000
1
Pcs.
2
DC 24V1A power adapter
1
Pcs
3
Phoenix Connectors
28
Pcs
