1080P AV KVM over IP matrix video wall Encoder HD Extend 920

The AV over IP encoder(IPM-920T) and AV over IP decoder(IPM-920R) can work together to provide complete end-to-end streaming system or it can work with the network switch to realize a one to many, many to one and many to many systems.

inquiry

AV KVM Over IP Decoder Demo Video


AV KVM over IP Encoder Introduction

The encoder of AV over IP system(IPM-920T) and decoder of AV over IP system(IPM-920R) can work together to provide complete end-to-end streaming system or AV over IP system can work with the network switch to realize a one to many, many to one and many to many systems. AV over IP system can transmit the video, audio and RS232 signals together or separately over single LAN cable, with the POE function, the Rx and Tx can be powered by POE from a POE network switch, AV over IP system helps to make the installation more clean and professional. Except working as the matrix switch and distribution systems, AV over IP system also supports the video wall function with maximum configuration of 16x16 Video wall. The resolution of AV over IP system can up to 1920x 1080@60Hz.

AV over IP system system can support friendly-user control options, including RS232, IP control box, PC software, iPad APP control with Source&Videowall preview function. The decoder of AV over IP system also support the CEC/RS232 function to power on and off displays.

AV over IP system can be popularly used in the hospital, medical demonstration, school smart classroom, radio and television video production, shopping mall, hotels, command center, traffic emergency commandand corporate training, social service organizations including scenic spots, theaters, and airportsetc.


AV KVM over IP Encoder Pictures

  • 1080P AV KVM over IP matrix video wall Encoder HD Extend 920
  • 1080P AV KVM over IP matrix video wall Encoder HD Extend 920
  • 1080P AV KVM over IP matrix video wall Encoder HD Extend 920
  • 1080P AV KVM over IP matrix video wall Encoder HD Extend 920



  • AV KVM over IP Encoder Features

    · Unlimited points of the Tx

    · Create a PoE HD over IP matrix or Splitter

    · Wireless iPad Real Time video preview

    · Super easy drag-n-drop video wall steup

    · Video wall supports up to a 16x16(256TVs)

    · Zero Latency & Fast switching Time

    · Separate audio & RS232 Pass-through

    · HD Tx & Tx over IP W/ PoE to 330 feet input and output

    AV KVM over IP Encoder packing list

    AV KVM over IP Encoder x1

    Power Supply 12V x1


    AV KVM over IP Encoder Technical Parameters

    Encoder


    Video

    Input Port

    1 x HD, 1xUSB-A, 1x IR Tx

    Input Video Type

    HD 1.3, HDCP 1.4

    Input Resolution

    640 x 480@60Hz, 480p@60Hz576i@50Hz, 576P@50Hz, 800 x 600@60Hz, 1024 x 768@60Hz, 720p@50Hz, 720p@60Hz, 1280 x 800@60Hz,

    1280 x 1024@60Hz, 1360 x 768@60Hz,

    1366 x 768@60Hz, 1400 x 1050@60Hz,

    1440 x 900@60Hz, 1680 x 1050@60Hz,

    1920 x 540@60Hz, 1080i@50Hz, 1080i@60Hz, 1080p@50Hz, 1080p@60Hz

    Input Video Signal

    0.5~1.2 V p-p

    Encoding Data Rate

    Up to 30 Mbps, configurable

    Output Video Port

    1 x LAN

    Output Video Type

    H.264/MPEG-4 AVC

    Output Resolution

    Large IP stream: from 480p@60Hz to 1920 x 1080@60Hz

    Small IP stream: 352x288@5Hz

    Video Impendence

    100 Ω

    Input DDC Signal

    5 V p-p (TTL)

    End-to-End Time Latency

    When works with decoder:

    About 50 ms (Low latency mode)

    About 250 ms (High quality mode)

    Audio

    Input Audio Port

    1 x HD

    Input Audio Format

    LPCM 2.0

    Output Audio Port

    1 x 3-pin Phoenix connector

    Output Audio Format

    Stereo

    Control

    Control Method

    IP Control Box (IPM-MG), PC configurator, iPad on iPad

    General

    Operating Temperature

    +32°F ~ +113°F (0°C ~ +45°C)

    10% ~ 90%, non-condensing

    Storage Temperature

    -4°F ~ 140°F (-20°C ~ +70°C)

    10% ~ 90%, non-condensing

    Power Supply

    12 V 1 A DC

    Power Consumption

    6W (Max.)

    ESD Protection

    Human body model:

    ±8kV (air-gap discharge)

    ±4kV (contact discharge)

    Surge Protection

    Voltage: ±1 kV

    Product Dimensions

    (W x H x D)

    175 mm x 25 mm x 100.2 mm / 6.9'' x 0.98'' x 3.9''

    Net Weight

    0.60kg / 1.32lb


    AV KVM over IP Encoder application

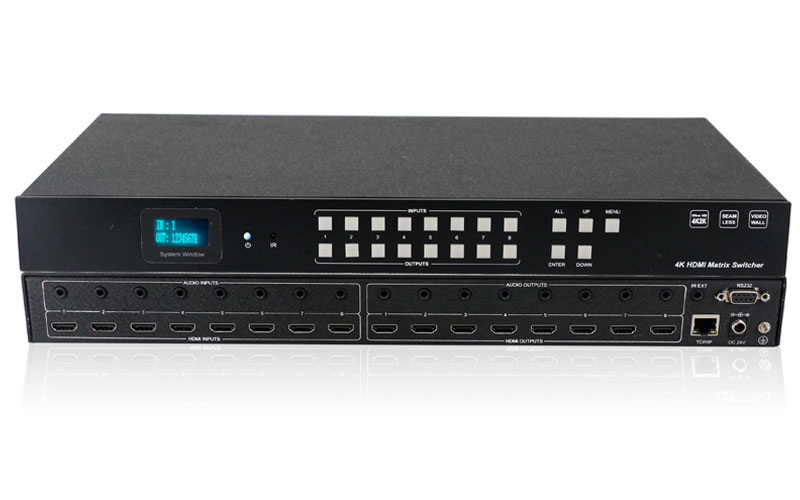

    Matrix Switcher

    Matrix SwitcherVideo Wall

    Video WallConnection diagram
