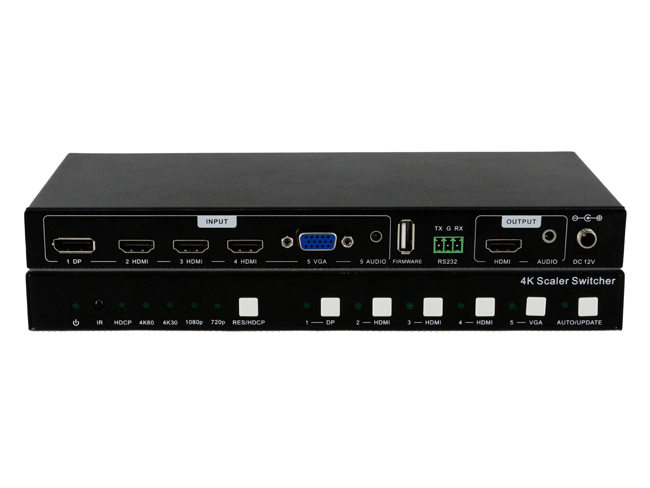

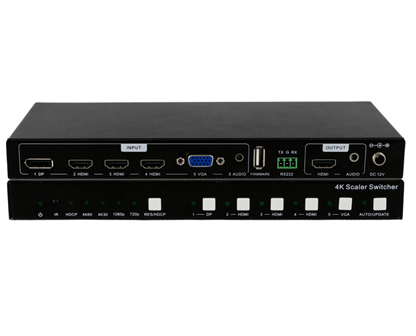

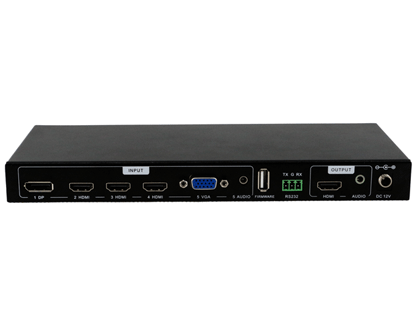

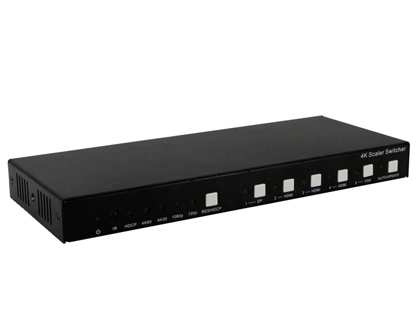

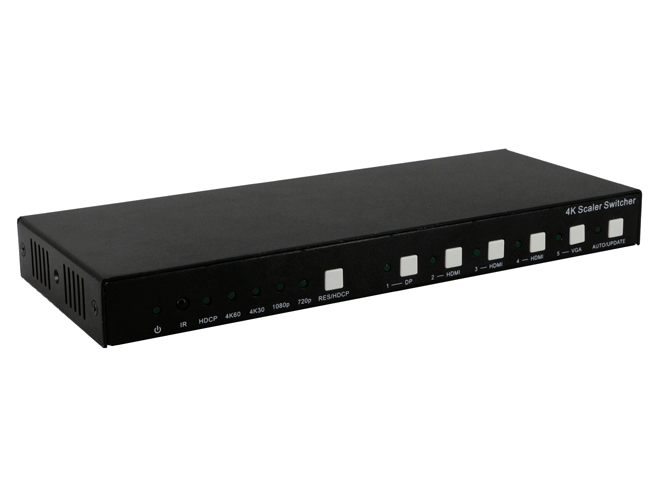

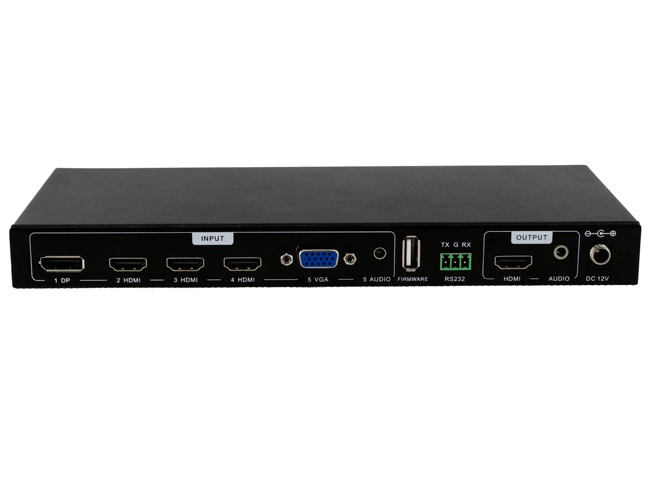

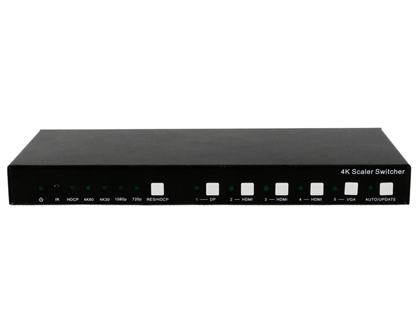

SW-HDV-51 is a high performance 4K presentation switcher with scaling function, it provides users 5 inputs(1*DP, 3*HDMI and 1*VGA+3.5) and 1 output(1*HDMI+3.5), with the front buttons, users can do the sources switching, and also resolution selection, maximum the output resolution can up to 4K60Hz or down to 720P. It also supports remote control.
inquiry
SW-HDV-51 is a high performance 4K presentation switcher with scaling function, it provides users 5 inputs(1*DP, 3*HDMI and 1*VGA+3.5) and 1 output(1*HDMI+3.5), with the front buttons, users can do the sources switching, and also resolution selection, maximum the output resolution can up to 4K60Hz or down to 720P. It also supports remote control.
· Supports 1*DP, 3*HDMI, 1*VGA+3.5mm audio inputs
· Supports 1*HDMI+3.5mm audio output
· Supports scaling function
· Supports maximum resolution up to 4K@60Hz
· Remote control or front buttons fast switching;
·DP1.2, HDMI2.0/1.4, HDCP2.2/1.4 compliant
·Visual LED status indicators
|
Specifications name |
SW-HDV-51 |
|
Protocol Standard |
DP1.2, HDMI2.0/1.4, HDCP2.2/1.4
|
| Input |
1*DP, 3*HDMI, 1*VGA+3.5mm audio
|
| Output |
1*HDMI+3.5mm audio
|
|
Resolution |
4K@60Hz,4K@30Hz, 1080P@60Hz, 720P@60Hz
|
| Dimension |
250*100*26mm(9.84*3.94*1.02inch)
|
|
Weight |
0.5kg(1.1lb)(No packing)
|
|
Power Supply |
DC 12V1A |
|
Consumption |
2.5W |
|
Working Humidity |
10%-90% |
|
Temperature |
-10℃ to 50℃
|
|
Storage |
-25℃ to 75℃
|
