5x1 4K60 Multiviewer Switcher with seamless switching

This product is a real 4K60 multiviewer switcher with seamless switching(*when single-window mode) and and scaling function, it supports 4 HDMI2.0 inputs, 1 Type-C input and 1 HDMI2.0 output with 3.5mm audio out and USB2.0 capture. The resolution of both inputs and output can up to 4K@60hz 4:4:4, the bandwidth can up to 18Gbps. Users can use the front panel push buttons, IR remote control, and RS232 codes to control the unit.

inquiry

Product details

5x1 4K60 Multiviewer Switcher Introduction

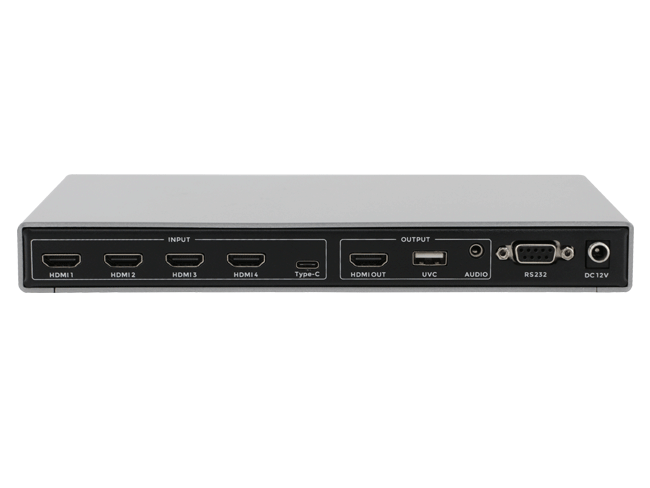

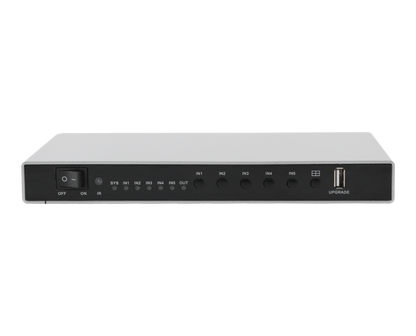

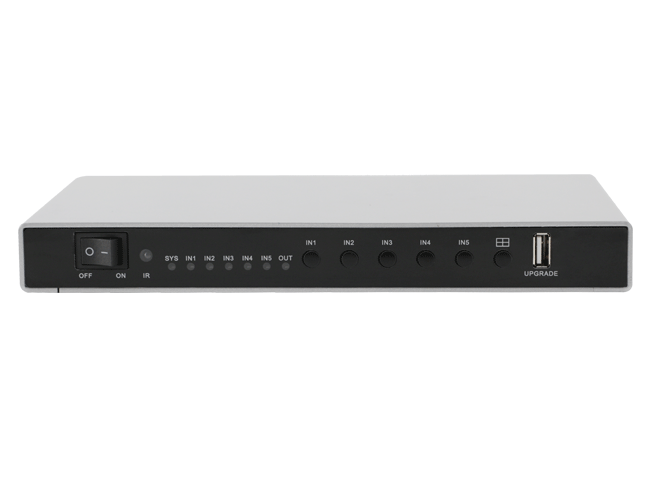

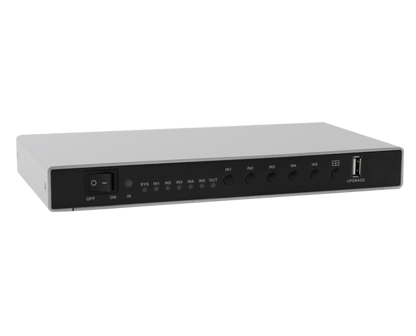

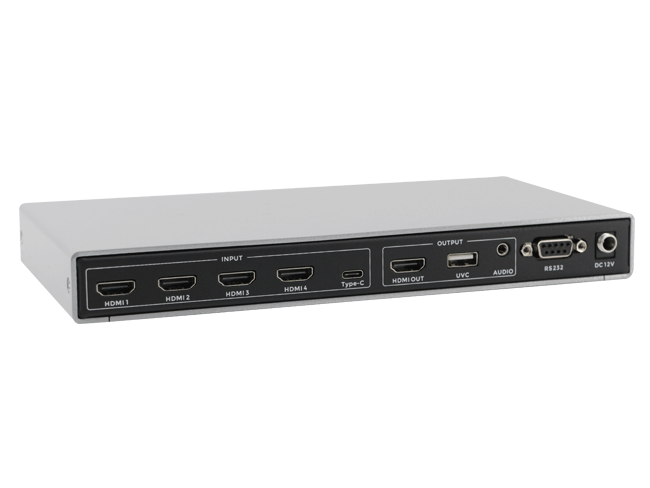

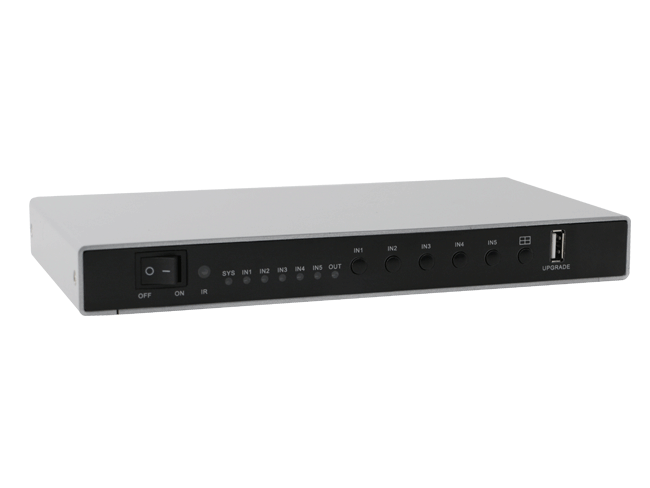

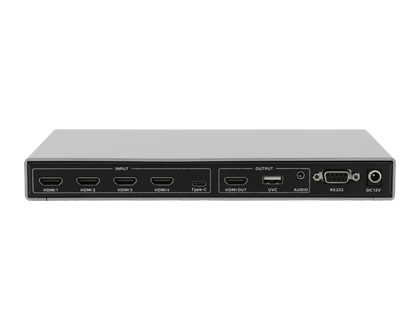

5x1 4K60 Multiviewer Switcher pictures

5x1 4K60 Multiviewer Switcher Features

· Support 8 working modes/layouts

· Support HDMI2.0, and the resolution up to 3840*2160@60Hz

· Support USB2.0 port for OBS Capture

· Support 4K60 inputs(4*HDMI, 1*USB-C)

· Support seamless switching even when different resolutions inputs;

·Support the front panel push-button, IR remote and the RS232 control

·Support USB-A upgrading

5x1 4K60 Multiviewer Switcher Technical Parameters

Specifications name	VPX-5100U
Input port	4* HDMI2.0, 1*USB-C
Input resolution	· HDMI2.0: 640x480⁸, 800x600⁸, 1024x768⁸, 1280x768⁸, 1280x800⁸, 1280x1024⁸, 1360x768⁸, 1366x768⁸, 1440x900⁸, 1400x1050⁸, 1600x1200⁸, 1680x1050⁸, 1920x1200⁸, 720x480⁸ (480p), 720x576⁶ (576p), 1280x720⁵ (720p30), 1280x720⁶ (720p50), 1280x720⁸ (720p60), 1920x1080² (1080p24), 1920x1080³ (1080p25), 1920x1080⁵ (1080p30), 1920x1080⁶ (1080p50), 1920x1080⁸ (1080p60), 3840x2160⁵(2160p30),3840x2160⁶ (2160p50), 3840x2160⁸ (2160p60) · USB-C: 640x480⁸, 800x600⁸, 1024x768⁸, 1280x768⁸, 1280x800⁸, 1280x1024⁸, 1360x768⁸, 1366x768⁸, 1440x900⁸, 1400x1050⁸, 1600x1200⁸, 1680x1050⁸, 1920x1200⁸, 720x480⁸ (480p), 720x576⁶ (576p), 1280x720⁵ (720p30), 1280x720⁶ (720p50), 1280x720⁸ (720p60), 1920x1080² (1080p24), 1920x1080³ (1080p25), 1920x1080⁵ (1080p30), 1920x1080⁶ (1080p50), 1920x1080⁸ (1080p60), 3840x2160⁵(2160p30)
Output port	1* HDMI2.0
Output resolution	HDMI2.0: 1920x1080⁶ (1080p50), 1920x1080⁸ (1080p60), 3840x2160⁵ (2160p30) , 3840x2160⁶ (2160p50) , 3840x2160⁸ (2160p60) UVC(USB2.0): 1920x10806 (1080p50), 1920x10808 (1080p60) 1 = 23.98 Hz, 2 = 24 Hz, 3 = 25 Hz, 4 = 29.97 Hz, 5 = 30 Hz, 6 = 50 Hz, 7 = 59.94 Hz, 8 = 60 Hz, 9 = 75 Hz
Others
Operating temperature	0 to +45 C (32 to + 113 F)
Weight	2kg(1.1lb)(No packing)
Power Supply	DC 12 V 1.5 A
Consumption	10W(Max)
Product size(mm)	24012428
Static Protection	Human body discharge mode: ±8kV (air gap discharge)/ ±4kV (contact discharge)
Humidity	10% to 90%
