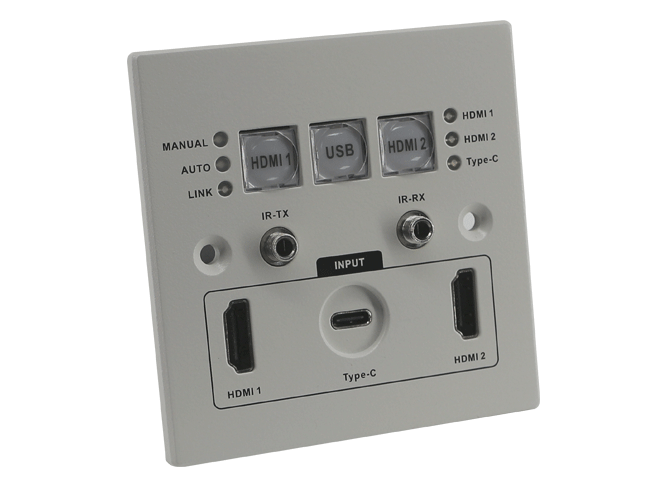

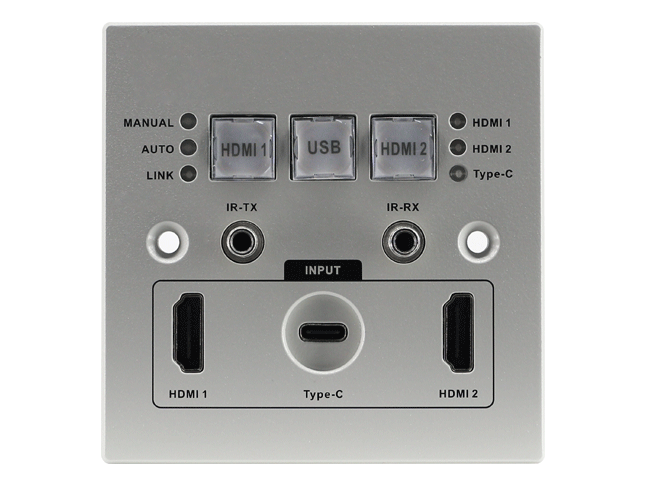

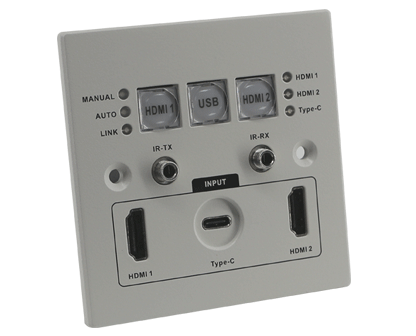

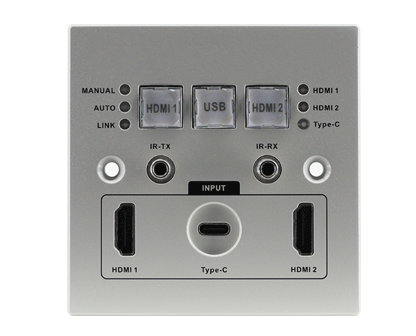

4K HDMI+TypeC+HDMI over HDBaseT Wallplate transmitter

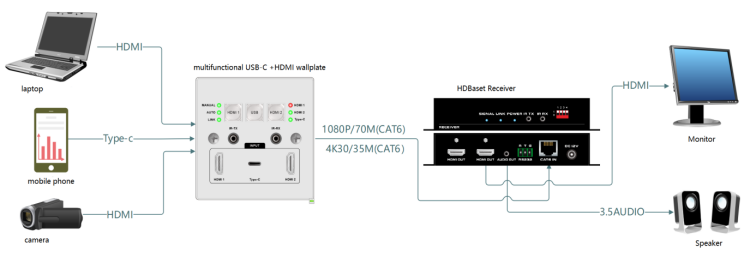

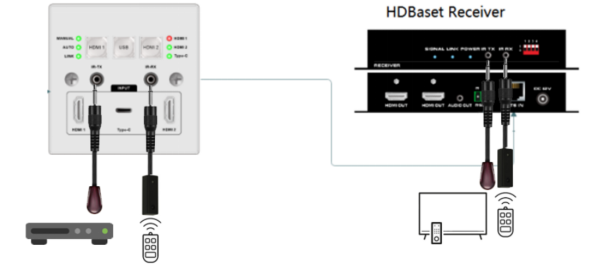

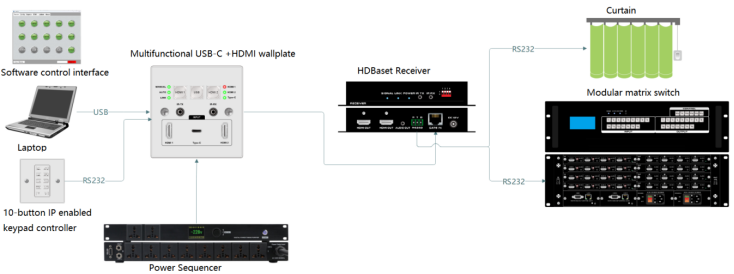

It's a newly developed HDBaseT wallplate transmitter. This wallplate supports 2*HDMI and 1*TYPE-C interfaces. All interfaces support EDID management. The input resolution can support up to 4K 60Hz 420 or 4K30 444. The transmission cable length of 4K resolution can reach 35 meters. It has POC (power transmission over cable) function. Users only need to power the HDBaseT receiver or transmitter to provide power to the other end. It supports the adjustment of POC power supply line sequence, adapts to third-party HDBaseT devices, supports two-way infrared function, and realizes ultra-long-distance control of infrared devices. The programmable panel can program 10 instructions arbitrarily through the host computer software. It can control the device by sending instructions through the serial port of the remote network receiver, and can control the near-end device through the serial port of the panel itself. It is widely used in video conferencing, large-screen display and multimedia display control systems, high-quality image display projects, medical image display and projection systems; it is suitable for long-distance video and information transmission systems in airports, railway stations, sports centers, etc.
