4K60 HDR 8x8 HDMI2.0 Matrix Switcher

This is a new fixed 4K60Hz HDMI matrix switcher with 8 HDMI input ports with 8* 3.5mm audio in and 8 HDMI output ports with 8* 3.5mm audio outs, the resolution can up to 4K60Hz and all ports are HDCP compliant. With the friendly user control methods: IR remote control, 2-key push front buttons with background blue light, WEB GUI, TCP/IP, RS232,UDP and the iOS/Android APP control, supports EDID management by the DIP switches, this matrix switcher can work with the Blu-Ray Players, Set-Top boxes, Home Theater, and game consoles etc HDMI input sources to route to the HDMI displays, it has been widely used in different audio visual applications.

inquiry

Product details

4K60 Fixed 8x8 HDMI2.0 Matrix Switcher demo video

4K60 Fixed 8x8 HDMI2.0 Matrix Switcher Introduction

This is a new 4K60 fixed HDMI matrix switcher series with the seamless switch, Video Wall function, EDID management, audio breakouts and the resolution can up to 4K60Hz with scaling funtion and all ports are HDCP compliant. With the friendly user control methods: IR remote control, 2-Press push buttons with background blue light, WEB GUI/TCPIP/RS232/IR remote control, supports the WEB smart EDID management, this matrix switcher can work with the Blu-Ray Players, Set-Top boxes, Home Theater, and game consoles etc HDMI input sources to route to the HDMI displays, it has been widely used in different audio visual applications.

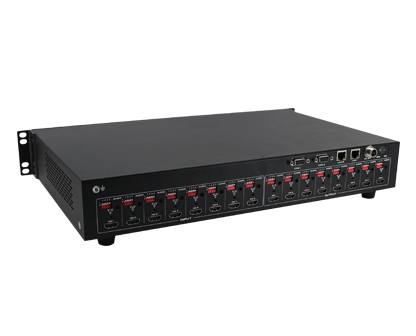

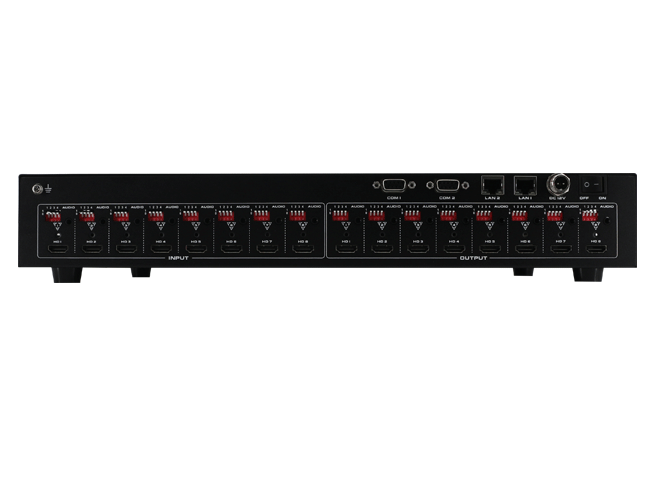

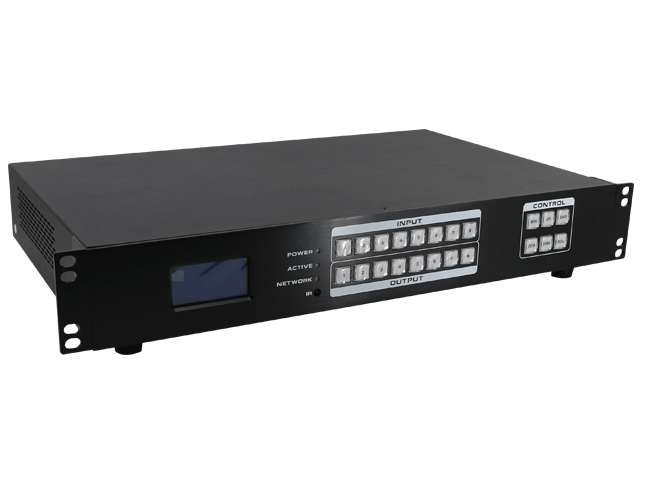

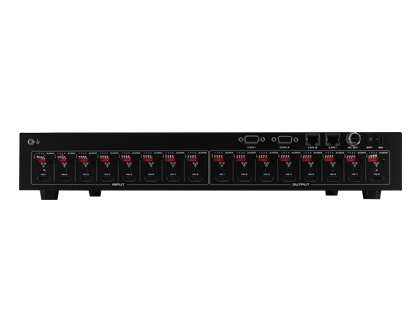

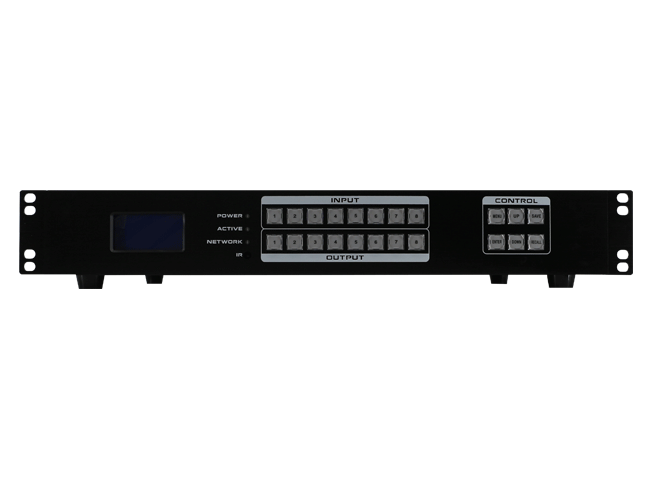

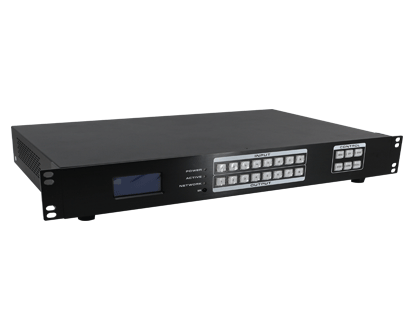

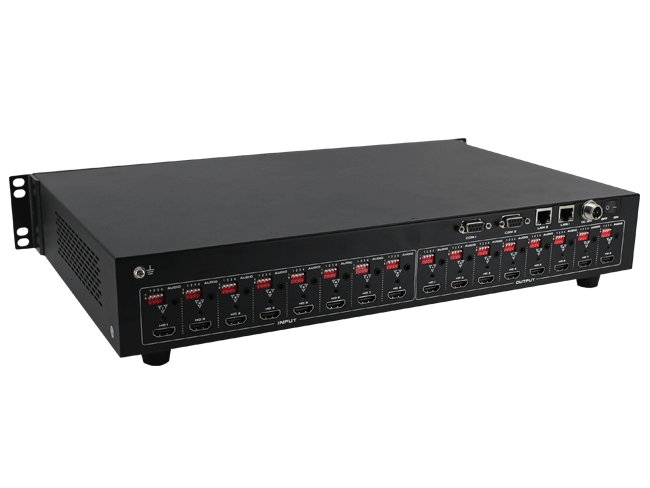

4K60 Fixed 8x8 HDMI2.0 Matrix Switcher pictures

4K60 Fixed 8x8 HDMI2.0 Matrix Switcher Features

· The resolution can up to 4K@60Hz inputs and outputs with scaling

· Supports seamless switching, no black/blue screen during the sources switch

· Supports the video wall function

· Supports the 3.5mm audio embedded and de-embedded

· Supports RS-232 and TCP/IP Control(WEB GUI, APP), IR remote control

· Supports the push buttons control with blue lights

· Supports to rename the inputs and outputs

· Supports up to 40 scenes

4K60 Fixed 8x8 HDMI2.0 Matrix Switcher Technical Parameters

Tyoe	FIX-HDR-800P-4K60-V2
Description	4K60 8x8 HDMI Matrix Switcher
Resolution	640×480---3840×2160@60Hz(VESA ), 480i---4K@60Hz
Input	8* HDMI inputs with 4* 3.5mm audio embedded ports
Output	8* HDMI outputs with 4* 3.5mm audio de-embedded ports
Standard Protocol	Supports HDMI1.4, HDCP1.4
Color Space	Support RGB444, YUV444, YUV422 , x.v.C standard color extension
Transmission distance	HDMI: 15m/40ft for 1080P, for 4K60 up to 10m/30ft
Controlling	iOS/Android Apps, WEB GUI, RS232 & Front buttons with background light
Weight	6kg/ 13.22lbs (No Cards)
Size	44027944 mm/17.32x10.98x1.73 Inch
Power Supply	AC: 110V—260V 50/60Hz
consumption	8.5W~45W when fully loaded
Working Temperature	0℃ ~50℃
Storage Temperature	-20℃ ~55℃
