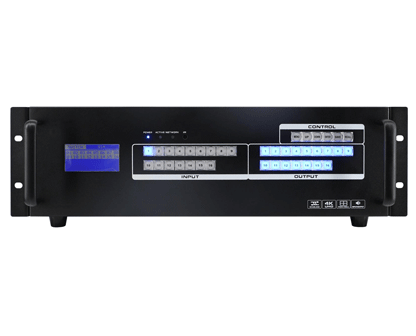

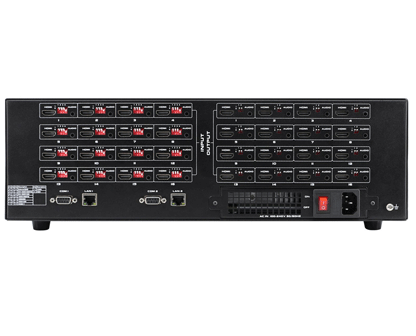

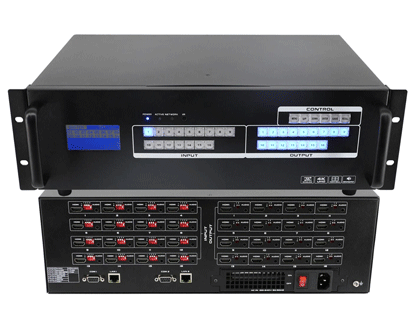

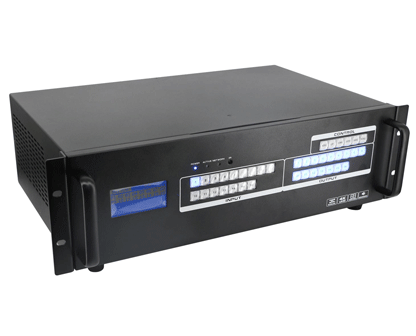

This is a 4K60 FIX SVM series matrix switcher with the seamless switch, Video Wall function, EDID management, audio embedded&de-embedded, scaling function and all ports are HDCP compliant. With the friendly user control methods by IR remote, 2-Key push buttons with background blue light, WEB GUI/TCPIP/RS232/APP control, supports EDID management, this matrix switcher can work with the Blu-Ray Players, Set-Top boxes, Home Theater, and game consoles etc HDMI input sources to route to the HDMI displays, it has been widely used in different audio visual applications.
inquiry
This is a 4K60 FIX SVM series matrix switcher with the seamless switch, Video Wall function, EDID management, audio embedded&de-embedded, scaling function and all ports are HDCP compliant. With the friendly user control methods by IR remote, 2-Key push buttons with background blue light, WEB GUI/TCPIP/RS232/APP control, supports EDID management, this matrix switcher can work with the Blu-Ray Players, Set-Top boxes, Home Theater, and game consoles etc HDMI input sources to route to the HDMI displays, it has been widely used in different audio visual applications.
· The resolution can up to 4K@60Hz inputs and outputs with scaling
· Supports seamless switching, no black/blue screen during the sources switch
· Supports the video wall function
· Supports the 3.5mm audio embedded and de-embedded
· Supports RS-232 and TCP/IP Control(WEB GUI, APP), IR remote control
· Supports the push buttons control with blue lights
· Supports to rename the inputs and outputs
· Supports up to 40 scenes
| Tyoe |
FIX-SVM-1600P-4K60 |
|
|
Description |
4K60 16x16 HDMI Matrix Switcher |
|
|
Resolution |
640×480---3840×2160@60Hz(VESA ), 480i---4K@60Hz |
|
| Input |
16* HDMI inputs with 4* 3.5mm audio embedded ports |
|
| Output |
16* HDMI outputs with 4* 3.5mm audio de-embedded ports |
|
| Standard Protocol | Supports HDMI1.4, HDCP1.4 | |
|
Color Space |
Support RGB444, YUV444, YUV422 , x.v.C standard color extension |
|
| Transmission distance |
HDMI: 15m/40ft for 1080P, for 4K60 up to 10m/30ft |
|
|
Controlling |
iOS/Android Apps, WEB GUI, RS232 & Front buttons with background light
|
|
| Weight |
7kg/ 13.22lbs (No Cards) |
|
| Size |
484*280*128(mm)/17.32x10.98x1.73 Inch |
|
| Power Supply |
AC: 110V—260V 50/60Hz |
|
| consumption |
8.5W~45W when fully loaded |
|
| Working Temperature |
0℃ ~50℃ |
|
| Storage Temperature |
-20℃ ~55℃ |
|
No.
Name
Qty
Unit
1
FIX-SVM-1600P-4K60
1
Pcs.
2
AC: 110V—260V 50/60Hz
1
Pcs
3
Remote Control(without battery)
1
Pcs
