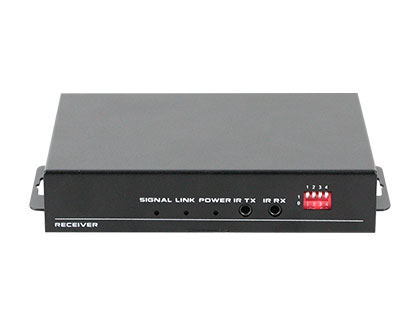

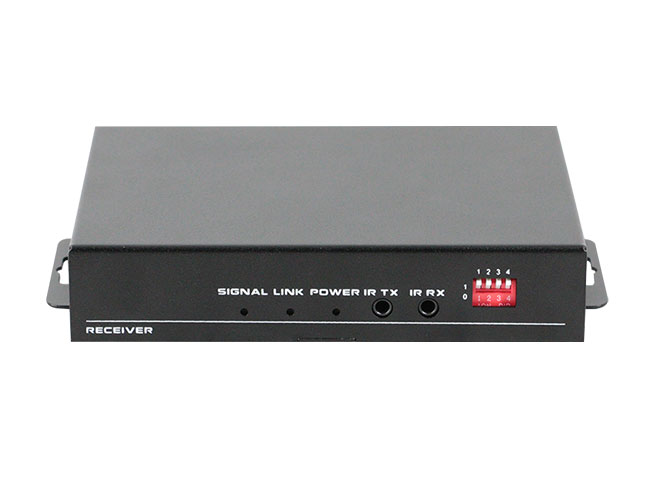

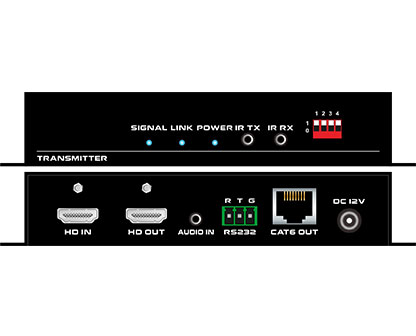

This HDBT-HD-100TR-AEL version HD extender which is using the advanced HDBaseT technology. It can transmit the HD signal, bi-directional IR and RS232 signal over single LAN cable(recommended the STP Cat5e/6/7) up to a long distance and only need to power one side. It also can can work with other HDBaseT equipment, such as Sony HDBaseT projector. For the 1080P60Hz resolution, it can transmit to a distance of 70m/220ft(100m/33oft), for 4K60Hz(4:2:0) it can up to 35m/110ft(70m/220ft). This extender kit can support the EDID, compliant with HD2.0, HDCP2.2. It can be popularly used in media conferencing room, school, government, cinema and so on applications.
inquiry
This HDBT-HD-100TR-AEL version HD extender which is using the advanced HDBaseT technology. It can transmit the HD signal, bi-directional IR and RS232 signal over single LAN cable(recommended the STP Cat5e/6/7) up to a long distance and only need to power one side. It also can can work with other HDBaseT equipment, such as Sony HDBaseT projector. For the 1080P60Hz resolution, it can transmit to a distance of 70m/220ft(100m/33oft), for 4K60Hz(4:2:0) it can up to 35m/110ft(70m/220ft). This extender kit can support the EDID, compliant with HD2.0, HDCP2.2.
It can be popularly used in media conferencing room, school, government, cinema and so on applications.
· Uses the HDBaseT technology extension over single CAT5e/6/7
· Supports FULL HD, UHD, 3D, 4K60(4:2:0)
· HDCP2.2, HD2.0
· Bidirectional IR&RS232 control signal transmission
· Power over Cable (POC) locally powered over Cat5e/6 cable at either end
· Supports 7.1 DTS Master HD, Dolby True HD
· LED indicators
· Support 3.5mm audio de-embedd function(RX)
· Support 2xHD output(RX)
| Tyoe | HDBT-HD-70/100R-AEL |
| Input | 1×HDBaseT |
| Output | 1×HD, 1×RS232,1×R-Tx, 1×R-Rx |
| Standard Protocol | Supports HD2.0 and compatible HDCP 2.2 |
| Resolution |
1920x1200, 1680x1050, 1360x768, 1280x800, 1920x1080, 1600x900, 1366x768, 1280x720, 1024x576, 1920x1200, 1680x1050, 1360x768, 1280x800, 4096x2160@30Hz, 3840x2160@30Hz, , 3840x2160@60Hz |
| Bandwidth | 10.2Gbps |
| Distance | 1080p60Hz: 70/100m, 4K60(4:2:0) distances to 35/70m |
| Dimension |
115*84*16(mm)(Tx/ Rx)/ 4.52*3.30*0.63(inch) |
| Weight | 160g(Tx/Rx) 0.35lbs |
| Power Supply | AC：100-240V 50/60Hz 1.5A Max DC：12V 1500mA |
| Power consumption | ≤10W |
| Working Humidity | 10%-90% |
| Working Temperature | 0℃-50℃ |
| Storage Temperature | ﹣20℃-55℃ |
No.
Name
Qty
Unit
1
HDBT-HD-70/100R-AEL
1
Pcs.
2
DC 12V2A power adapter
1
Pcs
3
IR Remote(without battery)
1
Pcs
