4K30 HDMI Extender HDBaseT Wall plate transmitter w/PoC US UK

4K30 HDMI Extender HDBaseT Transmitter is a HDBaseT Wallplate transmitter which supports 1*HDMI and 1*VGA+3.5mm audio inputs, and one switch button. 4K30 HDMI Extender HDBaseT Transmitter also supports the input sources auto detection and switch.

inquiry

4K30 HDMI Extender HDBaseT Transmitter Introduction

4K30 HDMI Extender HDBaseT Transmitter is a HDBaseT Wallplate transmitter which supports 1*HDMI and 1*VGA+3.5mm audio inputs, and one switch button. 4K30 HDMI Extender HDBaseT Transmitter also supports the input sources auto detection and switch. The HDMI input and the output resolution can up to 4k@30hz, with the POC(power over cable) , users can only power on the HDBaseT receiver, for the transmission distance, 4K30 HDMI Extender HDBaseT Transmitter can up to 70m at 1080P60, and for 4K30Hz it can up to 35m over single Cat5e/6/7 cable. 4K30 HDMI Extender HDBaseT Transmitter is popularly used in the small meeting room, classroom or other long distance transmission applications.

4K30 HDMI Extender HDBaseT Transmitter pictures

  • HDMI+VGA-HDBaseT-Transmitter-Extender
  • HDMI+VGA-HDBaseT-Extender
  • HDMI+VGA-HDBaseT-Extender-back

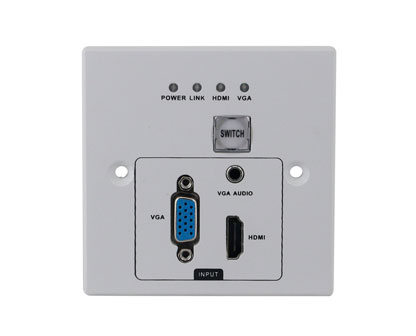

  • UK&EU-1-gang-size-HDMI-Wallplate



  • 4K30 HDMI Extender HDBaseT Transmitter Features

    · Supports HDMI and VGA input

    · Supports HDMI1.4 and HDCP2.2

    · Transmission distance: 220ft/70m at 1080P60, 110ft/35m at 4K30 via Cat5e/Cat6

    · Supports inputs sources auto detection and switching

    · Supports the Switch button to switch

    · Supports POC(power over Cable)

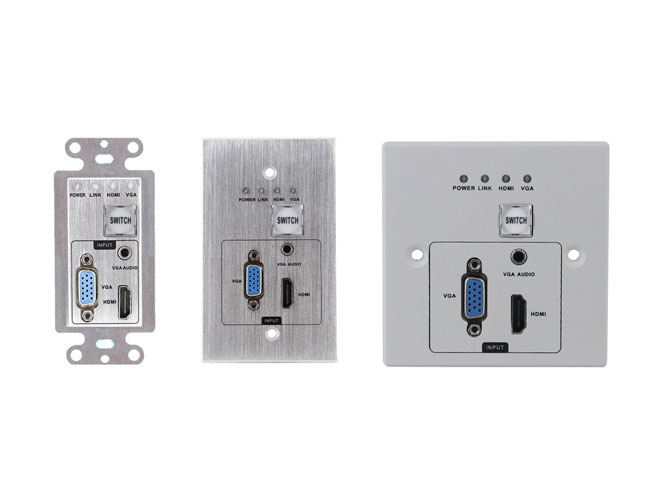

    · Supports multiple panel size(Decora/ US 1-gang, UK 1-gang) LED working indicator

    4K30 HDMI Extender HDBaseT Transmitter Technical Parameters

    Tyoe HDBT-WALL-HDV-70T-DEC HDBT-WALL-HDV-70T-US
    Input 1×HDMI, 1×VGA+3.5mm audio 1×HDMI, 1×VGA+3.5mm audio
    Output 1×HDBaseT 1×HDBaseT
    Standard Protocol Supports HDMI1.4 and HDCP2.2
    Resolution Up to 4K60Hz(4:2:0)
    Bandwidth 10Gbps
    Distance 70/100m(220/330feet) at 1080P ; 35/70m(110/220feet) at 4K60(4:2:0) over single Cat6/6a/7 cable
    Dimension 103x46mm(4.06x1.81inch          74x45x32mm/2.83x1.77x1.26inch
    Weight 100g/0.22lbs
    Power Supply AC:100-240V 50/60Hz 1.5A Max  DC:12V 1500mA
    Power consumption ≤12W
    Working Temperature 0℃-50℃
    Storage Temperature ﹣20℃-55℃

    4K30 HDMI Extender HDBaseT Transmitter packing list

    No.

    Name

    Qty

    Unit

    1

    HDBT-WALL-HDV-70/100T-DEC&US&UK

    1

    Pcs.

    2

    DC 12V2A power adapter

    1

    Pcs





    4K30 HDMI Extender HDBaseT Transmitter Connection diagram

    HDMI&VGA-wallplate-connection
