HDBT-WALL-HDV-70/100T-DEC&US&UK is a HDBaseT Wallplate transmitter which supports 1*HDMI and 1*VGA+3.5mm audio inputs, and one switch button. It also supports the input sources auto detection and switch.
inquiry

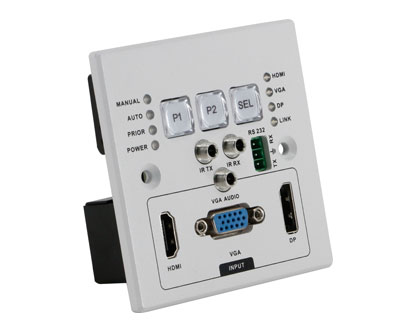

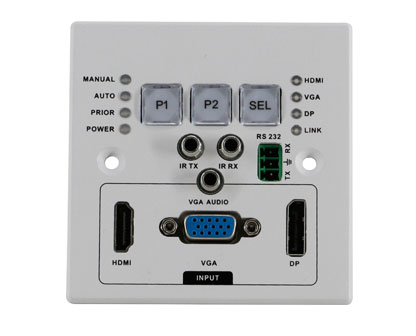

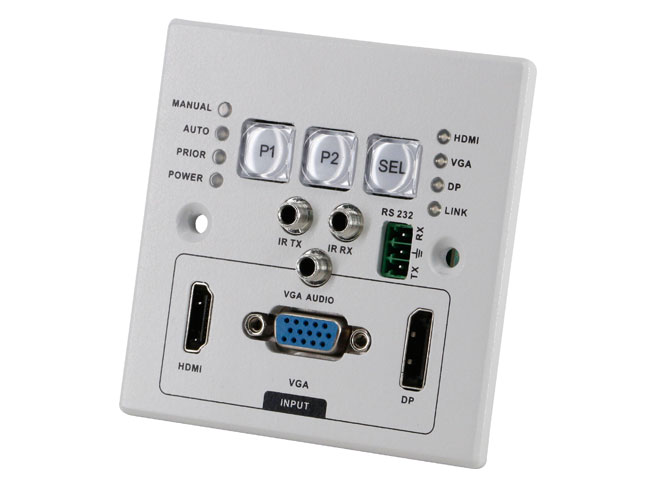

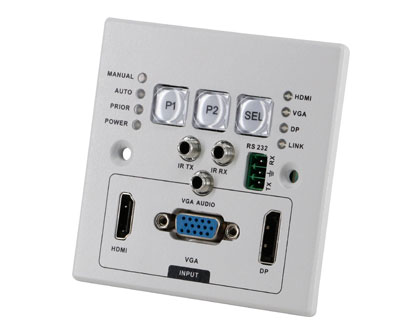

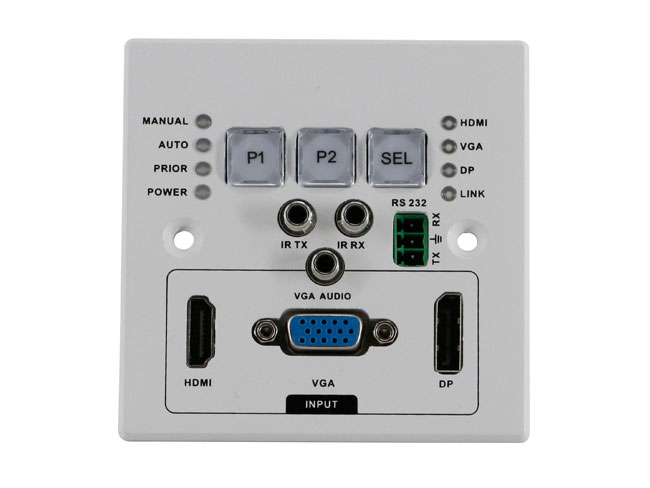

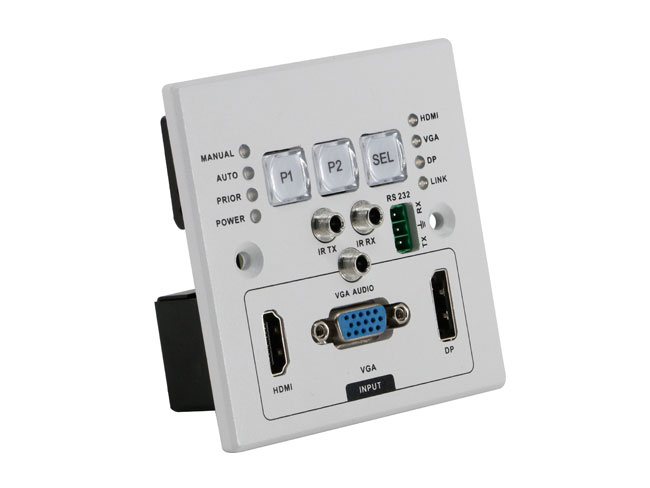

4K30 HDMI Extender HDBaseT Transmitter is an HDBaseT Wallplate transmitter with 2 programming buttons, 4K30 HDMI Extender HDBaseT Transmitter support 1*DisplayPort, 1*HDMI and 1*VGA+3.5mm audio inputs, 2*Programming(RS232) ports, bi-directional IR over single HDBaseT(RJ45) output. 4K30 HDMI Extender HDBaseT Transmitter also supports the input sources switching by the “SEL” button, or select the different working modes: maual, auto or Priority. Users also can use the P1/P2 to control the other equipment with the RS232 control commands. The resolution can up to 4k@30hz, with the POC(power over cable) function, users can only power on the HDBaseT receiver. 4K30 HDMI Extender HDBaseT Transmitter also supports bi-directional IR. For the transmission distance 4K30 HDMI Extender HDBaseT Transmitter can up to 70m at 1080P60, and for 4K30Hz can up to 35m. 4K30 HDMI Extender HDBaseT Transmitter is popularly used in the small meeting room, classroom or other long distance transmittion applications.
· DisplayPort+HDMI+VGA HDBaseT Wallplate Transmitter
· Supports 1080P 3D, and resolution up to 4K30
· Transmission distance up to 70/100m 220/330ft(1080P60) or 35/70m 110/220ft(4K30)
· Supports bi-directional IR
· Supports PC software preset via RS232
· Supports POC(power over Cable)
· Supports switch buttons, RS232, touch switch and automatic switch, LED working indicator
| Tyoe | HDBT-WALL-HDVP-70/100T-M | |
| Input | 1×HDMI, 1×DP, 1×DP,1×VGA,1×3.5mm Audio,1×RS232 | |
| Output | 1×HDBaseT | |
| Standard Protocol | Supports HDMI1.4 and HDCP1.4 | |
| Resolution | Up to 4K60Hz(4:2:0) | |
| Control |
1×RS232, push buttons, auto detection/switch |
|
| Distance | 70/100m(220/330feet) at 1080P ; 35/70m(110/220feet) at 4K60（4:2:0) over single Cat6/6a/7 cable | |
| Dimension |
US Panel size:115*140*40mm/ 4.52*5.51*1.57inch UK Panel size:88*88*40mm/3.46*3.46*1.57inch |
|
| Weight | 100g/0.22lbs | |
| Power Supply | AC：100-240V 50/60Hz 1.5A Max DC：12V 1500mA | |
| Power consumption | ≤12W | |
| Working Temperature | 0℃-50℃ | |
| Storage Temperature | ﹣20℃-55℃ | |
No.
Name
Qty
Unit
1
HDBT-WALL-HDV-70/100T
1
Pcs.
2
DC 12V2A power adapter
1
Pcs
