HDMI 4K60 seamless switcher 5x1 w/ IR Remote and Audio out

SW-HDV-51 is a high performance 4K presentation switcher with scaling function, it provides users 5 inputs(1*DP, 3*HDMI and 1*VGA+3.5) and 1 output(1*HDMI+3.5), with the front buttons, users can do the sources switching, and also resolution selection, maximum the output resolution can up to 4K60Hz or down to 720P. It also supports remote control.

inquiry

HDMI 4K60 seamless switcher 5x1 Introduction

SW-HDV-51 is a high performance 4K presentation switcher with scaling function, it provides users 5 inputs(1*DP, 3*HDMI and 1*VGA+3.5) and 1 output(1*HDMI+3.5), with the front buttons, users can do the sources switching, and also resolution selection, maximum the output resolution can up to 4K60Hz or down to 720P. It also supports remote control.

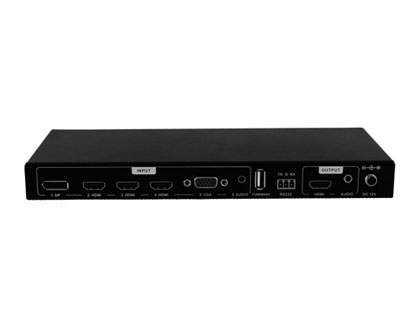

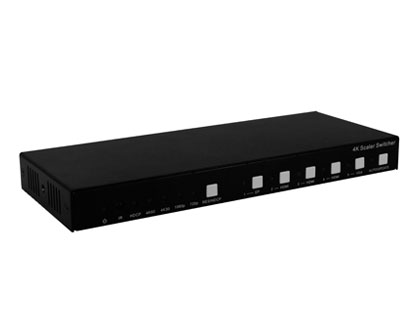

HDMI 4K60 seamless switcher 5x1 pictures

  • 4K60-5x1-presentation-switcher-with-scaling
  • 5-inputs-4k60-scaler-switcher-with-3.5mm-audio-output+1-HDMI
  • 4K60-5x1-presentation-switcher-support-DP1.2-HDMI-2.0-HDCP2.2--5-inputs
  • VGA-input-1080P-Presentation-scaler-switcher-with-3.5mm-audio-output



  • HDMI 4K60 seamless switcher 5x1 Features

    · Supports 1*DP, 3*HDMI, 1*VGA+3.5mm audio inputs

    · Supports 1*HDMI+3.5mm audio output

    · Supports scaling function

    · Supports maximum resolution up to 4K@60Hz

    · Remote control or front buttons fast switching

    · DP1.2, HDMI2.0/1.4, HDCP2.2/1.4 compliant

    · Visual LED status indicators

    HDMI 4K60 seamless switcher 5x1 Technical Parameters

    Tyoe SW-HDV-51
    Description 5x1 4K60 Presentation scaler switcher
    Input 1*DP, 3*HDMI,1*VGA+3.5mm audio
    Output signals 1*HDMI+3.5mm audio
    Protocol DP1.2, HDMI2.0, HDCP2.2
    Resolution Up to 4K@60Hz
    Control     Front push button, RS232, Remote control
    Dimension 250*100*26(mm)/ 9.84*3.93*1.02 inch
    Weight 1kg/2.20lbs
    Power Supply DC:12V 1A
    Working Temperature 0℃-50℃
    Storage Temperature ﹣20℃-55℃

    HDMI 4K60 seamless switcher 5x1 Connection diagram

    4K60-5x1-presentation-switcher-with-scaling-Connection-diagram
