The AV over IP system encoder(IPM-900T) and AV over IP decoder(IPM-900R) can work together to provide complete end-to-end streaming system or it can work with the network switch to realize a one to many, many to one and many to many systems.

inquiry

Product details

AV KVM Over IP Decoder Demo Video

AV KVM over IP Encoder Introduction

The AV KVM over IP system encoder(IPM-900T) and AV over IP system decoder(IPM-900R) can work together to provide complete end-to-end streaming system or AV over IP system can work with the network switch to realize a one to many, many to one and many to many systems. AV KVM over IP Encoder can transmit the video, audio and RS232 signals together or separately over single LAN cable, with the POE function, the Rx and Tx can be powered by POE from a POE network switch, AV KVM over IP Encoder it helps to make the installation more clean and professional. Except working as the matrix switch and distribution systems, AV over IP system also supports the video wall function with maximum configuration of 16x16 Video wall. The resolution of AV over IP system can up to 1920x 1080@60Hz.

AV over IP system can support friendly-user control options, including RS232, IP control box, PC software, iPad APP control with Source&Videowall preview function. The AV over IP system decoder also support the CEC/RS232 function to power on and off displays.

AV over IP system can be popularly used in the hospital, school, shopping mall, hotels, command center and corporate training etc.

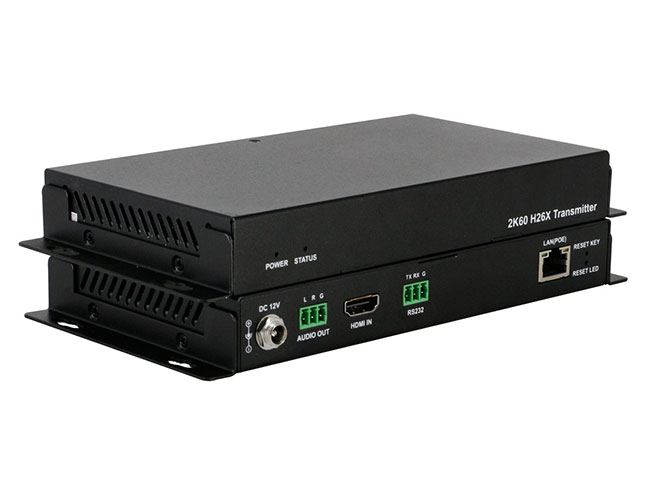

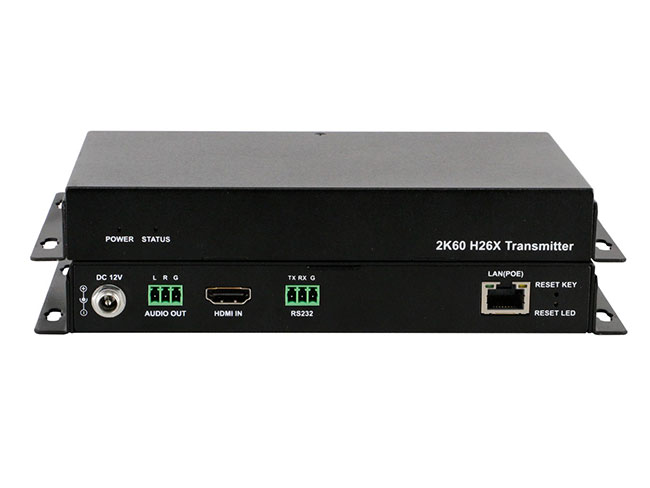

AV KVM over IP Encoder Pictures

AV over IP Encoders HD Extender KVM over IP matrix Video Wall

AV KVM over IP Encoder Features

·Transmits the HD over IP

·The resolution can up to 1920 x 1080@60Hz.

·Auto scaling function from 480p@60Hz to 1080@60Hz

·One push-key to read the IP address of each unit

·50 points in total of the Rx plus Tx(Unicast version)

·Supports sources and TV Wall and sources preview functions on an iPad APP

·Featured video wall up to the configuration of 7x 7 video wall

·No need the IP control box (IPM-MG)

·Supports firmware upgrade online

·Supports 3-pin audio de-embedded function on both of the Tx and Rx

·Allows video, audio and RS232 signals to be routed together or separately.

·Supports EDID importing to encoder and export from display to decoder.

·Supports CEC/RS232 function to power on and off the display.

·HDCP compliant, HDCP1.4, HD1.3

·Supports seamless switch with no black/blue screen while sources switching

·Supports POE function or use the DC power adapter

·Supports Auto IP(zeroconf), dynamic IP or static IP address settings

·Supports communications protocols such as H.264/ H.265, TCP/IP, Telnet, UDP and IGMP

AV KVM over IP Encoder Packing List

AV KVM over IP Encoder x1

Power Supply 12V x1

AV KVM over IP Encoder Technical Parameters

Tyoe	IPM-900T
Description	AV KVM over IP system(HD Over IP Matrix) unlimited numbers

Encoder

Video
Input Video Port	1 x HD
Input Video Type	HD 1.3, HDCP 1.4
Input Resolution	640 x 480@60Hz, 480p@60Hz，576i@50Hz, 576P@50Hz, 800 x 600@60Hz, 1024 x 768@60Hz, 720p@50Hz, 720p@60Hz, 1280 x 800@60Hz, 1280 x 1024@60Hz, 1360 x 768@60Hz, 1366 x 768@60Hz, 1400 x 1050@60Hz, 1440 x 900@60Hz, 1680 x 1050@60Hz, 1920 x 540@60Hz, 1080i@50Hz, 1080i@60Hz, 1080p@50Hz, 1080p@60Hz
Input Video Signal	0.5~1.2 V p-p
Encoding Data Rate	Up to 30 Mbps, configurable
Output Video Port	1 x LAN
Output Video Type	H.264/ H265 /MPEG-4 AVC
Output Resolution	From 480p@60Hz to 1920 x 1080@60Hz
Video Impendence	100 Ω
Input DDC Signal	5 V p-p (TTL)
End-to-End Time Latency	When works with decoder: · About 50 ms (Low latency mode) · About 250 ms (High quality mode)
Audio
Input Audio Port	1 x HD
Input Audio Format	LPCM 2.0
Output Audio Port	1 x 3-pin Phoenix connector
Output Audio Format	Stereo
Control
Control Method	iPad APP
General
Operating Temperature	+32°F ~ +113°F (0°C ~ +45°C) 10% ~ 90%, non-condensing
Storage Temperature	-4°F ~ 140°F (-20°C ~ +70°C) 10% ~ 90%, non-condensing
Power Supply	12 V 1 A DC
Power Consumption	6W (Max.)
ESD Protection	Human body model: · ±8kV (air-gap discharge) · ±4kV (contact discharge)
Surge Protection	Voltage: ±1 kV
Product Dimensions (W x H x D)	175 mm x 25 mm x 100.2 mm / 6.9'' x 0.98'' x 3.9''
Net Weight	0.60kg / 1.32lb
