4K Ultra HD KVM&USB over IP Extender

We are honored for your purchasing of our products. In order to have the best performance of the products, please read the user manual carefully before using them. Hope this user manual can bring more convenience, and please don’t hesitate to get in touch with us or your local dealer if you have any issue during your usage.

inquiry

Introduction

KVM &USB over IP Extender uses Gigabit IP network technology to process and distribute 4K ultra-high-definition video signals, and at the same time send the mouse and keyboard control signals from the receiver to the transmitter to realize the KVM extension function.

KVM & USB extension Supports point-to-point/1TX to multipleRX over gigabit PoE switch , and can also support multi-slave control of a host's networking. This product can extend the KVM and USB signal transmission distance to 20 kilometers through the cascaded network extension of multi-level switches.

KVM over IP extender Resolution supports 4K@30Hz 4:4:4, Ultra HD is completely lossless, low latency, support full-format HDMI audio, fully meet the audio-visual needs of high-end customers. Gigabit switch is recommended.

This product can also be customized to support the transmission of serial signals, infrared signals, and audio signals to meet the needs of customers with various complex networking and combined functions.

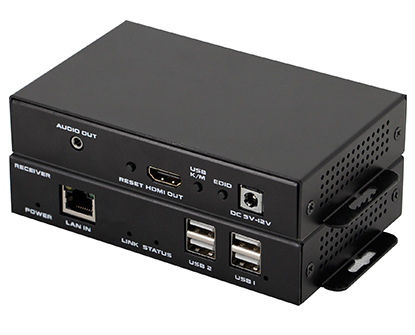

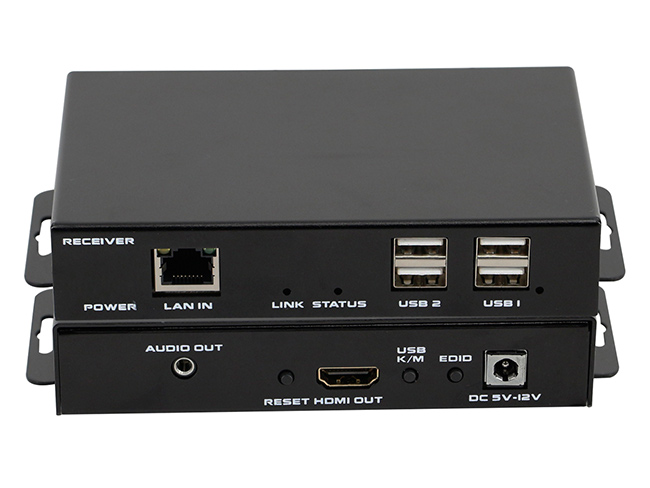

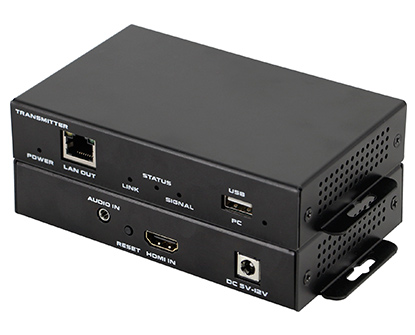

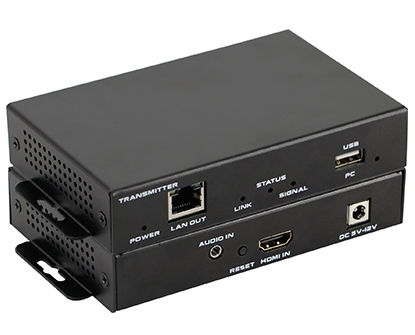

Real shot products

4K Ultra HD KVM&USB over IP Extender
4K Ultra HD KVM&USB over IP Extender
4K Ultra HD KVM&USB over IP Extender
4K Ultra HD KVM&USB over IP Extender

Features

· KVM over IP extender resolution support maximum 4K@30Hz 4:4:4, Ultra HD is completely lossless

· Ultralow latency <50ms

· Support mouse and keyboard signal extension

· Support full function USB signal extension

· Support HDMI audio 2CH / 5.1CH / 7.1CH / DTS / Dolby format

· Support PoE power supply (802.3AF) , easy for construction and strong system robustness

· KVM and USB extension Supports point-to-point/1TX to 253RX over gigabit PoE switch

· SPoint-to-point transmission up to 100M

Technical Parameters

Data Instruction
Power PoE(802.3AF) or 12V1A DC
HDMI HDMI1.4, HDCP
HDMI audio format 2ch/5.1ch/7.1ch/DTS/Dolby
Ethernet Interface RJ45 Gigabit Ethernet interface
USB Interface Receiver full function USB2.0 * 4
External Audio Interface 3.5mm
Resolution Support 4K@30Hz
1080p@60Hz / 1080p@50Hz / 1080p@30Hz
720p@50Hz / 720p@60Hz / 480p@60Hz
USB interface support device USB2.0 peripheral
Operating mode Point-to-point / point-to-multipoint /
Transmission distance Point-to-point:up to 100m through CAT5e/CAT6
cascade:distance up to 20 kilometers
Operation Temperature 0°C - 40°C
Working Humidity 20% ~ 90% RH(Non-condensing)

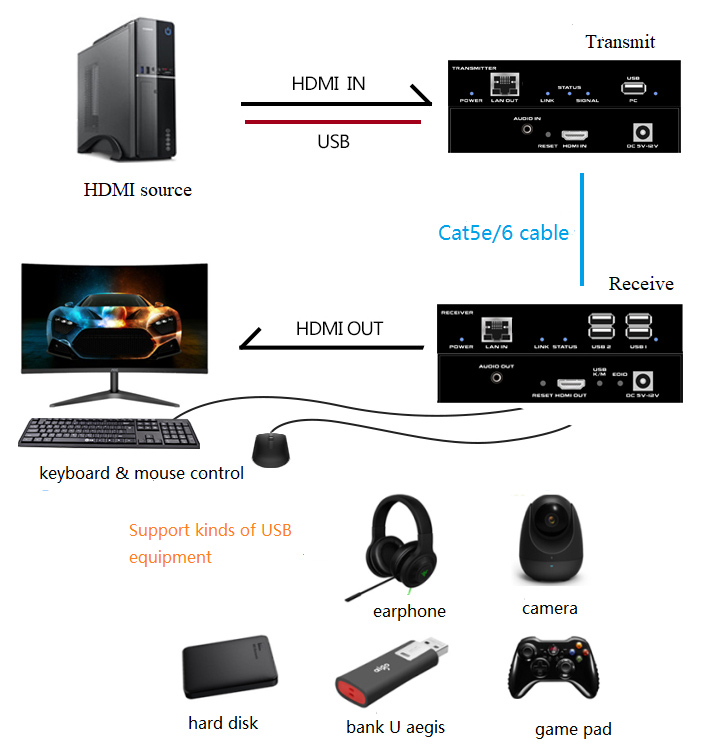

Connection diagram

Point-to-point extension

Point-to-point extension
