4K60 HDMI Extender Loop Transmitter and receiver PoC RS232 HDR10

4K60 HDMI Extender w/Loop is a UHDT HDMI Extender which support the 4K60 444 HDMI signals transmission over single Cat 6/7 cable, the distance can up to 70m/220ft for 4k60(4:4:4), for 1080P60 can up to 100m/330ft.

inquiry

4K60 HDMI Poc Extender w/Loop Introduction

4K60 HDMI Extender w/Loop is a UHDT HDMI Extender which support the 4K60 444 HDMI signals transmission over single Cat 6/7 cable, the distance can up to 70m/220ft for 4k60(4:4:4), for 1080P60 can up to 100m/330ft. 4K60 HDMI Extender w/Loop supports HDMI loop out on the transmitter and the DIP switch for transmitting the RS232 or the bi-directional IR, with the POC function, users will only need to use the power adapter to power on either side. 4K60 HDMI Poc Extender w/Loop can be used for home theater, church, exhibition and so on ultra resolution requirement applications.

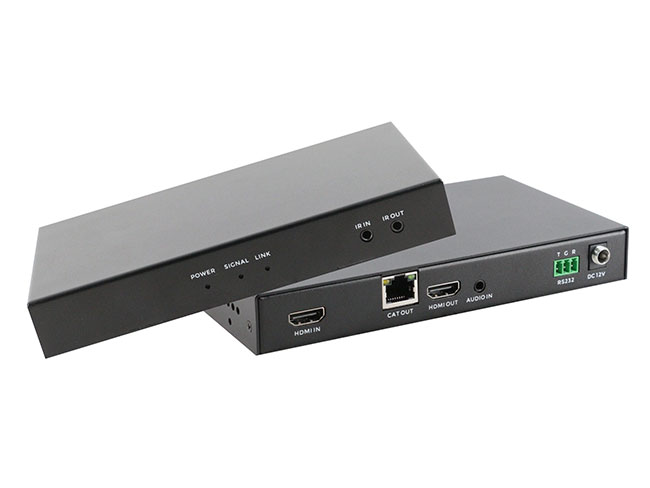

4K60 HDMI Poc Extender w/Loop pictures

  • 1-1
  • 2-2
  • 3
  • 4-4



  • 4K60 HDMI Poc Extender w/Loop Features

    · Supports HDMI loop out on the transmitter

    · Supports a DIP switch to user RS232 or the bi-directional IR

    · The resolution up to 4K60 4:4:4, 18GBPS

    · Distance can up to 70m/220ft at 4K604:4:4 or 100m/330ft for 1080P@60Hz

    · Supports HDMI2.0, HDCP2.2, HDR10

    · POC function

    4K60 HDMI Poc Extender w/Loop Technical Parameters

    Tyoe UHDT-4K60-70/100T UHDT-4K60-70/100R
    Discription     UHDT 4K60 HDMI Transmitter HDT 4K60 HDMI Receiver
    Input 1×HDMI, 1×IR 1×CAT,1×IR
    Output 1×HDMI loop,1×CAT, 1×IR 1×HDMI, 1×IR
    Protocol HDMI2.0, HDCP2.2,
    Resolution Up to 4K@60Hz(4:4:4)
    Bandwidth 18Gbps
    Distance 200x72x27(mm)/7.87x2.83x1.06(inch)
    Weight 400g(Tx/Rx) 0.88lbs
    Power Supply AC:110-240V 50/60Hz 1.5A Max  DC:12V 1500mA
    Power consumption 1.8W
    Working Temperature 0℃-50℃
    Storage Temperature ﹣20℃-55℃


    4K60 HDMI Poc Extender w/Loop Packing list

    No.

    Name

    Qty

    Unit

    1

    UHDT-4K60-70/100TR

    1

    Pcs.

    2

    DC 12V2A power adapter

    1

    Pcs

    3

    IR Remote(without battery)

    1

    Pcs


    4K60 HDMI Poc Extender w/Loop Connection diagram

    9
